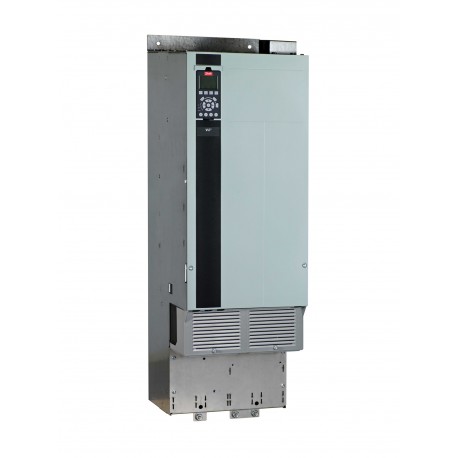

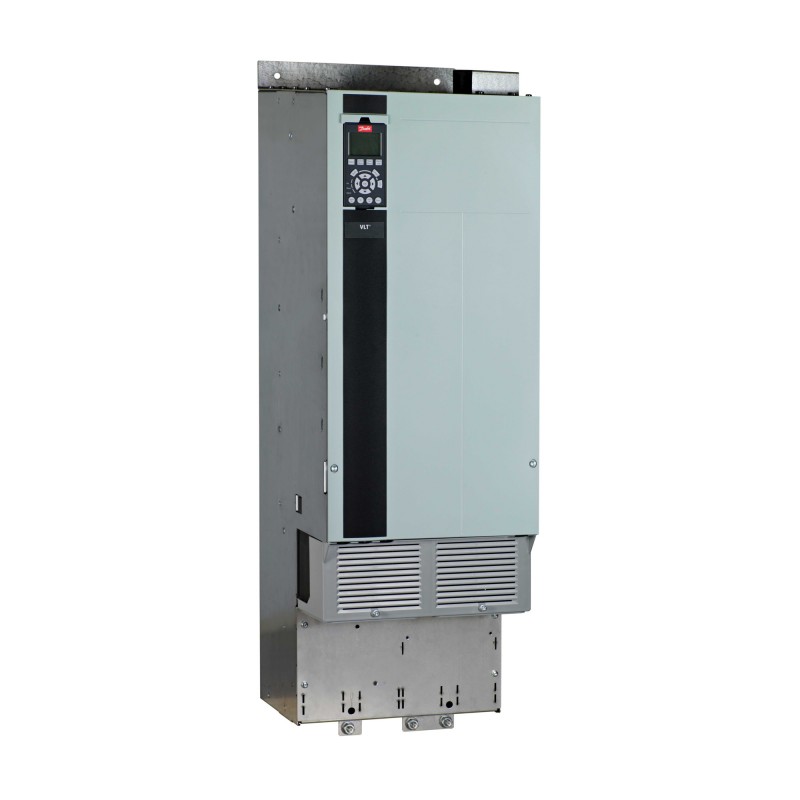

134H9822 DANFOSS DRIVES VLT AQUA Drive FC 202
134H9822
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202N315T7C20H2XGCXXXSXXXXA0BKCXXXXD0 VLT® AQUA Drive FC-202(N315) 315 KW / 450 HP, Specific Ratings: 250kW@525- 550V, 350HP@575V, 315kW@690VThree phase, 525 - 690 VAC *, (C20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D4HPROFIBUS DP MCA 101, MCB-101 General purp. I/ONo C1 option, MCB-107 24V DC backupOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202N315T7C20H2XGCXXXSXXXXA0BKCXXXXD0
VLT® AQUA Drive FC-202
(N315) 315 KW / 450 HP, Specific Ratings: 250kW@525- 550V, 350HP@575V, 315kW@690V
Three phase, 525 - 690 VAC *, (C20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: D4H
PROFIBUS DP MCA 101, MCB-101 General purp. I/O
No C1 option, MCB-107 24V DC backup
Other options according to Model code
Product details
| Gross weight | 125.3 Kilogram | ||
| Net weight | 125 Kilogram | ||
| EAN | 5710107749690 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | N315 | (N315) 315 KW / 450 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | C20 | (C20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | D4H | D4H | |
| Typecode Part 1 | FC-202N315T7C20H2XGC | ||
| Typecode Part 2 | XXXSXXXXA0BKCXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Variant condition (ref. YV00) | 202_3N 60691 7 A_OPT_FC-202N315T7A0 BR_FC-202N315T7X BR_FC-202N315T7XH2 B_OPT_FC-202N315T7BK C0_OPT_FC-202N315T7CX C1_OPT_FC-202N315T7X COT_FC-202N315T7C C_OPT_FC-202N315T7XX D_OPT_FC-202N315T7D0 ECL_FC-202N315T7C20 ECL_FC-202N315T7C20H2 FC-202 FC-202N315T7 FRAME_D4H HDW21_FC-202N315T7X HDW21_FC-202N315T7XH2 HDW22_FC-202N315T7X HDW22_FC-202N315T7XH2 HDW23_FC-202N315T7X HDW23_FC-202N315T7XH2 IN_POWER_GROUP_3 LCP_FC-202N315T7G N315 POWER_GROUP_3 RFI_FC-202N315T7H2 RU_POWER_GROUP_3 SV_FC-202N315T7SXXX SV_FC-202SXXX SV_FC-202SXXXD4H VLT | ||
| Variant condition (Purch) | 202_3N 60691 7 A_OPT_FC-202N315T7A0 BR_FC-202N315T7X BR_FC-202N315T7XH2 B_OPT_FC-202N315T7BK C0_OPT_FC-202N315T7CX C1_OPT_FC-202N315T7X COT_FC-202N315T7C C_OPT_FC-202N315T7XX D_OPT_FC-202N315T7D0 ECL_FC-202N315T7C20 ECL_FC-202N315T7C20H2 FC-202 FC-202N315T7 FRAME_D4H HDW21_FC-202N315T7X HDW21_FC-202N315T7XH2 HDW22_FC-202N315T7X HDW22_FC-202N315T7XH2 HDW23_FC-202N315T7X HDW23_FC-202N315T7XH2 IN_POWER_GROUP_3 LCP_FC-202N315T7G N315 POWER_GROUP_3 RFI_FC-202N315T7H2 RU_POWER_GROUP_3 SV_FC-202N315T7SXXX SV_FC-202SXXX SV_FC-202SXXXD4H VLT | ||
| Power 150% (HO) [KW] | 250 | 250 | |
| Power 110% (NO) [KW] | 315 | 315 | |
| Height [mm] | 1122,0 | 1122,0 | |
| Height w/ Regen/Loadshare [mm] | 1268,0 | 1268,0 | |
| Width w/ no C options [mm] | 350,0 | 350,0 | |
| Depth [mm] | 375,0 | 375,0 | |
| Depth with Option A/B [mm] | 375,0 | 375,0 | |
| kVA | 411 | 411 | |
| Power Loss NO [W] | 4465 | 4465 | |
| Power Loss NO [W] | 4614 | 4614 | |
| Power Loss HO [W] | 3642 | 3642 | |
| Power Loss HO [W] | 3771 | 3771 | |
| Continuous Current (NO) [A] | 360 | 360 | |
| Intermittent Current (NO) [A] | 396 | 396 | |
| Continuous Current (NO) [A] | 344 | 344 | |
| Intermittent Current (NO) [A] | 378 | 378 | |
| Continuous Current (HO) [A] | 303 | 303 | |
| Intermittent Current (HO) [A] | 454 | 454 | |
| Continuous Current (HO) [A] | 290 | 290 | |
| Intermittent Current (HO) [A] | 435 | 435 | |
| Power Rating at 525-550V | 250kW | 250kW | |
| Power Rating at 575V | 350HP | 350HP | |
| Power Rating at 690V | 315kW | 315kW | |
| Calculated Gross Weight [kg] | 125.3 | ||
| Calculated Net Weight [kg] | 125 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202N315T7C20H2XGC | ||
| Modelcode02 | XXXSXXXXA0BKCXXXXD0 | ||
| Recommended Plant | ERR01 | ERR01 |
