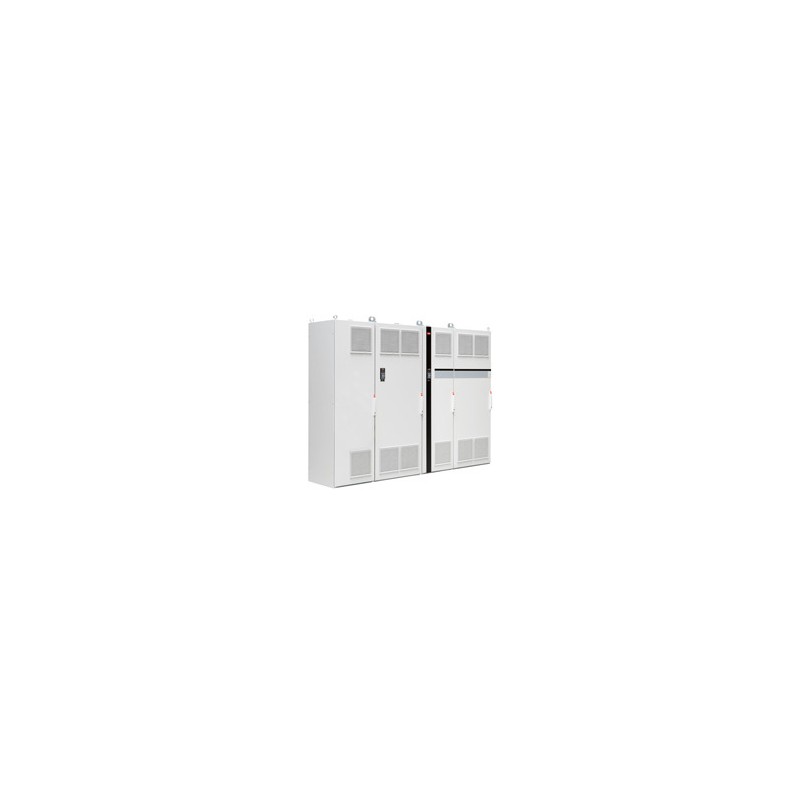

134G6057 DANFOSS DRIVES VLT AQUA Drive FC 202
134G6057
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converter. FC-202P560T4E21N4XGCXXXSXXXXAXBXCXXXXDX. VLT® AQUA Drive FC-202. (P560) 560 KW / 750 HP, Three phase. 380 - 480 VAC, IP21 / Type 1. LHD - AAF006 filter + A1 RFI. No brake chopper. Graphical Loc. Cont. Panel. Coated PCB, No Mains Option. Latest release std. SW.. Frame: F18. No C1 option, No D option. No A Option, No B Option. Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 1899.3 kg | ||
| Net weight | 1899 kg | ||
| Volume | 0 l | ||
| EAN | 5710107564033 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P560 | (P560) 560 KW / 750 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E21 | IP21 / Type 1 | |
| RFI Filter | N4 | LHD - AAF006 filter + A1 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | F18 | F18 | |
| Typecode Part 1 | FC-202P560T4E21N4XGC | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 500 | ||
| Power 110% (NO) [KW] | 560 | ||
| kVA | 686 | ||
| Power Loss NO [W] | 24592 | ||
| Power Loss NO [W] | 22353 | ||
| Continuous Current (NO) [A] | 990 | ||
| Intermittent Current (NO) [A] | 1089 | ||
| Continuous Current (NO) [A] | 890 | ||
| Intermittent Current (NO) [A] | 979 | ||
| Continuous Current (HO) [A] | 880 | ||
| Intermittent Current (HO) [A] | 1320 | ||
| Continuous Current (HO) [A] | 780 | ||
| Intermittent Current (HO) [A] | 1170 | ||
| Calculated Gross Weight [kg] | 1899.3 | ||
| Calculated Net Weight [kg] | 1899 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P560T4E21N4XGC | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 |
