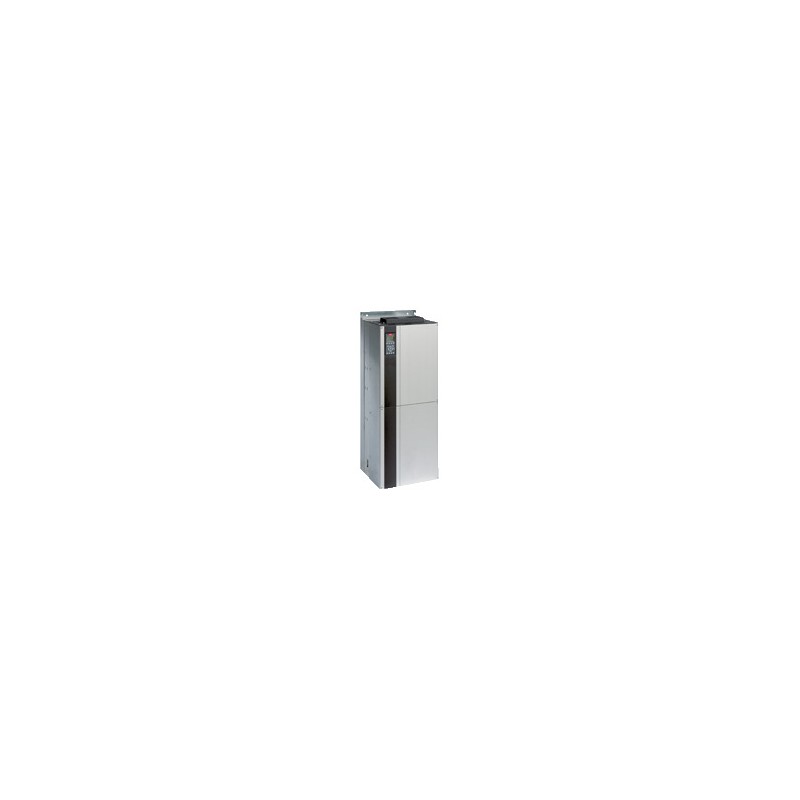

134G4321 DANFOSS DRIVES VLT AQUA Drive FC 202
134G4321
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converter. FC-202P90KT7E0DH2XGCXXXSXXXXAXB0CXXXXDX. VLT® AQUA Drive FC-202. (P90K) 90 KW / 125 HP, Three phase. 525 - 690 VAC *, IP00 / Chassis D3 Frame. RFI Filter. No brake chopper. Graphical Loc. Cont. Panel. Coated PCB, No Mains Option. Latest release std. SW.. Frame: D3. No C1 option, No D option. No A Option, MCB-109 I/O, RTC Back-up. Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 103 kg | ||
| Net weight | 84 kg | ||
| Volume | 0 l | ||
| EAN | 5710107546268 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P90K | (P90K) 90 KW / 125 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E0D | IP00 / Chassis D3 Frame | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | B0 | MCB-109 I/O, RTC Back-up | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | D3 | D3 | |
| Typecode Part 1 | FC-202P90KT7E0DH2XGC | ||
| Typecode Part 2 | XXXSXXXXAXB0CXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 75 | ||
| Power 110% (NO) [KW] | 90 | ||
| kVA | 120 | ||
| Power Loss NO [W] | 1800 | ||
| Power Loss NO [W] | 1800 | ||
| Power Loss HO [W] | 1500 | ||
| Power Loss HO [W] | 1500 | ||
| Continuous Current (NO) [A] | 105 | ||
| Intermittent Current (NO) [A] | 116 | ||
| Continuous Current (NO) [A] | 100 | ||
| Intermittent Current (NO) [A] | 110 | ||
| Continuous Current (HO) [A] | 87 | ||
| Intermittent Current (HO) [A] | 130 | ||
| Continuous Current (HO) [A] | 83 | ||
| Intermittent Current (HO) [A] | 124 | ||
| Calculated Gross Weight [kg] | 0 | ||
| Calculated Net Weight [kg] | 0 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P90KT7E0DH2XGC | ||
| Modelcode02 | XXXSXXXXAXB0CXXXXDX | ||
| Recommended Plant | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 1 Mbytes |
|
