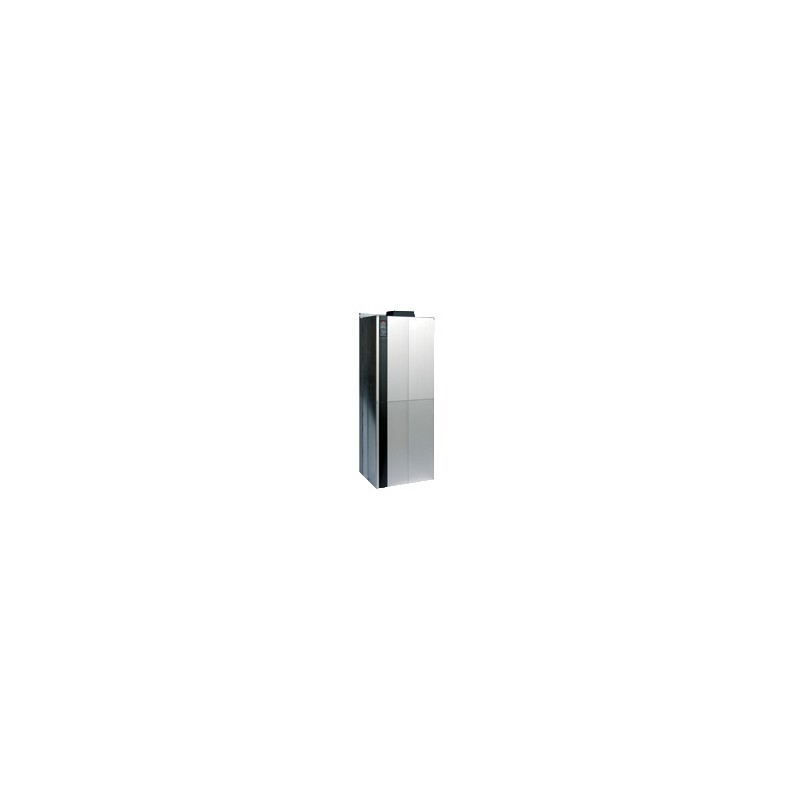

134G1835 DANFOSS DRIVES VLT AQUA Drive FC 202
134G1835
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converter. FC-202P630T7E00H2XGCXXXSXXXXA0BXCXXXXDX. VLT® AQUA Drive FC-202. (P630) 630 KW / 900 HP, Three phase. 525 - 690 VAC *, (E00) IP00 / Chassis. RFI Filter. No brake chopper. Graphical Loc. Cont. Panel. Coated PCB, No Mains Option. Latest release std. SW.. Frame: E2. No C1 option, No D option. PROFIBUS DP MCA 101, No B Option. Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 277.3 kg | ||
| Net weight | 277 kg | ||
| Volume | 0 l | ||
| EAN | 5710107521258 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P630 | (P630) 630 KW / 900 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E00 | (E00) IP00 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | E2 | E2 | |
| Typecode Part 1 | FC-202P630T7E00H2XGC | ||
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 560 | ||
| Power 110% (NO) [KW] | 630 | ||
| kVA | 753 | ||
| Power Loss NO [W] | 8209 | ||
| Power Loss NO [W] | 8495 | ||
| Power Loss HO [W] | 7383 | ||
| Power Loss HO [W] | 7633 | ||
| Continuous Current (NO) [A] | 630 | ||
| Intermittent Current (NO) [A] | 693 | ||
| Continuous Current (NO) [A] | 630 | ||
| Intermittent Current (NO) [A] | 693 | ||
| Continuous Current (HO) [A] | 596 | ||
| Intermittent Current (HO) [A] | 894 | ||
| Continuous Current (HO) [A] | 570 | ||
| Intermittent Current (HO) [A] | 855 | ||
| Calculated Gross Weight [kg] | 277.3 | ||
| Calculated Net Weight [kg] | 277 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P630T7E00H2XGC | ||
| Modelcode02 | XXXSXXXXA0BXCXXXXDX | ||
| Recommended Plant | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 1 Mbytes |
|
