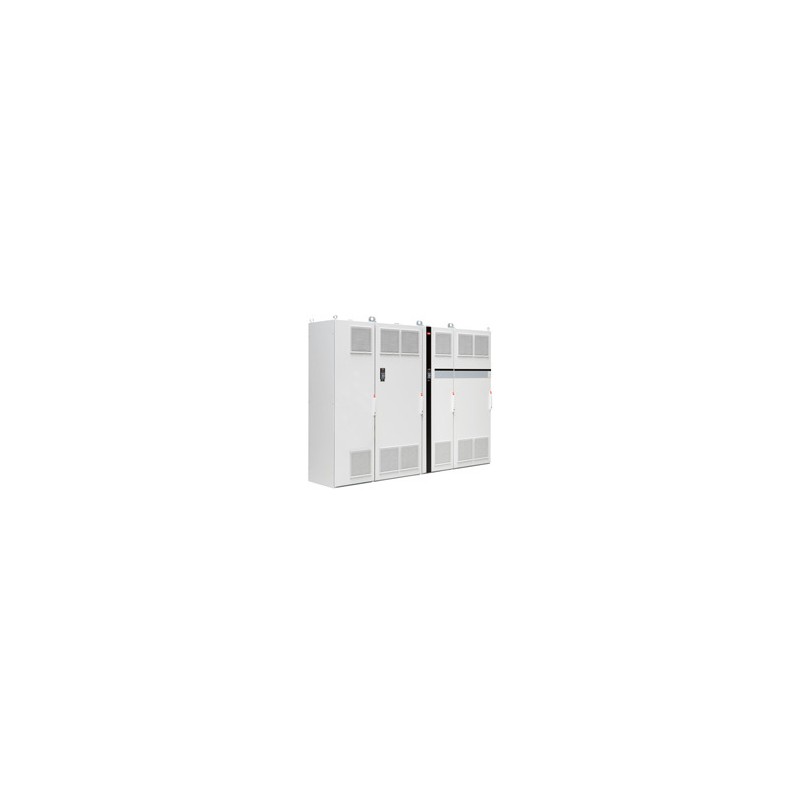

134F5019 DANFOSS DRIVES VLT AQUA Drive FC 202
134F5019
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P630T4E54N4XGCXXXSXXXXAXBYCXXXXD0 VLT® AQUA Drive FC-202(P630) 630 KW / 900 HP, Three phase, 380 - 480 VAC, (E54) IP54 / Type 12LHD - AAF006 filter + A1 RFINo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: F18No A Option, MCO-101 Ext. Cascade CtrlNo C1 option, MCB-107 24V DC backupOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P630T4E54N4XGCXXXSXXXXAXBYCXXXXD0
VLT® AQUA Drive FC-202
(P630) 630 KW / 900 HP,
Three phase, 380 - 480 VAC, (E54) IP54 / Type 12
LHD - AAF006 filter + A1 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: F18
No A Option, MCO-101 Ext. Cascade Ctrl
No C1 option, MCB-107 24V DC backup
Other options according to Model code
Product details
| Gross weight | 1899.3 Kilogram | ||
| Net weight | 1899 Kilogram | ||
| EAN | 5710107448753 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P630 | (P630) 630 KW / 900 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E54 | (E54) IP54 / Type 12 | |
| RFI Filter | N4 | LHD - AAF006 filter + A1 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BY | MCO-101 Ext. Cascade Ctrl | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | F18 | F18 | |
| Typecode Part 1 | FC-202P630T4E54N4XGC | ||
| Typecode Part 2 | XXXSXXXXAXBYCXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Height [mm] | 2277,0 | 2277,0 | |
| Width w/ no C options [mm] | 2802,0 | 2802,0 | |
| Depth [mm] | 607,0 | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | 607,0 | |
| Power Loss NO [W] | 26640 | 26640 | |
| Power Loss NO [W] | 25030 | 25030 | |
| Calculated Gross Weight [kg] | 1899.3 | ||
| Calculated Net Weight [kg] | 1899 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P630T4E54N4XGC | ||
| Modelcode02 | XXXSXXXXAXBYCXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 | |
| NB: F-frame platform available | UNTIL DECEMBER 31, 2025 | UNTIL DECEMBER 31, 2025 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
