DANFOSS DRIVESOPTIONS AND ACCESSORIES FC302 FC202 FC102 - DANFOSS DRIVES134B9411 Wall Sensor AFTF Temp & Humidity DANFOSS DRIVES Wall Sensor AFTF Temp & Humidity

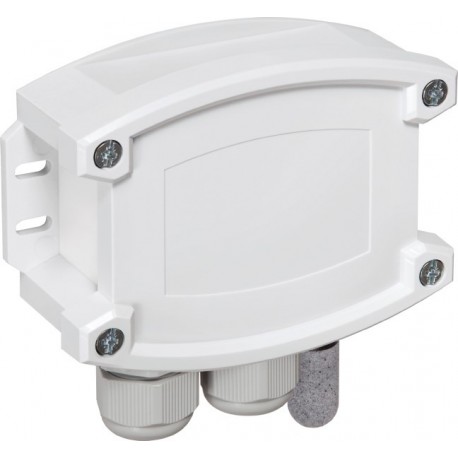

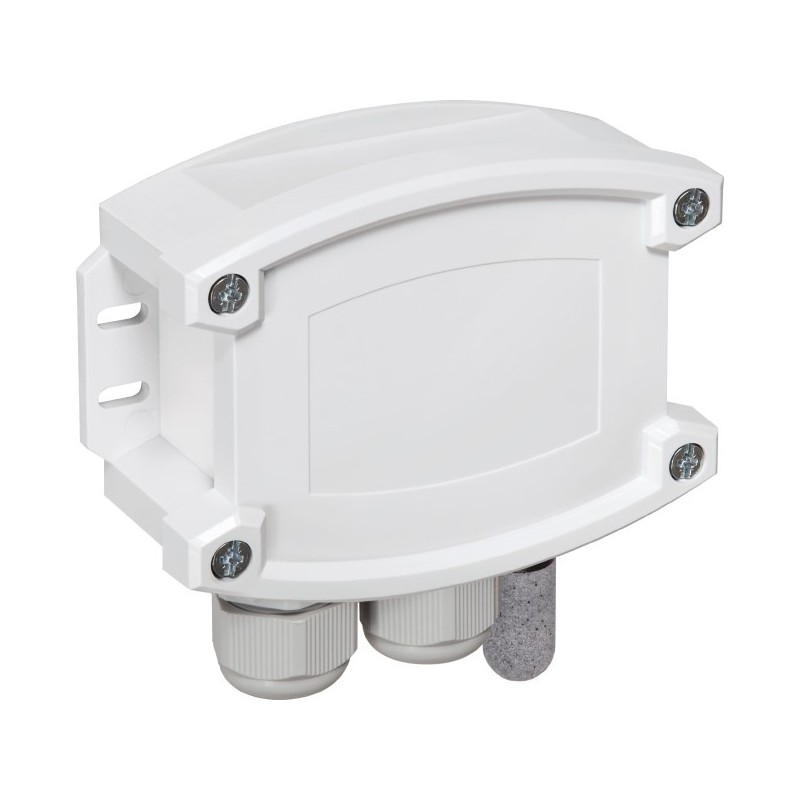

DANFOSS DRIVES 134B9411 Wall Sensor AFTF Temp & Humidity - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

134B9411 Wall Sensor AFTF Temp & Humidity DANFOSS DRIVES Wall Sensor AFTF Temp & Humidity

Code: 134B9411

Catalog Number: Wall Sensor AFTF Temp & Humidity

Manufacturer: DANFOSS DRIVES

Description:

Wall Sensor AFTF Temp & Humidity
ON-WALL- HUMIDITY- AND TEMPERATURE SENSORS AFTF–MBCalibratable outside humidity and temperature sensor AFTF, detect therelative humidity (0…100% RH) and the temperature (–35...+80 °C),including various parameters in the humidity measurement. Applied inclean air and non-aggressive, dust-free environment. With a Modbusconnection in a resistant IP65 plastic housing and M20 cable gland forcable connection, with quick-locking screws and an exchangeable plasticsinter filter. International SI units (default) can be changed toimperial (via Modbus).Measuring range: 0...100 % RH (humidity) / – 35...+80 °C (temperature)Medium: clean air and non-aggressive, non-combustible gasesDeviation, humidity: typical ± 2.0 % (20.....+70 °C / –22...5 x 43.25 x 3.

Categories:

  • DANFOSS DRIVES > OPTIONS AND ACCESSORIES FC302 FC202 FC102 - DANFOSS DRIVES

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 156,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1-2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ON-WALL- HUMIDITY- AND TEMPERATURE SENSORS AFTF–MB
Calibratable outside humidity and temperature sensor AFTF, detect the
relative humidity (0…100% RH) and the temperature (–35...+80 °C),
including various parameters in the humidity measurement. Applied in
clean air and non-aggressive, dust-free environment. With a Modbus
connection in a resistant IP65 plastic housing and M20 cable gland for
cable connection, with quick-locking screws and an exchangeable plastic
sinter filter. International SI units (default) can be changed to
imperial (via Modbus).
Measuring range: 0...100 % RH (humidity) / – 35...+80 °C (temperature)
Medium: clean air and non-aggressive, non-combustible gases
Deviation, humidity: typical ± 2.0 % (20...80 % RH) at +25 °C, otherwise
± 3.0 %
Deviation, temperature: typical ± 0.4 K at +25 °C / ± 77 °F
Zero point offset: ± 10 % RH (humidity) / ± 5 °C (temperature)
Power: 24VAC (± 20%) / 15…36VDC - 24DC <1,2W
Operation temperature: –30...+70 °C / –22...+158 °F
T3-IP65 plastic housing with two M20 cable glands
Housing dimensions: 108 x 78.5 x 43.3 mm / 4.25 x 3.1 x 1.7 in

Product details

Gross weight0.255 Kilogram
Net weight0.166 Kilogram
Volume1.547 Liter
EAN5715253547091
Gross weight0.255 Kilogram
Net weight0.166 Kilogram
Volume1.547 Liter
EAN5715253547091

OptionsControl related options
