DANFOSS DRIVESOPTIONS AND ACCESSORIES FC302 FC202 FC102 - DANFOSS DRIVES134B9410 Wall Sensor ATM2 Temperature DANFOSS DRIVES Wall Sensor ATM2 Temperature

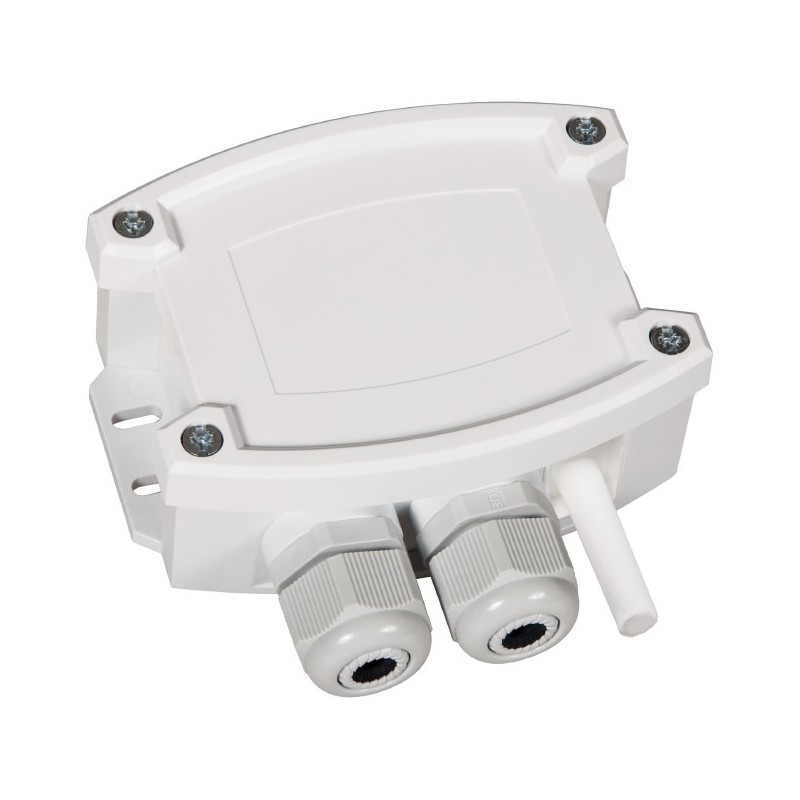

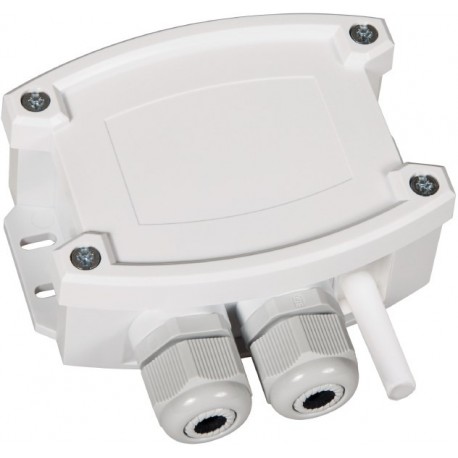

DANFOSS DRIVES 134B9410 Wall Sensor ATM2 Temperature - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

134B9410 Wall Sensor ATM2 Temperature DANFOSS DRIVES Wall Sensor ATM2 Temperature

Code: 134B9410

Catalog Number: Wall Sensor ATM2 Temperature

Manufacturer: DANFOSS DRIVES

Description:

Wall Sensor ATM2 Temperature
OUTSIDE / WET ROOM TEMPERATURE SENSOR ATM2-MBCalibratable outside temperature sensor ATM2, PT1000 measure temperature(-50...+150 °C), with Modbus RTU connection, in a resistant IP65 plastichousing with quick-locking screws and M20 cable gland for cableconnection. International SI units (default) can be changed to imperial(via Modbus).Sensor type: PT1000 class B (DIN EN 60751)Measuring range: – 50...+150°C /-31… +176°FDeviation: typical ± 0.2 K at +25 °C / ± 77 °FZero point offset: ± 10 °C / ± 50 °FAmbient temperature: Measuring transducer –30...+70 °C /-22… +158°FMedium: clean air and non-aggressive, non-combustible gasesPower: 24VAC (± 20%) / 15…36VDC - 24DC

Categories:

  • DANFOSS DRIVES > OPTIONS AND ACCESSORIES FC302 FC202 FC102 - DANFOSS DRIVES

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 126,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1-2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

OUTSIDE / WET ROOM TEMPERATURE SENSOR ATM2-MB
Calibratable outside temperature sensor ATM2, PT1000 measure temperature
(-50...+150 °C), with Modbus RTU connection, in a resistant IP65 plastic
housing with quick-locking screws and M20 cable gland for cable
connection. International SI units (default) can be changed to imperial
(via Modbus).
Sensor type: PT1000 class B (DIN EN 60751)
Measuring range: – 50...+150°C /-31… +176°F
Deviation: typical ± 0.2 K at +25 °C / ± 77 °F
Zero point offset: ± 10 °C / ± 50 °F
Ambient temperature: Measuring transducer –30...+70 °C /-22… +158°F
Medium: clean air and non-aggressive, non-combustible gases
Power: 24VAC (± 20%) / 15…36VDC - 24DC <1,2W
Operation temperature: –30...+70 °C / –22...+158 °F
T3-IP65 plastic housing with two M20 cable glands
Housing dimensions: 108 x 78.5 x 43.3 mm / 4.25 x 3.1 x 1.7 in

Product details

Gross weight0.245 Kilogram
Net weight0.16 Kilogram
Volume1.561 Liter
EAN5715253547077
Gross weight0.245 Kilogram
Net weight0.16 Kilogram
Volume1.561 Liter
EAN5715253547077

OptionsControl related options
OptionsControl related options

DATASHEET - PDF

Title
Size
Type
PDF SELECTION GUIDE FC102 2020 EN
46 Mbytes
PDF CATALOG DANFOSS GENERAL EN
2 Mbytes
