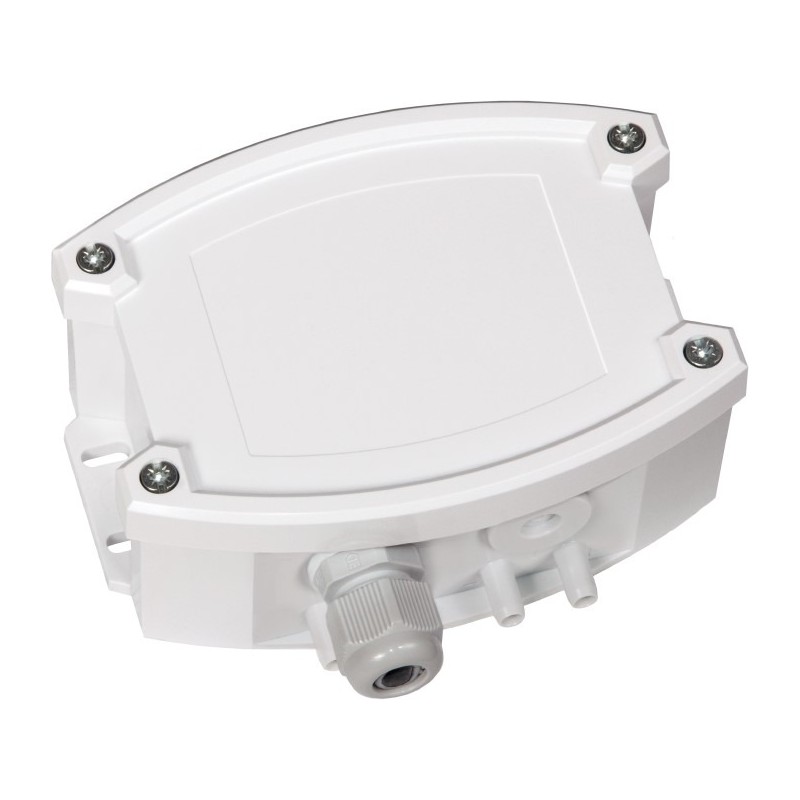

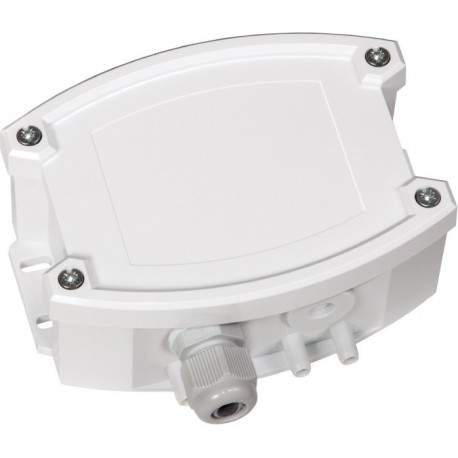

134B9405 Pressure Sensor 7229 500/7000Pa, Analog DANFOSS DRIVES Pressure Sensor 7229 500/7000Pa, Analog
134B9405
Pressure Sensor 7229 500/7000Pa, Analog
DANFOSS DRIVES
Pressure Sensor 7229 500/7000Pa, Analog
DUAL AIR PRESSURE SENSOR ±500PA ±7000PA, ANALOGUEDual pressure transmitter with 2x8 switchable measuring ranges and 2automated analogue output signals in a resistant IP65 plastic housingwith quick-locking screws, connection nozzles for pressure hose (Ø 6 mm)and a M16 cable gland for cable connection. The pressure measuringtransducer automatically detects the required output type and convertsthe measurands into the required standard signal of 0–10 V or 4...20 mA. ± 50 kPaPower: 24VAC/DC (± 10%) <1,3W,Output: automatically switching 0 -10 V # 4...20 mAWorking resistance: Ra (ohms) = 25...450 Ohm (at I output)Load resistance: RL > 15 kOhm (at U output)Operation / Media temperature: –20...+50 °C / –4...96 x 3.54 x 1.97 in.
OPTIONS AND ACCESSORIES FC302 FC202 FC102 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲DUAL AIR PRESSURE SENSOR ±500PA ±7000PA, ANALOGUE
Dual pressure transmitter with 2x8 switchable measuring ranges and 2
automated analogue output signals in a resistant IP65 plastic housing
with quick-locking screws, connection nozzles for pressure hose (Ø 6 mm)
and a M16 cable gland for cable connection. The pressure measuring
transducer automatically detects the required output type and converts
the measurands into the required standard signal of 0–10 V or 4...20 mA.
Pressure range selection: ± 500 Pa – 0…100Pa / 200Pa / 300Pa / 500Pa
Pressure range selection: ± 7000 Pa – 0…1000Pa / 2000Pa / 3000Pa /
5000Pa / 7000Pa
Accuracy: 500 Pa typical ± 13 Pa
Accuracy: 7000 Pa typical ± 105 Pa
Zero point offset: ± 10 % of measuring range
Above- # below-pressure: max. ± 50 kPa
Power: 24VAC/DC (± 10%) <1,3W,
Output: automatically switching 0 -10 V # 4...20 mA
Working resistance: Ra (ohms) = 25...450 Ohm (at I output)
Load resistance: RL > 15 kOhm (at U output)
Operation / Media temperature: –20...+50 °C / –4...+122 °F
T2-IP65 plastic housing with one M16 cable gland
Housing dimensions: 126 x 90 x 50 mm / 4.96 x 3.54 x 1.97 in
Product details
| Gross weight | 0.395 Kilogram |
| Net weight | 0.185 Kilogram |
| Volume | 2.604 Liter |
| EAN | 5715253547022 |
| Gross weight | 0.395 Kilogram |
| Net weight | 0.185 Kilogram |
| Volume | 2.604 Liter |
| EAN | 5715253547022 |
| Options | Control related options |
| Options | Control related options |
