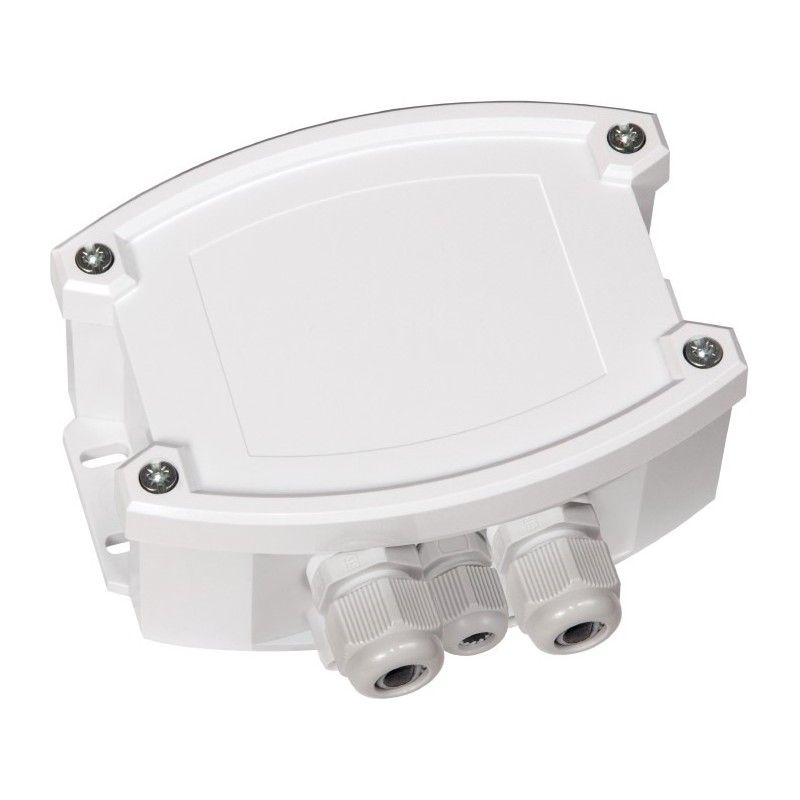

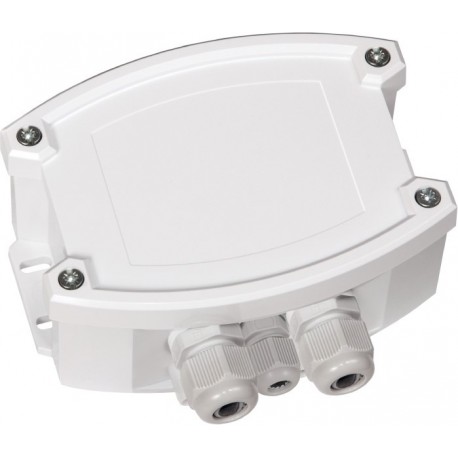

134B9402 Pressure Sensor 7247T 2x7000Pa & PT1000 DANFOSS DRIVES Pressure Sensor 7247T 2x7000Pa & PT1000
134B9402
Pressure Sensor 7247T 2x7000Pa & PT1000
DANFOSS DRIVES
Pressure Sensor 7247T 2x7000Pa & PT1000
DUAL AIR PRESSURE SENSOR ±7000PA Temperature drift: ± 0.1 % per °C #°FZero point offset: ± 10 % of measuring rangeAbove- # below-pressure: max. ± 50 kPa / ± 200 inWCPower: 24VAC (± 20%) <0,2W / 15…36VDCOperation temperature: –30...+70 °C / –22...+158 °FMedia temperature –20...+50 °C / –4...+122 °FT2-IP65 plastic housing with two M16 cable glands one M12 fortemperatureHousing dimensions: 126 x 90 x 50 mm / 4.96 x 3.54 x 1.97 in
OPTIONS AND ACCESSORIES FC302 FC202 FC102 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲DUAL AIR PRESSURE SENSOR ±7000PA Temperature drift: ± 0.1 % per °C #
°F
Zero point offset: ± 10 % of measuring range
Above- # below-pressure: max. ± 50 kPa / ± 200 inWC
Power: 24VAC (± 20%) <0,2W / 15…36VDC
Operation temperature: –30...+70 °C / –22...+158 °F
Media temperature –20...+50 °C / –4...+122 °F
T2-IP65 plastic housing with two M16 cable glands one M12 for
temperature
Housing dimensions: 126 x 90 x 50 mm / 4.96 x 3.54 x 1.97 in
Product details
| Gross weight | 0.415 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 2.604 Liter |
| EAN | 5715253547008 |
| Gross weight | 0.415 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 2.604 Liter |
| EAN | 5715253547008 |
| Options | Control related options |
| Options | Control related options |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF SELECTION GUIDE FC102 2020 EN.pdf | 46 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
