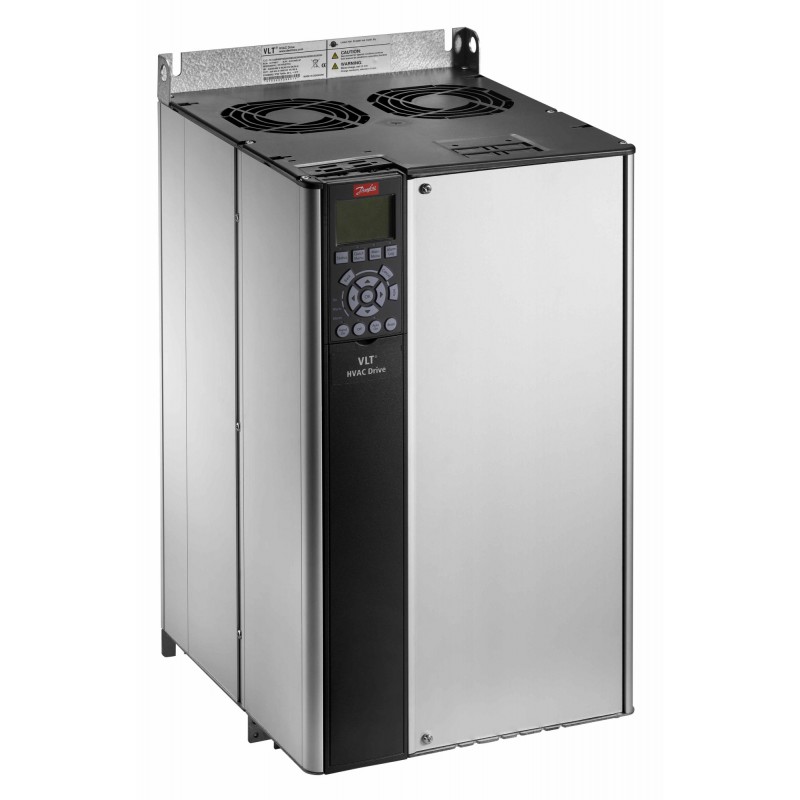

131X9332 DANFOSS DRIVES VLT AQUA Drive FC 202
131X9332
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P45KT4P20H1XGCXXXSXXXXA0B2CXXXXD0 VLT® AQUA Drive FC-202(P45K) 45 KW / 60 HP, Three phase, 380 - 480 VAC, IP20 / Chassis Backplate(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C3PROFIBUS DP MCA 101, MCB-112 PTC Therm. CardNo C1 option, MCB-107 24V DC backupATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P45KT4P20H1XGCXXXSXXXXA0B2CXXXXD0
VLT® AQUA Drive FC-202
(P45K) 45 KW / 60 HP,
Three phase, 380 - 480 VAC, IP20 / Chassis Backplate
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: C3
PROFIBUS DP MCA 101, MCB-112 PTC Therm. Card
No C1 option, MCB-107 24V DC backup
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model code
Product details
| Gross weight | 39.59 Kilogram | ||
| Net weight | 36.74 Kilogram | ||
| Volume | 178.336 Liter | ||
| EAN | 5710107289318 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P45K | (P45K) 45 KW / 60 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | P20 | IP20 / Chassis Backplate | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | C3 | C3 | |
| Typecode Part 1 | FC-202P45KT4P20H1XGC | ||
| Typecode Part 2 | XXXSXXXXA0B2CXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 37 | 37 | |
| Power 110% (NO) [KW] | 45 | 45 | |
| Height [mm] | 550,0 | 550,0 | |
| Width w/ no C options [mm] | 308,0 | 308,0 | |
| Depth [mm] | 333,0 | 333,0 | |
| Depth with Option A/B [mm] | 333,0 | 333,0 | |
| kVA | 62.4 | 62.4 | |
| Power Loss NO [W] | 843 | 843 | |
| Power Loss NO [W] | 843 | 843 | |
| Power Loss HO [W] | 697 | 697 | |
| Power Loss HO [W] | 697 | 697 | |
| Continuous Current (NO) [A] | 90 | 90 | |
| Intermittent Current (NO) [A] | 99 | 99 | |
| Continuous Current (NO) [A] | 80 | 80 | |
| Intermittent Current (NO) [A] | 88 | 88 | |
| Continuous Current (HO) [A] | 73 | 73 | |
| Intermittent Current (HO) [A] | 110 | 110 | |
| Continuous Current (HO) [A] | 65 | 65 | |
| Intermittent Current (HO) [A] | 97.5 | 97.5 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Calculated Gross Weight [kg] | 39.59 | ||
| Calculated Net Weight [kg] | 36.74 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P45KT4P20H1XGC | ||
| Modelcode02 | XXXSXXXXA0B2CXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
