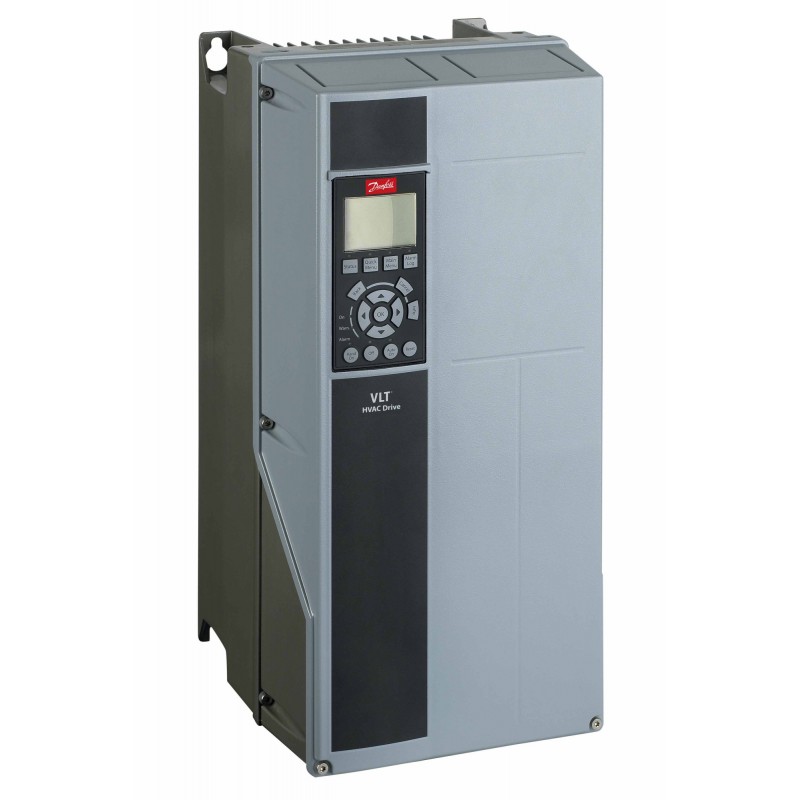

131X9206 FC-102P15KT4E55H3XGXXOXSXXXXAXB2CXXXXDX DANFOSS DRIVES VLT HVAC Drive FC 102
131X9206
FC-102P15KT4E55H3XGXXOXSXXXXAXB2CXXXXDX
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency ConverterFC-102P15KT4E55H3XGXXOXSXXXXAXB2CXXXXDX VLT® HVAC Drive FC-102(P15K) 15 KW / 20 HP, Three phase, 380 - 480 VAC, IP55 / Type 12(H3) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: B1No A Option, MCB-112 PTC Therm. CardNo C1 option, No D optionATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]Other options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P15KT4E55H3XGXXOXSXXXXAXB2CXXXXDX
VLT® HVAC Drive FC-102
(P15K) 15 KW / 20 HP,
Three phase, 380 - 480 VAC, IP55 / Type 12
(H3) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: B1
No A Option, MCB-112 PTC Therm. Card
No C1 option, No D option
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model Code
Product details
| Gross weight | 24.76 Kilogram | ||
| Net weight | 21.14 Kilogram | ||
| Volume | 105.71 Liter | ||
| EAN | 5710107287895 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P15K | (P15K) 15 KW / 20 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E55 | IP55 / Type 12 | |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | O | Metric thread cable entry | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B1 | B1 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P15KT4E55H3XGX | ||
| Typecode Part 2 | XOXSXXXXAXB2CXXXXDX | ||
| Power 110% (NO) [KW] | 15 | 15 | |
| Height [mm] | 494,0 | 494,0 | |
| Width w/ no C options [mm] | 243,0 | 243,0 | |
| Depth [mm] | 261,0 | 261,0 | |
| Depth with Option A/B [mm] | 261,0 | 261,0 | |
| kVA | 22.2 | 22.2 | |
| Power Loss NO [W] | 392 | 392 | |
| Power Loss NO [W] | 392 | 392 | |
| Continuous Current (NO) [A] | 32 | 32 | |
| Intermittent Current (NO) [A] | 35.2 | 35.2 | |
| Continuous Current (NO) [A] | 27 | 27 | |
| Intermittent Current (NO) [A] | 29.7 | 29.7 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Calculated Gross Weight [kg] | 24.76 | ||
| Calculated Net Weight [kg] | 21.14 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P15KT4E55H3XGX | ||
| Modelcode02 | XOXSXXXXAXB2CXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
