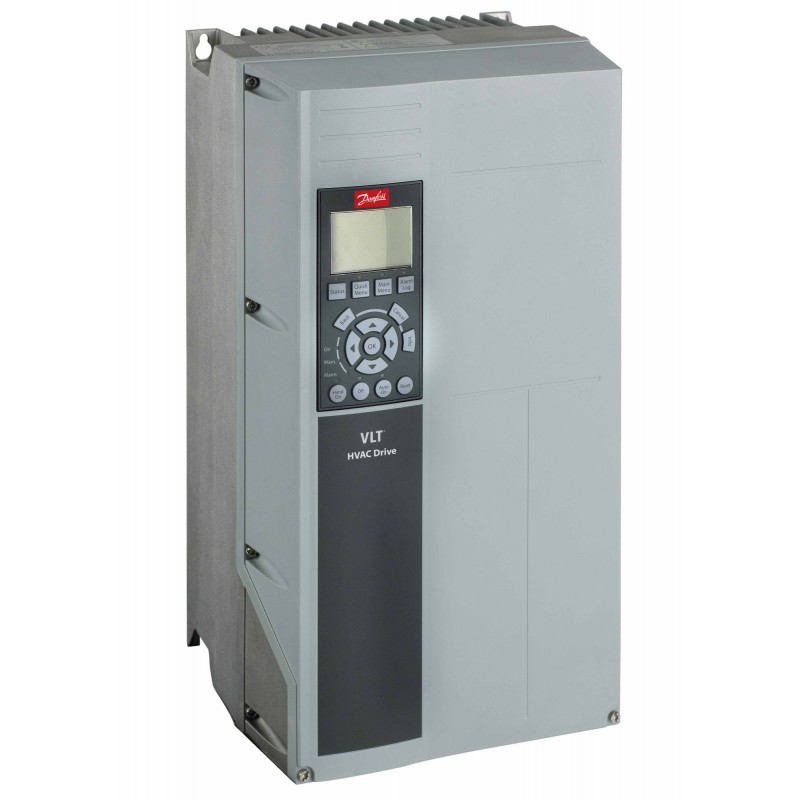

131X8537 FC-102P1K1T2E55H2XNX7SXSXXXXAJBXCXXXXDX DANFOSS DRIVES VLT HVAC Drive FC 102
131X8537
FC-102P1K1T2E55H2XNX7SXSXXXXAJBXCXXXXDX
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency Converter. FC-102P1K1T2E55H2XNX7SXSXXXXAJBXCXXXXDX. VLT® HVAC Drive FC-102. (P1K1) 1.1 KW / 1.5 HP, Three phase. 200 - 240 VAC, IP55 / Type 12. RFI Filter. No brake chopper. Numerical Loc. Cont. Panel. Not coated PCB, Fuse. Latest release std. SW.. Frame: A5. No C1 option, No D option. BACnet MCA 109, No B Option. Other options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 12.5 kg | ||
| Net weight | 12.2 kg | ||
| Volume | 0 l | ||
| EAN | 5710107281404 |
VLT® HVAC DRIVE FC 100 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P1K1 | (P1K1) 1.1 KW / 1.5 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | E55 | IP55 / Type 12 | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | N | Numerical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | S | Smooth imperial cable entr | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AJ | BACnet MCA 109 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A5 | A5 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P1K1T2E55H2XNX | ||
| Typecode Part 2 | 7SXSXXXXAJBXCXXXXDX | ||
| Power 110% (NO) [KW] | 1.1 | ||
| Height [mm] | 420,0 | ||
| Width w/ no C options [mm] | 242,0 | ||
| Depth [mm] | 200,0 | ||
| Depth with Option A/B [mm] | 200,0 | ||
| kVA | 2.38 | ||
| Power Loss NO [W] | 63 | ||
| Continuous Current (NO) [A] | 6.6 | ||
| Intermittent Current (NO) [A] | 7.26 | ||
| Calculated Gross Weight [kg] | 12.5 | ||
| Calculated Net Weight [kg] | 12.2 | ||
| ECCN US | 3A999 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P1K1T2E55H2XNX | ||
| Modelcode02 | 7SXSXXXXAJBXCXXXXDX |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
