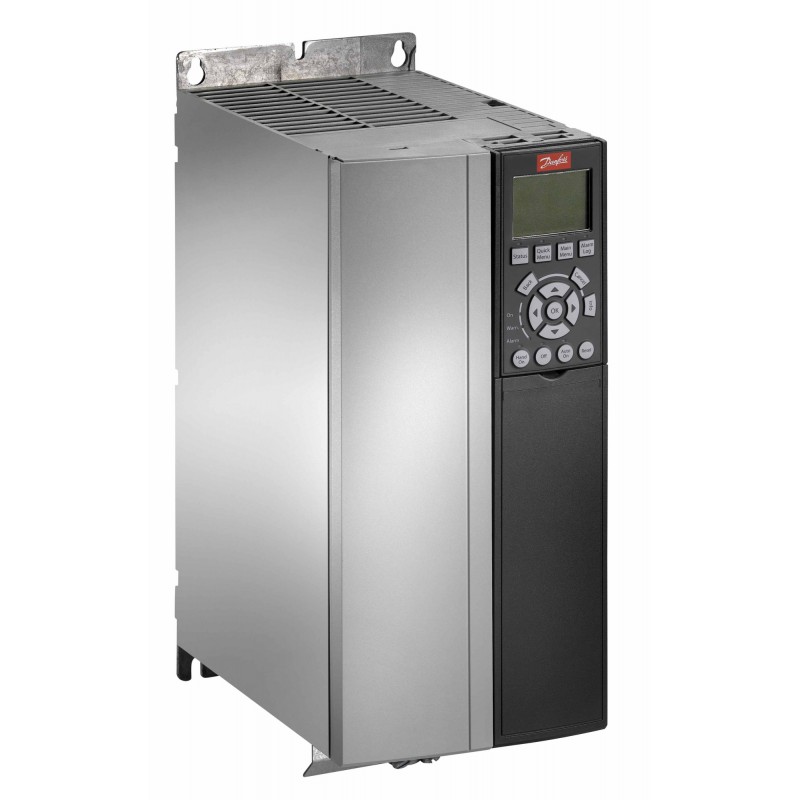

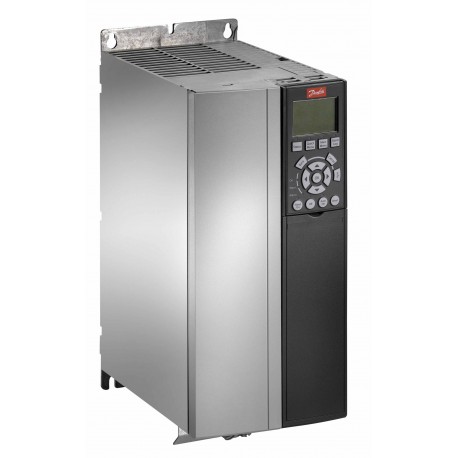

131X8393 DANFOSS DRIVES VLT AQUA Drive FC 202
131X8393
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P11KT4E20H1XGXXXXSXXXXAXB2CXXXXDX VLT® AQUA Drive FC-202(P11K) 11 KW / 15 HP, Three phase, 380 - 480 VAC, (E20) IP20 / Chassis(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: B3No A Option, MCB-112 PTC Therm. CardNo C1 option, No D optionATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P11KT4E20H1XGXXXXSXXXXAXB2CXXXXDX
VLT® AQUA Drive FC-202
(P11K) 11 KW / 15 HP,
Three phase, 380 - 480 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: B3
No A Option, MCB-112 PTC Therm. Card
No C1 option, No D option
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model code
Product details
| Gross weight | 12.06 Kilogram | ||
| Net weight | 11.04 Kilogram | ||
| Volume | 57.585 Liter | ||
| EAN | 5710107279937 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P11K | (P11K) 11 KW / 15 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B3 | B3 | |
| Typecode Part 1 | FC-202P11KT4E20H1XGX | ||
| Typecode Part 2 | XXXSXXXXAXB2CXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | 7.5 | 7.5 | |
| Power 110% (NO) [KW] | 11 | 11 | |
| Height [mm] | 399,0 | 399,0 | |
| Width w/ no C options [mm] | 165,0 | 165,0 | |
| Width w/ two C options [mm] | 225,0 | 225,0 | |
| Depth [mm] | 249,0 | 249,0 | |
| Depth with Option A/B [mm] | 262,0 | 262,0 | |
| kVA | 16.6 | 16.6 | |
| Power Loss NO [W] | 392 | 392 | |
| Power Loss NO [W] | 392 | 392 | |
| Power Loss HO [W] | 291 | 291 | |
| Power Loss HO [W] | 291 | 291 | |
| Continuous Current (NO) [A] | 24 | 24 | |
| Intermittent Current (NO) [A] | 26.4 | 26.4 | |
| Continuous Current (NO) [A] | 21 | 21 | |
| Intermittent Current (NO) [A] | 23.1 | 23.1 | |
| Continuous Current (HO) [A] | 16 | 16 | |
| Intermittent Current (HO) [A] | 25.6 | 25.6 | |
| Continuous Current (HO) [A] | 14.5 | 14.5 | |
| Intermittent Current (HO) [A] | 23.2 | 23.2 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Calculated Gross Weight [kg] | 12.06 | ||
| Calculated Net Weight [kg] | 11.04 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P11KT4E20H1XGX | ||
| Modelcode02 | XXXSXXXXAXB2CXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
