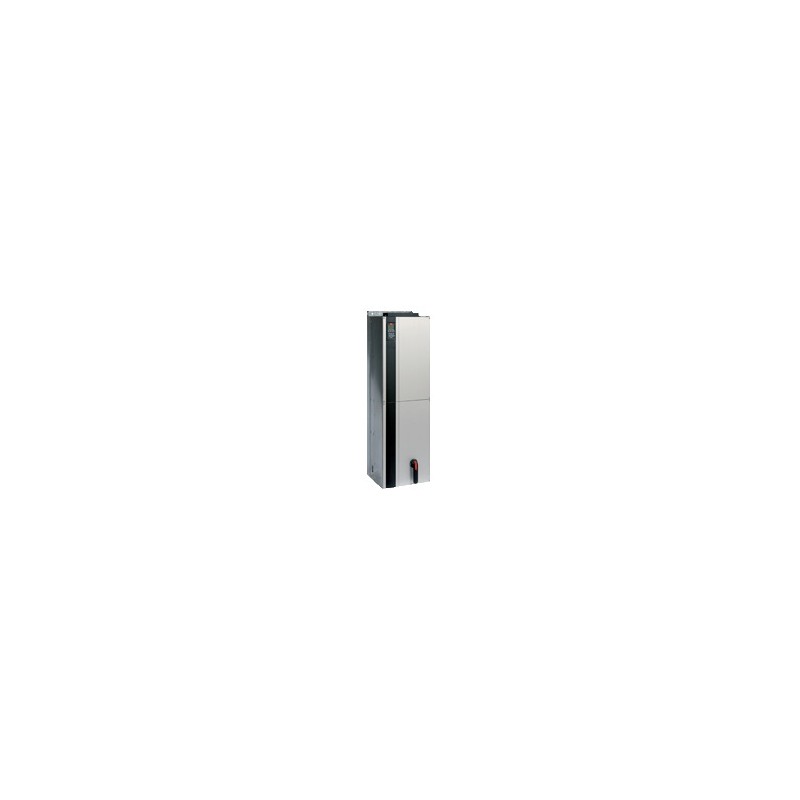

131X7805 DANFOSS DRIVES VLT AQUA Drive FC 202
131X7805
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P315T7E00H2XGC3XXSXXXXANBXCXXXXD0 VLT® AQUA Drive FC-202(P315) 315 KW / 450 HP, Three phase, 525 - 690 VAC *, (E00) IP00 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: D4EtherNet/IP MCA 121, No B OptionNo C1 option, MCB-107 24V DC backupOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P315T7E00H2XGC3XXSXXXXANBXCXXXXD0
VLT® AQUA Drive FC-202
(P315) 315 KW / 450 HP,
Three phase, 525 - 690 VAC *, (E00) IP00 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: D4
EtherNet/IP MCA 121, No B Option
No C1 option, MCB-107 24V DC backup
Other options according to Model code
Product details
| Gross weight | 245 Kilogram | ||
| Net weight | 222 Kilogram | ||
| EAN | 5710107270378 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P315 | (P315) 315 KW / 450 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E00 | (E00) IP00 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AN | EtherNet/IP MCA 121 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | D4 | D4 | |
| Typecode Part 1 | FC-202P315T7E00H2XGC | ||
| Typecode Part 2 | 3XXSXXXXANBXCXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 250 | 250 | |
| Power 110% (NO) [KW] | 315 | 315 | |
| kVA | 411 | 411 | |
| Continuous Current (NO) [A] | 360 | 360 | |
| Intermittent Current (NO) [A] | 396 | 396 | |
| Continuous Current (NO) [A] | 344 | 344 | |
| Intermittent Current (NO) [A] | 378 | 378 | |
| Continuous Current (HO) [A] | 303 | 303 | |
| Intermittent Current (HO) [A] | 454 | 454 | |
| Continuous Current (HO) [A] | 290 | 290 | |
| Intermittent Current (HO) [A] | 435 | 435 | |
| Calculated Gross Weight [kg] | 0.29 | ||
| Calculated Net Weight [kg] | 0.29 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P315T7E00H2XGC | ||
| Modelcode02 | 3XXSXXXXANBXCXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
