Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

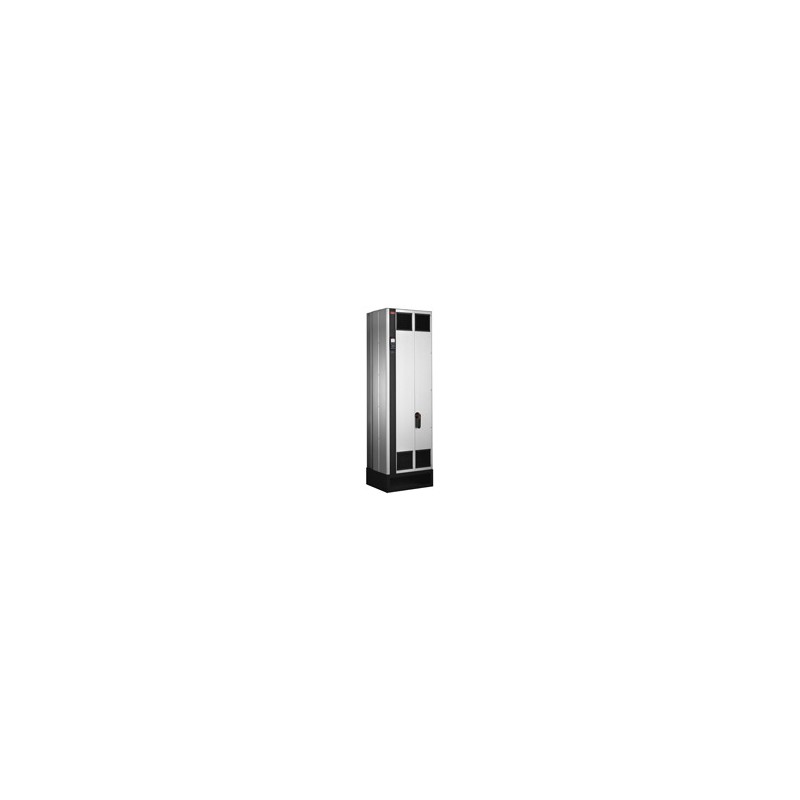

Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: 131X5657
Manufacturer: DANFOSS DRIVES
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
Frequency converter
FC-202P315T4E5MH2XGC3XXSXXXXANBXCXXXXD0
VLT® AQUA Drive FC-202
(P315) 315 KW / 450 HP,
Three phase, 380 - 480 VAC, IP54/Type 12+main shield
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: E1
EtherNet/IP MCA 121, No B Option
No C1 option, MCB-107 24V DC backup
Other options according to Model code
| Gross weight | 263.3 Kilogram | ||
| Net weight | 263 Kilogram | ||
| EAN | 5710107238316 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P315 | (P315) 315 KW / 450 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E5M | IP54/Type 12+main shield | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AN | EtherNet/IP MCA 121 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | E1 | E1 | |
| Typecode Part 1 | FC-202P315T4E5MH2XGC | ||
| Typecode Part 2 | 3XXSXXXXANBXCXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 250 | 250 | |
| Power 110% (NO) [KW] | 315 | 315 | |
| Height [mm] | 2000,0 | 2000,0 | |
| Width w/ no C options [mm] | 600,0 | 600,0 | |
| Depth [mm] | 505,0 | 505,0 | |
| Depth with Option A/B [mm] | 505,0 | 505,0 | |
| kVA | 416 | 416 | |
| Continuous Current (NO) [A] | 600 | 600 | |
| Intermittent Current (NO) [A] | 660 | 660 | |
| Continuous Current (NO) [A] | 540 | 540 | |
| Intermittent Current (NO) [A] | 594 | 594 | |
| Continuous Current (HO) [A] | 480 | 480 | |
| Intermittent Current (HO) [A] | 720 | 720 | |
| Continuous Current (HO) [A] | 443 | 443 | |
| Intermittent Current (HO) [A] | 664 | 664 | |
| Calculated Gross Weight [kg] | 263.3 | ||
| Calculated Net Weight [kg] | 263 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P315T4E5MH2XGC | ||
| Modelcode02 | 3XXSXXXXANBXCXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 |
