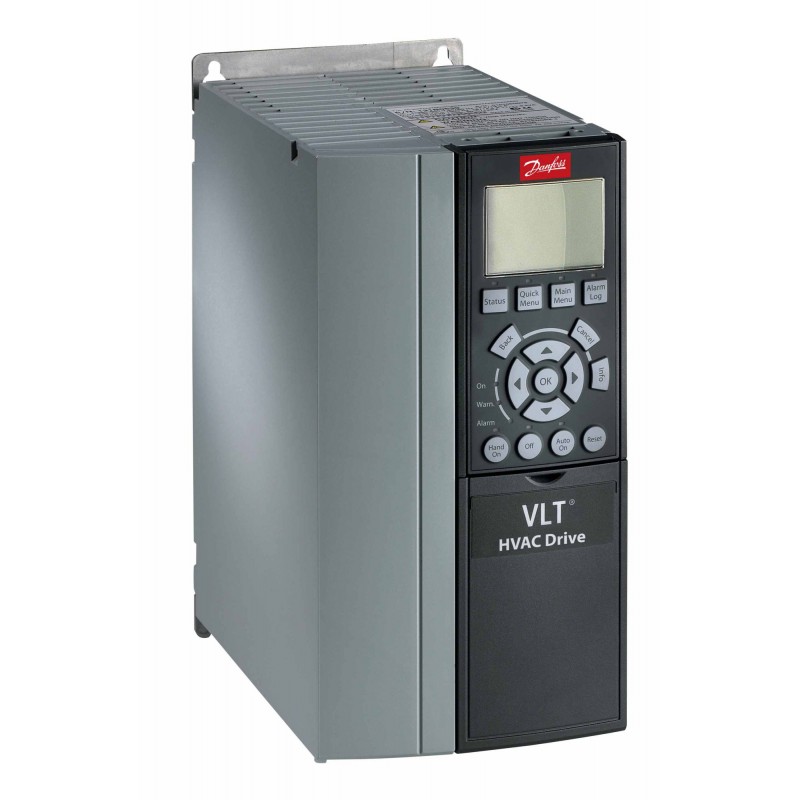

131X3211 DANFOSS DRIVES VLT HVAC Drive FC 102
131X3211
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency ConverterFC-102P450T4E5HL2XGCAXXSXXXXAXBXCXXXXDX VLT® HVAC Drive FC-102(P450) 450 KW / 600 HP, Three phase, 380 - 480 VAC, IP54 Hybrid LHD elect.LHD + Class A2 RFINo brake chopperGraphical Loc. Cont. PanelCoated PCB, Fuse + LoadsharingLatest release std. SW.Frame: E7No A Option, No B OptionNo C1 option, No D optionOther options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P450T4E5HL2XGCAXXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC-102
(P450) 450 KW / 600 HP,
Three phase, 380 - 480 VAC, IP54 Hybrid LHD elect.
LHD + Class A2 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse + Loadsharing
Latest release std. SW.
Frame: E7
No A Option, No B Option
No C1 option, No D option
Other options according to Model Code
Product details
| Gross weight | 877 Kilogram | ||
| Net weight | 668 Kilogram | ||
| EAN | 5710107050352 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P450 | (P450) 450 KW / 600 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E5H | IP54 Hybrid LHD elect. | |
| RFI Filter | L2 | LHD + Class A2 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | A | Fuse + Loadsharing | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | E7 | E7 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P450T4E5HL2XGC | ||
| Typecode Part 2 | AXXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 450 | 450 | |
| kVA | 554 | 554 | |
| Power Loss NO [W] | 9473 | 9473 | |
| Power Loss NO [W] | 8527 | 8527 | |
| Continuous Current (NO) [A] | 800 | 800 | |
| Intermittent Current (NO) [A] | 880 | 880 | |
| Continuous Current (NO) [A] | 730 | 730 | |
| Intermittent Current (NO) [A] | 803 | 803 | |
| Calculated Gross Weight [kg] | 0.09 | ||
| Calculated Net Weight [kg] | 0.09 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P450T4E5HL2XGC | ||
| Modelcode02 | AXXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
