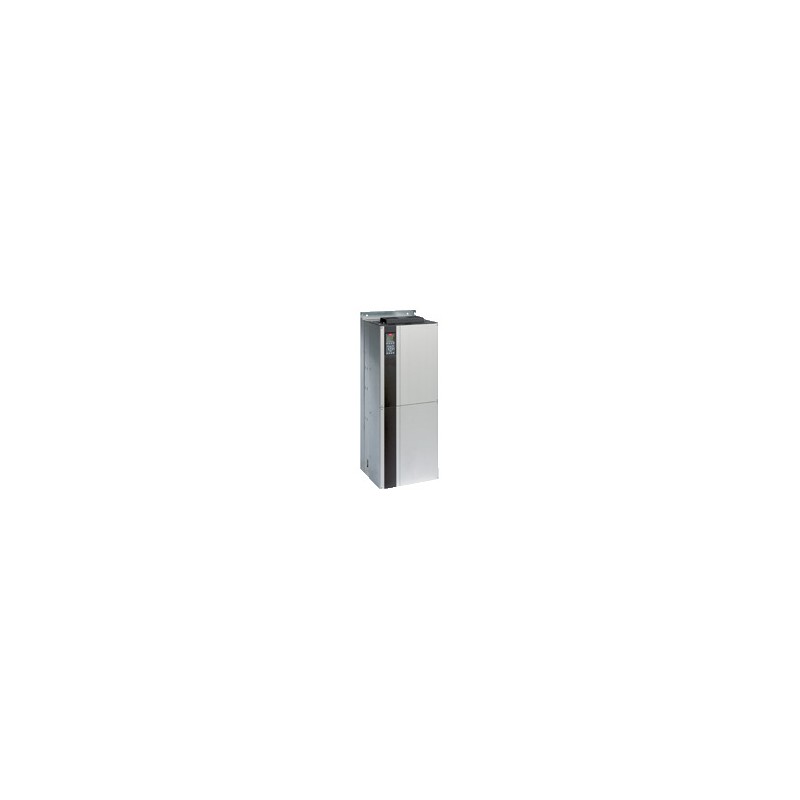

131X0528 DANFOSS DRIVES VLT AQUA Drive FC 202
131X0528
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converterFC-202P90KT7E0DH2XXCDXXSXXXXAXBXCXXXXDX VLT® AQUA Drive FC-202(P90K) 90 KW / 125 HP, Specific Ratings: 75kW@525- 550V, 100HP@575V, 90kW@690VThree phase, 525 - 690 VAC *, IP00 / Chassis D3 FrameRFI FilterNo brake chopperNo Loc. Cont. PanelCoated PCB, LoadsharingLatest release std. SW.Frame: D3No A Option, No B OptionNo C1 option, No D optionOther options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-202P90KT7E0DH2XXCDXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P90K) 90 KW / 125 HP, Specific Ratings: 75kW@525- 550V, 100HP@575V, 90kW@690V
Three phase, 525 - 690 VAC *, IP00 / Chassis D3 Frame
RFI Filter
No brake chopper
No Loc. Cont. Panel
Coated PCB, Loadsharing
Latest release std. SW.
Frame: D3
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 103 Kilogram | ||
| Net weight | 84 Kilogram | ||
| EAN | 5710107022267 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P90K | (P90K) 90 KW / 125 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E0D | IP00 / Chassis D3 Frame | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | D | Loadsharing | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | D3 | D3 | |
| Typecode Part 1 | FC-202P90KT7E0DH2XXC | ||
| Typecode Part 2 | DXXSXXXXAXBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 75 | 75 | |
| Power 110% (NO) [KW] | 90 | 90 | |
| kVA | 120 | 120 | |
| Power Loss NO [W] | 1800 | 1800 | |
| Power Loss NO [W] | 1800 | 1800 | |
| Power Loss HO [W] | 1500 | 1500 | |
| Power Loss HO [W] | 1500 | 1500 | |
| Continuous Current (NO) [A] | 105 | 105 | |
| Intermittent Current (NO) [A] | 116 | 116 | |
| Continuous Current (NO) [A] | 100 | 100 | |
| Intermittent Current (NO) [A] | 110 | 110 | |
| Continuous Current (HO) [A] | 87 | 87 | |
| Intermittent Current (HO) [A] | 130 | 130 | |
| Continuous Current (HO) [A] | 83 | 83 | |
| Intermittent Current (HO) [A] | 124 | 124 | |
| Power Rating at 525-550V | 75kW | 75kW | |
| Power Rating at 575V | 100HP | 100HP | |
| Power Rating at 690V | 90kW | 90kW | |
| Calculated Gross Weight [kg] | 0 | ||
| Calculated Net Weight [kg] | 0 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P90KT7E0DH2XXC | ||
| Modelcode02 | DXXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF VLT AQUA Drive FC 202 2024 EN.pdf | 51 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
