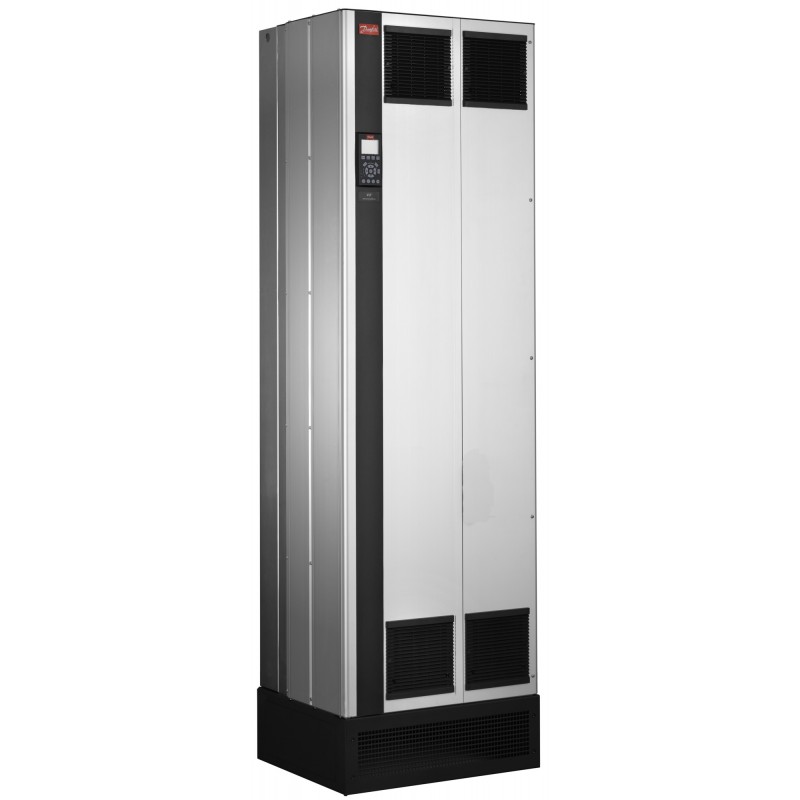

131U8055 DANFOSS DRIVES VLT AQUA Drive FC 202
131U8055
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converter. FC-202P450T7E5MH2TGC7XXSXXXXAXBXCXXXXD0. VLT® AQUA Drive FC-202. (P450) 450 KW / 600 HP, Three phase. 525 - 690 VAC *, IP54/Type 12+main shield. RFI Filter. Safe Stop. Graphical Loc. Cont. Panel. Coated PCB, Fuse. Latest release std. SW.. Frame: E1. No C1 option, MCB-107 24V DC backup. No A Option, No B Option. Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 263.3 kg | ||
| Net weight | 263 kg | ||
| Volume | 0 l | ||
| EAN | 5702427995482 |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P450 | (P450) 450 KW / 600 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E5M | IP54/Type 12+main shield | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | E1 | E1 | |
| Typecode Part 1 | FC-202P450T7E5MH2TGC | ||
| Typecode Part 2 | 7XXSXXXXAXBXCXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 355 | ||
| Power 110% (NO) [KW] | 450 | ||
| kVA | 538 | ||
| Power Loss NO [W] | 5323 | ||
| Power Loss NO [W] | 5529 | ||
| Power Loss HO [W] | 4424 | ||
| Power Loss HO [W] | 4589 | ||
| Continuous Current (NO) [A] | 470 | ||
| Intermittent Current (NO) [A] | 517 | ||
| Continuous Current (NO) [A] | 450 | ||
| Intermittent Current (NO) [A] | 495 | ||
| Continuous Current (HO) [A] | 395 | ||
| Intermittent Current (HO) [A] | 592 | ||
| Continuous Current (HO) [A] | 380 | ||
| Intermittent Current (HO) [A] | 570 | ||
| Calculated Gross Weight [kg] | 263.3 | ||
| Calculated Net Weight [kg] | 263 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202P450T7E5MH2TGC | ||
| Modelcode02 | 7XXSXXXXAXBXCXXXXD0 | ||
| Recommended Plant | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 1 Mbytes |
|
