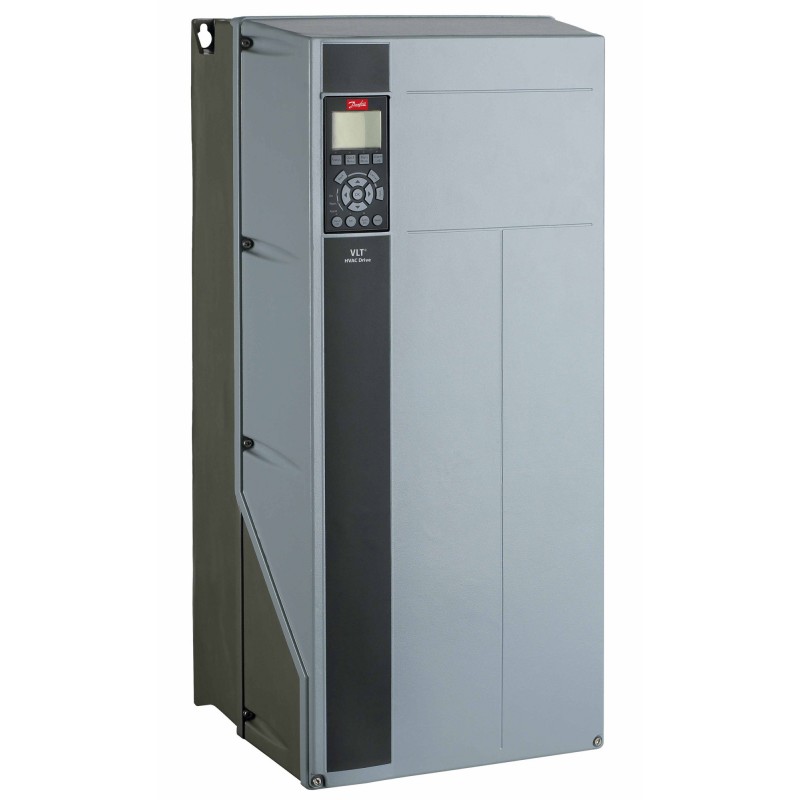

131N0654 DANFOSS DRIVES VLT AQUA Drive FC 202
131N0654
DANFOSS DRIVES
VLT AQUA Drive FC 202
FC-202P45KT2E21H2XGX7XXSXXXXAXBPCXXXXDX
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 61.9 kg | ||
| Net weight | 61.6 kg | ||
| Volume | 0 l | ||
| EAN | 5702427815315 |
VLT® AQUA DRIVE FC 200 SERIES
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P45K | (P45K) 45 KW / 60 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | E21 | IP21 / Type 1 | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| A Option | AX | No A Option | |
| Software Release | SXXX | Latest release std. SW. | |
| B Option | BP | MCB-105 Relay Card | |
| Software Language Pack | X | Standard Language Pack | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | C2 | C2 | |
| Typecode Part 1 | FC-202P45KT2E21H2XGX | ||
| Typecode Part 2 | 7XXSXXXXAXBPCXXXXDX | ||
| Calculated Gross Weight | 61.9 | ||
| Calculated Net Weight [kg] | 61.6 | ||
| Continuous Current (HO) [A] | NV | ||
| Continuous Current (HO) [A] | NV | ||
| Continuous Current (NO) [A] | 170 | ||
| Continuous Current (NO) [A] | NV | ||
| Depth [mm] | 335,0 | ||
| Depth with Option A/B [mm] | 335,0 | ||
| Height [mm] | 770,0 | ||
| Height w/ Regen/Loadshare [mm] | NV | ||
| Intermittent Current (HO) [A] | NV | ||
| Intermittent Current (HO) [A] | NV | ||
| Intermittent Current (NO) [A] | 187 | ||
| Intermittent Current (NO) [A] | NV | ||
| kVA | 61.2 | ||
| Material Gross Weight | 61.9 | ||
| Material Net Weight | 61.6 | ||
| Modelcode01 | FC-202P45KT2E21H2XGX | ||
| Modelcode02 | 7XXSXXXXAXBPCXXXXDX | ||
| Power 110% (NO) [KW] | 45 | ||
| Power 150% (HO) [KW] | 37 | ||
| Power 160% (HO) [KW] | NV | ||
| Power 180% (HO) [KW] | NV | ||
| Power Loss HO [W] | 1400 | ||
| Power Loss HO [W] | NV | ||
| Power Loss NO [W] | 1636 | ||
| Power Loss NO [W] | NV | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Product View (Switch) | GLBL | Global (Standard) | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Width w/ no C options [mm] | 370,0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 1 Mbytes |
|
