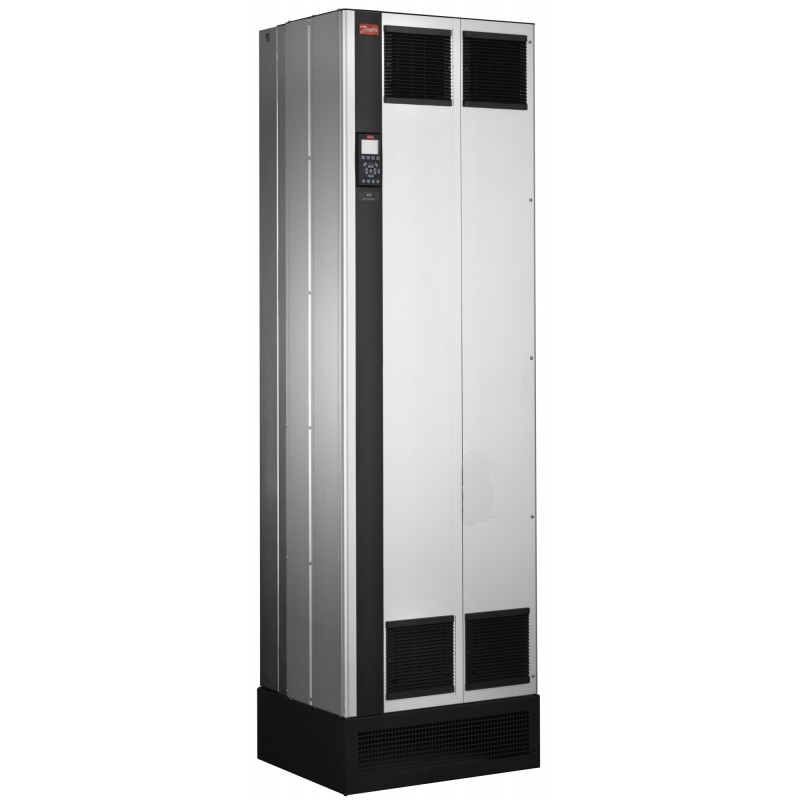

131L8106 DANFOSS DRIVES VLT AQUA Drive FC 202
131L8106
DANFOSS DRIVES
VLT AQUA Drive FC 202
FC-202P450T4E5MH2XGCXXXSXXXXAXBXCXXXXDX
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 313.3 kg | ||
| Net weight | 313 kg | ||
| Volume | 0 l | ||
| EAN | 5702427789807 |
VLT® AQUA DRIVE FC 200 SERIES
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P450 | (P450) 450 KW / 600 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E5M | IP54/Type 12+main shield | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| A Option | AX | No A Option | |
| Software Release | SXXX | Latest release std. SW. | |
| B Option | BX | No B Option | |
| Software Language Pack | X | Standard Language Pack | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | E1 | E1 | |
| Typecode Part 1 | FC-202P450T4E5MH2XGC | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Calculated Gross Weight | 313.3 | ||
| Calculated Net Weight [kg] | 313 | ||
| Continuous Current (HO) [A] | 695 | ||
| Continuous Current (HO) [A] | 678 | ||
| Continuous Current (NO) [A] | 800 | ||
| Continuous Current (NO) [A] | 730 | ||
| Depth [mm] | 494,0 | ||
| Depth with Option A/B [mm] | 494,0 | ||
| Height [mm] | 2000,0 | ||
| Height w/ Regen/Loadshare [mm] | NV | ||
| Intermittent Current (HO) [A] | 1042 | ||
| Intermittent Current (HO) [A] | 1017 | ||
| Intermittent Current (NO) [A] | 880 | ||
| Intermittent Current (NO) [A] | 803 | ||
| kVA | 554 | ||
| Material Gross Weight | 313.3 | ||
| Material Net Weight | 313 | ||
| Modelcode01 | FC-202P450T4E5MH2XGC | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 450 | ||
| Power 150% (HO) [KW] | 400 | ||
| Power 160% (HO) [KW] | NV | ||
| Power 180% (HO) [KW] | NV | ||
| Power Loss HO [W] | 7976 | ||
| Power Loss HO [W] | 7814 | ||
| Power Loss NO [W] | 9473 | ||
| Power Loss NO [W] | 8527 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Product View (Switch) | GLBL | Global (Standard) | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Width w/ no C options [mm] | 600,0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 1 Mbytes |
|
