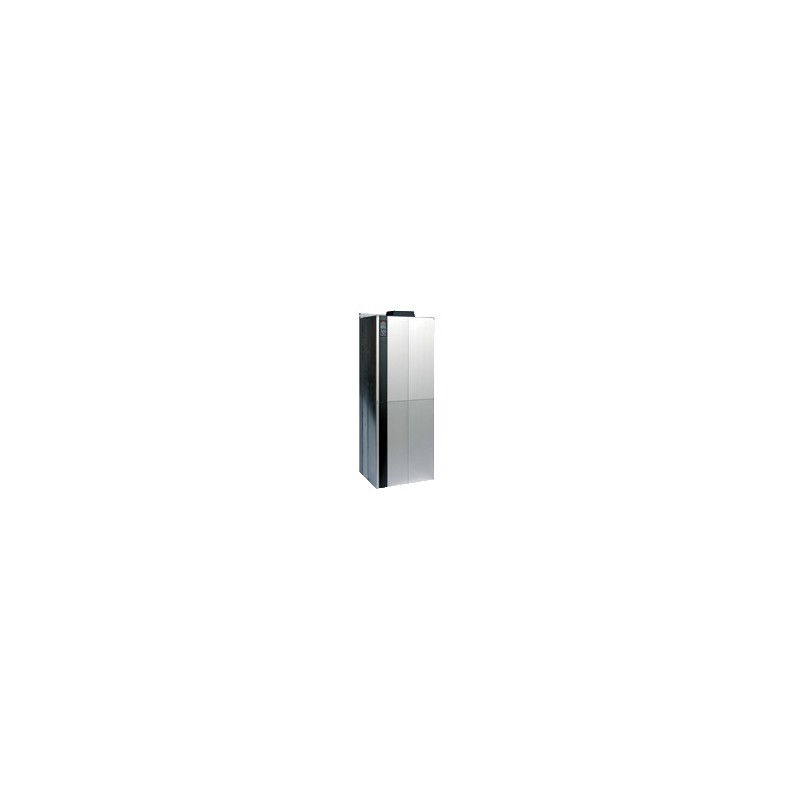

131L0574 DANFOSS DRIVES VLT AQUA Drive FC 202
131L0574
DANFOSS DRIVES
VLT AQUA Drive FC 202
Frequency converter. FC-202P630T7E00H2XGCXXXSXXXXA0BKCXXXXDX. VLT® AQUA Drive FC-202. , Three phase. 525 - 690 VAC *,. No brake chopper. Graphical Loc. Cont. Panel. Coated PCB, No Mains Option. Latest release std. SW.. Frame:. No C1 option, No D option. PROFIBUS DP MCA 101,. Other options according to Model code
VLT AQUA FC202 - DANFOSS DRIVES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 304 kg | ||
| Net weight | 259 kg | ||
| Volume | 0 l | ||
| EAN | 5702427713420 |
VLT® AQUA DRIVE FC 200 SERIES
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Typecode Part 1 | FC-202P630T7E00H2XGC | ||
| Typecode Part 2 | XXXSXXXXA0BKCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 560 | ||
| kVA | 753 | ||
| Power Loss NO [W] | 8495 | ||
| Power Loss HO [W] | 7383 | ||
| Continuous Current (NO) [A] | 630 | ||
| Intermittent Current (NO) [A] | 693 | ||
| Continuous Current (NO) [A] | 630 | ||
| Intermittent Current (HO) [A] | 855 | ||
| Calculated Net Weight [kg] | 277 | ||
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Recommended Plant | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC202 EN.pdf | 800 Kbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 1 Mbytes |
|
