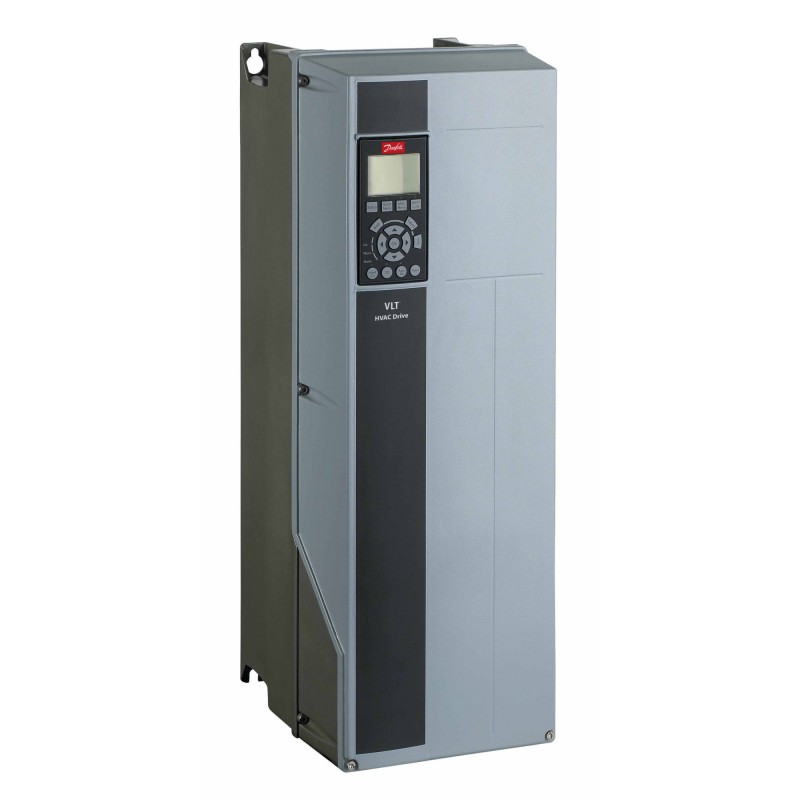

131L0318 FC-102P22KT4E21H1XGX7XXSXXXXAXBXCXXXXDX DANFOSS DRIVES VLT HVAC Drive FC 102
131L0318
FC-102P22KT4E21H1XGX7XXSXXXXAXBXCXXXXDX
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency ConverterFC-102P22KT4E21H1XGX7XXSXXXXAXBXCXXXXDX VLT® HVAC Drive FC-102(P22K) 22 KW / 30 HP, Three phase, 380 - 480 VAC, IP21 / Type 1(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, FuseLatest release std. SW.Frame: B2No A Option, No B OptionNo C1 option, No D optionOther options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P22KT4E21H1XGX7XXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC-102
(P22K) 22 KW / 30 HP,
Three phase, 380 - 480 VAC, IP21 / Type 1
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, Fuse
Latest release std. SW.
Frame: B2
No A Option, No B Option
No C1 option, No D option
Other options according to Model Code
Product details
| Gross weight | 32.77 Kilogram | ||
| Net weight | 29.21 Kilogram | ||
| Volume | 158.268 Liter | ||
| EAN | 5702427710702 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P22K | (P22K) 22 KW / 30 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E21 | IP21 / Type 1 | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B2 | B2 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P22KT4E21H1XGX | ||
| Typecode Part 2 | 7XXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 22 | 22 | |
| Height [mm] | 664,0 | 664,0 | |
| Width w/ no C options [mm] | 243,0 | 243,0 | |
| Depth [mm] | 261,0 | 261,0 | |
| Depth with Option A/B [mm] | 261,0 | 261,0 | |
| kVA | 30.5 | 30.5 | |
| Power Loss NO [W] | 525 | 525 | |
| Power Loss NO [W] | 525 | 525 | |
| Continuous Current (NO) [A] | 44 | 44 | |
| Intermittent Current (NO) [A] | 48.4 | 48.4 | |
| Continuous Current (NO) [A] | 40 | 40 | |
| Intermittent Current (NO) [A] | 44 | 44 | |
| Calculated Gross Weight [kg] | 32.77 | ||
| Calculated Net Weight [kg] | 29.21 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P22KT4E21H1XGX | ||
| Modelcode02 | 7XXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
