> DANFOSS DRIVES>VLT AQUA FC202 - DANFOSS DRIVES>131H1802 DANFOSS DRIVES VLT AQUA Drive FC-202
Previous Product Next Product

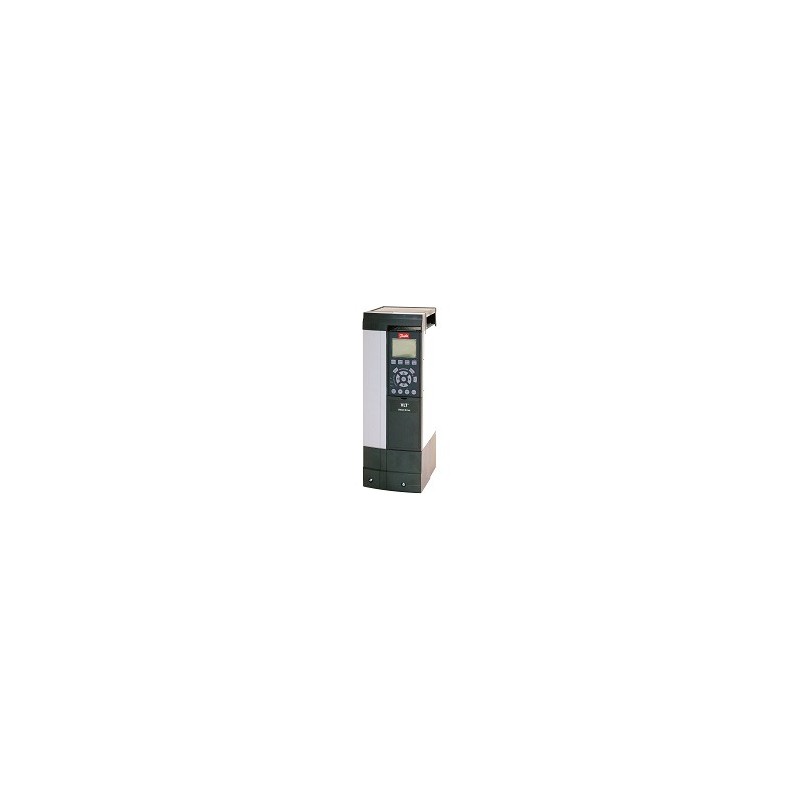

131H1802 DANFOSS DRIVES VLT AQUA Drive FC-202 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

131H1802 DANFOSS DRIVES VLT AQUA Drive FC-202

131H1802

DANFOSS DRIVES

VLT AQUA Drive FC-202

Frequency converterFC-202PK37T4E21H2XGCXXXSXXXXAXBPCXXXXDX VLT® AQUA Drive FC-202(PK37) 0.37 KW / 0.50 HP, Three phase, 380 - 480 VAC, IP21 / Type 1RFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: A2No A Option, MCB-105 Relay CardNo C1 option, No D optionOther options according to Model code

More details


VLT AQUA FC202 - DANFOSS DRIVES

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Frequency converter
FC-202PK37T4E21H2XGCXXXSXXXXAXBPCXXXXDX

VLT® AQUA Drive FC-202
(PK37) 0.37 KW / 0.50 HP,
Three phase, 380 - 480 VAC, IP21 / Type 1
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: A2
No A Option, MCB-105 Relay Card
No C1 option, No D option

Other options according to Model code

Product details

Gross weight5.576 Kilogram
Net weight4.73 Kilogram
Volume41.086 Liter
EAN5710107144129

Product View (Switch)GLBLGlobal (Standard)
Product GroupFC-VLT® AQUA Drive FC-
Series202202
Power RatingPK37(PK37) 0.37 KW / 0.50 HP
PhaseTThree phase
Mains Voltage4380 - 480 VAC
EnclosureE21IP21 / Type 1
RFI FilterH2RFI Filter
Brake - Safe StopXNo brake chopper
LCPGGraphical Loc. Cont. Panel
Coating PCBCCoated PCB
Mains OptionXNo Mains Option
Adaptation AXStandard Cable Entries
Adaptation BXNo adaptation
Software ReleaseSXXXLatest release std. SW.
Software Language PackXStandard Language Pack
A OptionAXNo A Option
B OptionBPMCB-105 Relay Card
C0 Option MCOCXNo C0 option
C1 OptionXNo C1 option
C Option SoftwareXXNo software option
D OptionDXNo D option
Frame SizeA2A2
Typecode Part 1FC-202PK37T4E21H2XGC
Typecode Part 2XXXSXXXXAXBPCXXXXDX
Product CatalogNO_VIEWNO VIEW
Power 150% (HO) [KW]0.370.37
Power 110% (NO) [KW]0.370.37
Height [mm]375,0375,0
Width w/ no C options [mm]90,090,0
Width w/ two C options [mm]150,0150,0
Depth [mm]207,0207,0
Depth with Option A/B [mm]222,0222,0
kVA0.90.9
Power Loss NO [W]3535
Power Loss NO [W]3535
Power Loss HO [W]3535
Power Loss HO [W]3535
Continuous Current (NO) [A]1.31.3
Intermittent Current (NO) [A]1.431.43
Continuous Current (NO) [A]1.21.2
Intermittent Current (NO) [A]1.321.32
Continuous Current (HO) [A]1.31.3
Intermittent Current (HO) [A]1.951.95
Continuous Current (HO) [A]1.21.2
Intermittent Current (HO) [A]1.81.8
Calculated Gross Weight [kg]5.576
Calculated Net Weight [kg]4.73
ECCN EUY901Y901
ECCN US3A999.a3A999.a
VendorERR01Cannot Determine Vendor
Producing plantERR01Cannot Determine Vendor
Modelcode01FC-202PK37T4E21H2XGC
Modelcode02XXXSXXXXAXBPCXXXXDX
Delivering plantERR01ERR01

Datasheet - PDF

▲
Title: Size: Type:
PDF VLT AQUA Drive FC 202 2024 EN.pdf 51 Mbytes
PDF CATALOG DANFOSS GENERAL EN.pdf 2 Mbytes
