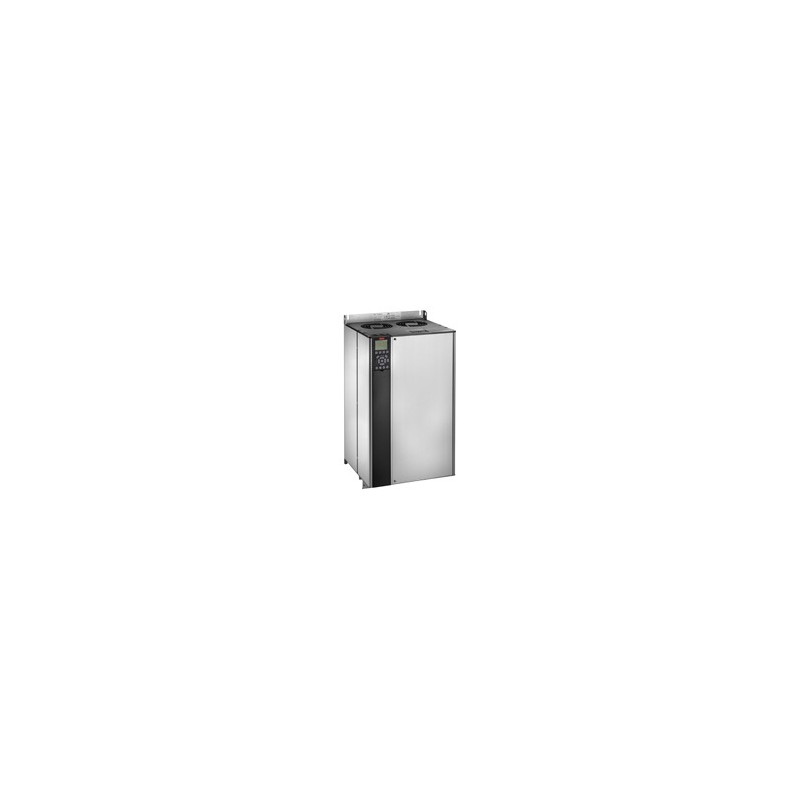

131F5446 FC-102P55KT4E20H2XGX7XXSXXXXAXBXCXXXXDX DANFOSS DRIVES VLT HVAC Drive FC-102
131F5446
FC-102P55KT4E20H2XGX7XXSXXXXAXBXCXXXXDX
DANFOSS DRIVES
VLT HVAC Drive FC-102
Frequency ConverterFC-102P55KT4E20H2XGX7XXSXXXXAXBXCXXXXDX VLT® HVAC Drive FC-102(P55K) 55 KW / 75 HP, Three phase, 380 - 480 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, FuseLatest release std. SW.Frame: No A Option, No B OptionNo C1 option, No D optionOther options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-102P55KT4E20H2XGX7XXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC-102
(P55K) 55 KW / 75 HP,
Three phase, 380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, Fuse
Latest release std. SW.
Frame:
No A Option, No B Option
No C1 option, No D option
Other options according to Model Code
Product details
| Gross weight | 50.5 Kilogram | ||
| Net weight | 50.2 Kilogram | ||
| EAN | 5710107113521 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P55K | (P55K) 55 KW / 75 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P55KT4E20H2XGX | ||
| Typecode Part 2 | 7XXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 55 | 55 | |
| kVA | 73.4 | 73.4 | |
| Power Loss NO [W] | 1083 | 1083 | |
| Power Loss NO [W] | 1083 | 1083 | |
| Continuous Current (NO) [A] | 106 | 106 | |
| Intermittent Current (NO) [A] | 117 | 117 | |
| Continuous Current (NO) [A] | 105 | 105 | |
| Intermittent Current (NO) [A] | 116 | 116 | |
| Calculated Gross Weight [kg] | 0.09 | ||
| Calculated Net Weight [kg] | 0.09 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P55KT4E20H2XGX | ||
| Modelcode02 | 7XXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
