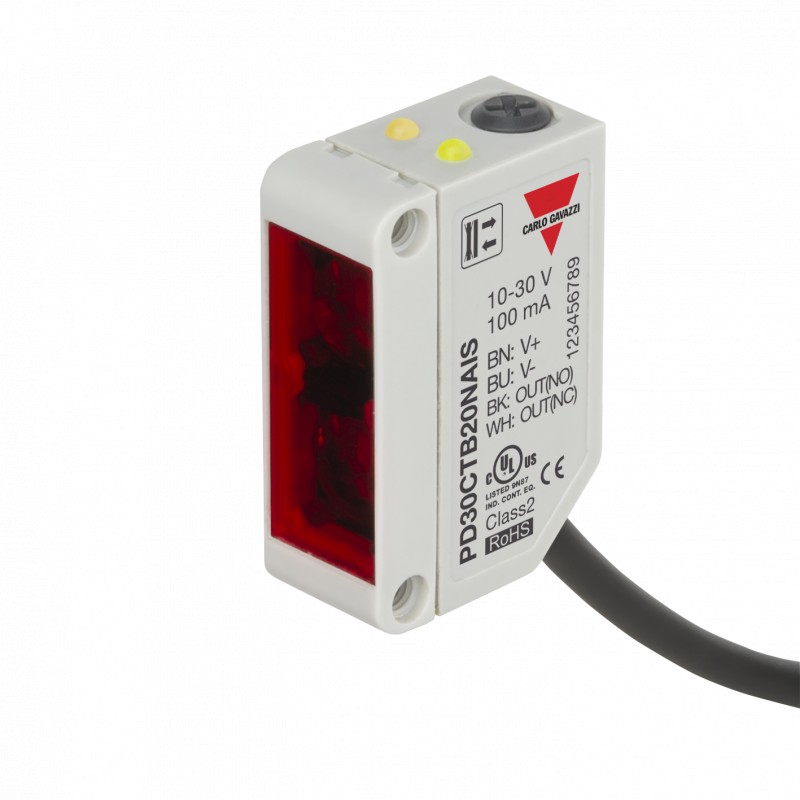

PD30CTB20NAIS CARLO GAVAZZI Selected parameters SYSTEM Diffuse reflective BGS HOUSING rectangular SENSING RA..

Reference: PD30CTB20NAIS

Manufacturer: CARLO GAVAZZI

Description:

Selected parameters SYSTEM Diffuse reflective BGS HOUSING rectangular SENSING RANGE 200 ... 400 mm CONNECTION Cable OUTPUT DC NPN MATERIAL Plastic Others SENSING RANGE 200 mm HOUSING 30 x 20 x 10,8 mm MATERIAL ABS ADDITIONAL Top Potentiometer
Background suppression photocell, miniature, VCC plastic, with potentiometer on top
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free infrared light 850nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing

Categories:

  • Sensors > Light scanner with background masking
  • CARLO GAVAZZI > Sensors > Photoelectric Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 83,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

Rated operating distance
200 mm
Output type
NPN
Output function
Complementary (NO+NC)
Connection type
Cable
Housing type
Rectangular
Housing material
Plastic
Emitted light
Infrared light
Sensing mode
Light-/dark switching
Degree of protection
IP67
Rated power supply
10 V ... 30 V

ETIM for PD30CTB20NAIS Sensors (EC002719)

Feature nameAdjustment range (EF002300)
Feature value25 mm
Feature nameTriangulation (EF008296)
Feature valueBackground fade-out
Feature nameRated switching distance (EF008289)
Feature value200 mm
Feature nameMax. switching distance (EF007367)
Feature value200 mm
Feature nameMax. output current (EF001315)
Feature value100 mA
Feature nameWith reflector (EF007448)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameWith other analogue output (EF007485)
Feature valueNo
Feature nameSetting procedure (EF003994)
Feature valueManual adjustment
Feature nameWith communication interface analogue (EF007305)
Feature valueNo
Feature nameWith communication interface AS-Interface (EF007306)
Feature valueNo
Feature nameWith communication interface CANOpen (EF007307)
Feature valueNo
Feature nameWith communication interface DeviceNet (EF007308)
Feature valueNo
Feature nameWith communication interface Ethernet (EF007309)
Feature valueNo
Feature nameWith communication interface INTERBUS (EF007310)
Feature valueNo
Feature nameWith communication interface PROFIBUS (EF007311)
Feature valueNo
Feature nameWith communication interface RS-232 (EF007312)
Feature valueNo
Feature nameWith communication interface RS-422 (EF007313)
Feature valueNo
Feature nameWith communication interface RS-485 (EF007314)
Feature valueNo
Feature nameWith communication interface SSD (EF007315)
Feature valueNo
Feature nameWith communication interface SSI (EF007316)
Feature valueNo
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value2
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value2
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameType of switching output (EF003962)
Feature valueNPN
Feature nameType of switch function (EF003963)
Feature valueAnticoincidence
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameWidth sensor (EF007094)
Feature value10 mm
Feature nameHeight of sensor (EF007283)
Feature value20 mm
Feature nameLength of sensor (EF007334)
Feature value30 mm
Feature nameSensing mode (EF007503)
Feature valueLight-/dark switching
Feature nameMaterial of optical surface (EF004134)
Feature valuePlastic
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameMax. output current at protected output (EF004035)
Feature value100 mA
Feature nameMin. reflector distance (EF004046)
Feature value10 mm
Feature nameAmbient temperature (EF002386)
Feature value-25 °C
Feature nameResponse time (EF004094)
Feature value1 ms
Feature nameSwitching frequency (EF003587)
Feature value500 Hz
Feature nameRated control supply voltage DC (EF003980)
Feature value10 V
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameWavelength of the sensor (EF004132)
Feature value850 nm
Feature nameType of light (EF004029)
Feature valueInfrared light
Feature nameLight dot (EF004030)
Feature value28 mm²
Feature nameAWG-number (EF007010)
Feature value26
Feature nameMaterial of cable sheath (EF004136)
Feature valuePolyvinyl chloride (PVC)
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67

DATASHEET - PDF

Title
Size
Type
PD30CTB20NAIS PD30CTB20NAIS EN_PD30CTB20NAIS.pdf
356 Kbytes
PDF CATALOG CARLO GAVAZZI EN
3 Mbytes
