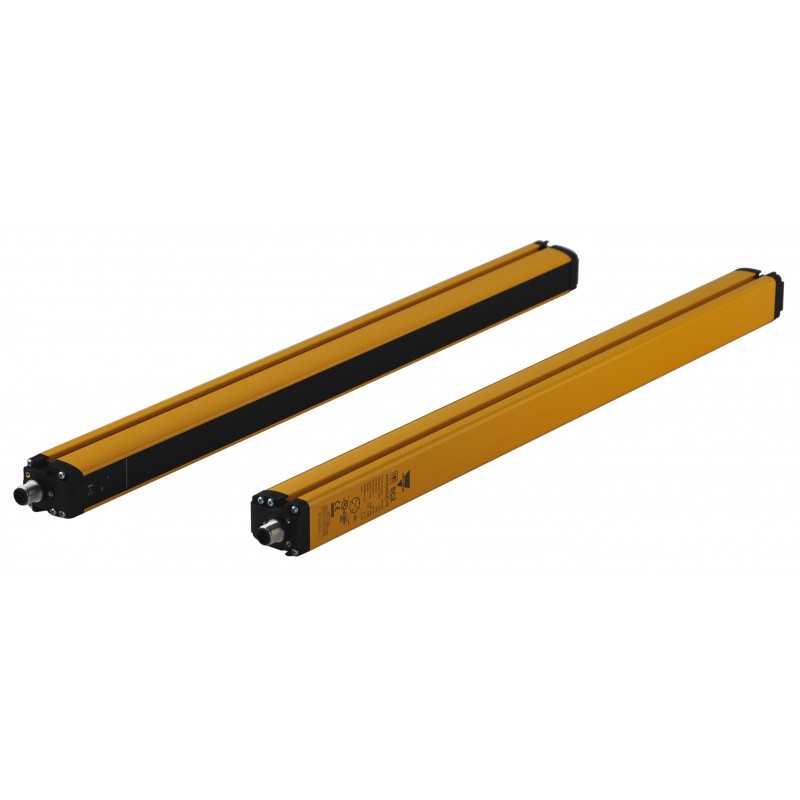

SC2AR301500D19 CARLO GAVAZZI Selected parameters FUNCTION Automatic Reset TYPE Type 2 RESOLUTION Hand PROTE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SC2AR301500D19 CARLO GAVAZZI Selected parameters FUNCTION Automatic Reset TYPE Type 2 RESOLUTION Hand PROTE..

SC2AR301500D19

CARLO GAVAZZI

Available

Ship on today

Selected parameters FUNCTION Automatic Reset TYPE Type 2 RESOLUTION Hand PROTECTED HEIGHT >1200 mm to 1500 mm Others PROTECTED HEIGHT 1500 mm

More details


Safety

Sensors

Light Curtains and Safety Light Curtains

* Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Safety Light Curtain
Type SC2
Hand Series
•Integrated light curtain for hand protection
• Up to 19moperating distance
•Controlled heights ranging from 150 to 1500mm
•New sturdy profile androtating brackets
• Reset/Text + Automatic Restart
•Ideal for Industrial Applications, such as:
- Automatic machines
- Machines for packaging , material handling andstoring
- Weaving machines, wood-working machines andceramic
working machines
- Automatic and semi-automatic assembly lines
- Automatic warehouses
Approvals
Ordering Key
SC 2 AR 30 300 D19
Product Description
Safety Light Curtains
Category
Function
(AR: Automatic Restart)
Resolution Protected height Operating distance
The new SC2 range of hand resolution(30mm)safety light curtains offers improved response times,amongthe lowest in the market, allowing theinstallation ofthesafety
Model Selection
lightcurtains nearer tothe dangerous area. Better than competition response times combined with new sturdy and more functional compact body (32x37mm profile), make the
new SC2 range one of the best performing safety light curtains for industrial applications.Also the quicker installation,thanks to new rotating fixing brackets, eases aligment in the harshest
conditions, whichtogether with full compatibilitywith the former SB range makes the new SC range a natural industrial automation evolution and choice.
Model Description
SC2
SC2-AR-30-150-D19Type 2 safety light curtain h=150mm SC2-AR-30-300-D19Type 2 safety light curtain h=300mm SC2-AR-30-450-D19Type 2 safety light curtain h=450mm SC2-AR-30-600-D19Type 2 safety light curtain h=600mm SC2-AR-30-750-D19Type 2 safety light curtain h=750mm SC2-AR-30-900-D19Type 2 safety light curtain h=900mm SC2-AR-30-1050-D19Type 2 safety light curtain h=1050mm SC2-AR-30-1200-D19Type 2 safety light curtain h=1200mm SC2-AR-30-1350-D19Type 2 safety light curtain h=1350mm SC2-AR-30-1500-D19Type 2 safety light curtain h=1500mm
General Data
Power Supply24VDC ± 20%
Consuption (emitter)2W max
Consuption (receiver) 3.5W max (without load)
OSSD output 2 PNP
Short-circuit protection1.4 A max
Output current 0.5A max on each output
Output voltage - ON statusVdd - 1V min Output voltage - OFF status0.2 V max. Leakage current< 1mA
Capacitive load 2.2uF @ 24VDC max
Response timeRefer to page 4 table Controlled height150... 1500 mm Safety category Type 2
Auxiliary functionsReset / Test and Auto Restart Electrical protection Class I / Class III ConnectionM12 4-pole for emitter
M12 5-pole for receiver
Cable lenght50m max*
1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 23/05/2014
