CARLO GAVAZZISensorsPHOTOELECTRIC SENSORSPF74CNT30BC CARLO GAVAZZI System: Fork Sensor, Housing: rectangular, Sensing range: 5 ... 55 mm, Connection:..

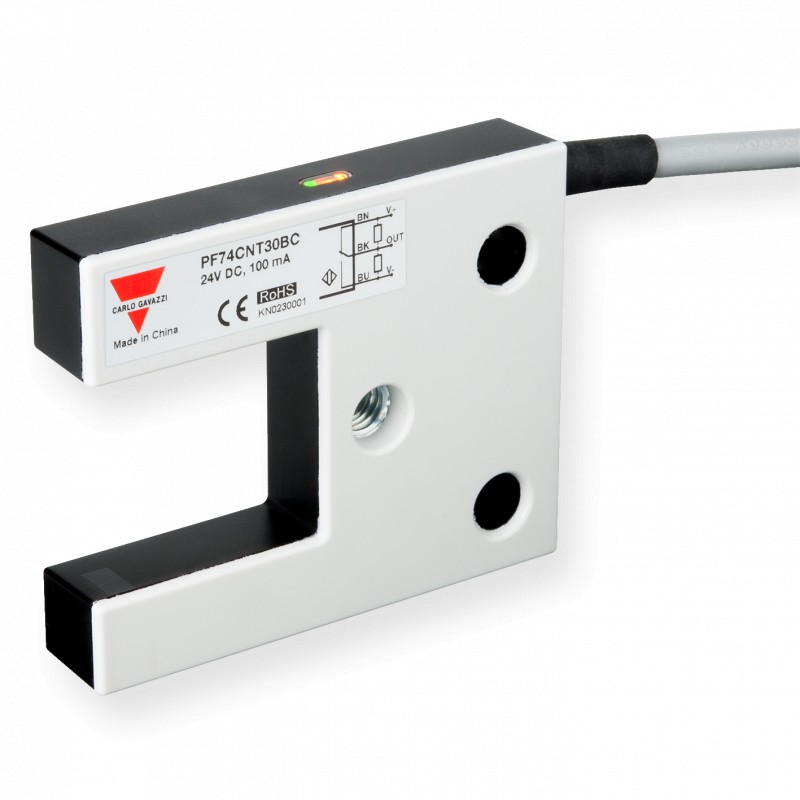

CARLO GAVAZZI PF74CNT30BC PF74CNT30BC - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PF74CNT30BC CARLO GAVAZZI System: Fork Sensor, Housing: rectangular, Sensing range: 5 ... 55 mm, Connection:..

Reference: PF74CNT30BC

Manufacturer: CARLO GAVAZZI

Description:

System: Fork Sensor, Housing: rectangular, Sensing range: 5 ... 55 mm, Connection: Cable, Output: Push-pull, Material: Plastic, Sensing range: 30 mm, Housing: 74 x 60 x 15 mm, Material: PC
Photocell slot for elevators
Photoelectric Fork Sensor, Range 30mm, infrared modulated light 940nm, Power Supply 24VDC, NPN+PNP Output, NO and NC, Connection Cable

Categories:

  • Sensors > Fork light barrier
  • CARLO GAVAZZI > Sensors > Photoelectric Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Specifications

Rated operating distance
30 mm
Electrical design
PNP/NPN
Output function
Change-over contact (NO/NC)
Fork width
30 mm
Fork depth
35 mm
Connection Type
Cable
Housing material
Plastic
Type of emitted light
Infrared light
Degree of protection
IP65
Rated power supply
19.2 V ... 28.8 V

ETIM for PF74CNT30BC Sensors (EC002720)

Feature nameMin. object size (EF008292)
Feature value2 mm
Feature nameFork depth (EF008290)
Feature value35 mm
Feature nameFork width (EF008291)
Feature value30 mm
Feature nameRated switching distance (EF008289)
Feature value30 mm
Feature nameMax. switching distance (EF007367)
Feature value30 mm
Feature nameMax. output current (EF001315)
Feature value100 mA
Feature nameWith time function (EF003582)
Feature valueNo
Feature nameWith reflector (EF007448)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameWith other analogue output (EF007485)
Feature valueNo
Feature nameSetting procedure (EF003994)
Feature valueOther
Feature nameWith communication interface analogue (EF007305)
Feature valueNo
Feature nameWith communication interface AS-Interface (EF007306)
Feature valueNo
Feature nameWith communication interface CANOpen (EF007307)
Feature valueNo
Feature nameWith communication interface DeviceNet (EF007308)
Feature valueNo
Feature nameWith communication interface Ethernet (EF007309)
Feature valueNo
Feature nameWith communication interface INTERBUS (EF007310)
Feature valueNo
Feature nameWith communication interface PROFIBUS (EF007311)
Feature valueNo
Feature nameWith communication interface RS-232 (EF007312)
Feature valueNo
Feature nameWith communication interface RS-422 (EF007313)
Feature valueNo
Feature nameWith communication interface RS-485 (EF007314)
Feature valueNo
Feature nameWith communication interface SSD (EF007315)
Feature valueNo
Feature nameWith communication interface SSI (EF007316)
Feature valueNo
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value1
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value1
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameType of interface for safety communication (EF003956)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameType of switching output (EF003962)
Feature valuePNP/NPN
Feature nameType of switch function (EF003963)
Feature valueChange-over contact (NO/NC)
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 0
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueProfile
Feature nameWidth sensor (EF007094)
Feature value60 mm
Feature nameDiameter sensor (EF007111)
Feature value0 mm
Feature nameHeight of sensor (EF007283)
Feature value15 mm
Feature nameLength of sensor (EF007334)
Feature value74 mm
Feature nameSensing mode (EF007503)
Feature valueLight-/dark switching
Feature nameMaterial of optical surface (EF004134)
Feature valuePlastic
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameMax. output current at protected output (EF004035)
Feature value100 mA
Feature nameMin. reflector distance (EF004046)
Feature value0 mm
Feature nameResponse time (EF004094)
Feature value0.4 ms
Feature nameTransmission range of the safety field (EF004098)
Feature value0 m
Feature nameSwitching frequency (EF003587)
Feature value1100 Hz
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value1
Feature nameSwitching voltage of OSSD at state "high" (EF004102)
Feature value28.8 V
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueNo
Feature namePre failure notice (EF004129)
Feature valueNo
Feature nameLaser protection class (EF004027)
Feature valueNone
Feature nameWavelength of the sensor (EF004132)
Feature value940 nm
Feature nameType of light (EF004029)
Feature valueInfrared light
Feature nameLight dot (EF004030)
Feature value78 mm²
Feature nameAWG-number (EF007010)
Feature value20
Feature nameMaterial of cable sheath (EF004136)
Feature valuePolyvinyl chloride (PVC)
Feature nameWith restart blockage (EF004054)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameAmbient temperature (EF002386)
Feature value-25 °C
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value0 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value0 V
Feature nameRated control supply voltage DC (EF003980)
Feature value19.2 V

DATASHEET - PDF

Title
Size
Type
PF74CNT30BC PF74CNT30BC EN_PF74CNT30BC.pdf
250 Kbytes
PDF CATALOG CARLO GAVAZZI EN
3 Mbytes
