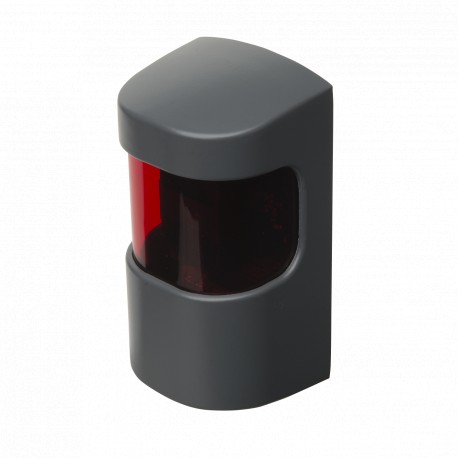

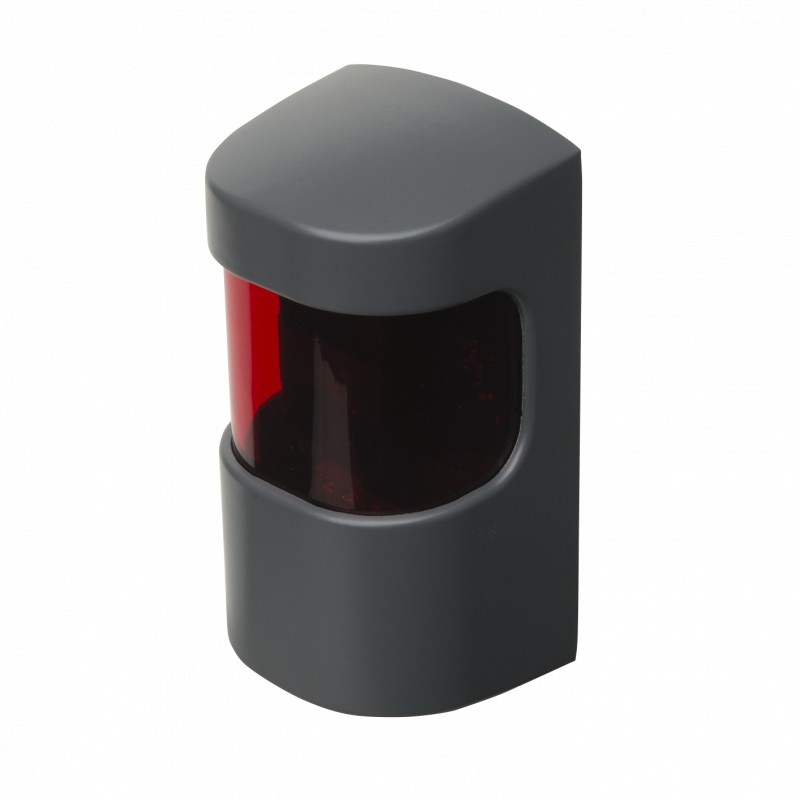

PD86HAP12QPTF-01C CARLO GAVAZZI System: Retro-reflective, Polarized, Housing: rectangular, Sensing range: 6 ..
PD86HAP12QPTF-01C
CARLO GAVAZZI
System: Retro-reflective, Polarized, Housing: rectangular, Sensing range: 6 ... 20 m, Connection: Terminals, Output: RELAY SPST, Material: Metal, Sensing range: 12 m, Housing: 86 x 44 x 39 mm, Material: ZAMAK - PMMA, Additional: Test input
Photocell reflection on mirror polarized for automatic doors, Lenses adjustable ±4,5 °
Polarized retro-reflective sensor, Range: 12000mm, Red light 620nm, Power Supply 12-24VAC/DC, Screw terminal connection, 44x86x39 mm housing
Sensors > Retroreflective photoelectric sensor
Sensors > Photoelectric Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Pre failure notice (EF004129) | Yes |
| With time function (EF003582) | No |
| Rated switching distance (EF008289) | 12000 mm |
| Max. switching distance (EF007367) | 12000 mm |
| Max. output current (EF001315) | 1000 mA |
| With reflector (EF007448) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With other analogue output (EF007485) | No |
| Setting procedure (EF003994) | Other |
| With communication interface analogue (EF007305) | No |
| With communication interface AS-Interface (EF007306) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface DeviceNet (EF007308) | No |
| With communication interface Ethernet (EF007309) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface PROFIBUS (EF007311) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Screw connection |
| Type of switching output (EF003962) | Relay contact |
| Type of switch function (EF003963) | Programmable/configurable |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Width sensor (EF007094) | 44 mm |
| Diameter sensor (EF007111) | 0 mm |
| Height of sensor (EF007283) | 39 mm |
| Length of sensor (EF007334) | 86 mm |
| Sensing mode (EF007503) | Light-/dark switching |
| Material of optical surface (EF004134) | Plastic |
| Housing material (EF001596) | Metal |
| Max. output current at protected output (EF004035) | 1000 mA |
| Min. reflector distance (EF004046) | 150 mm |
| Ambient temperature (EF002386) | -25 °C |
| Response time (EF004094) | 20 ms |
| Transmission range of the safety field (EF004098) | 0 m |
| Switching frequency (EF003587) | 20 Hz |
| Type of safety according to IEC 61496-1 (EF004105) | 2 |
| Switching voltage of OSSD at state "high" (EF004102) | 48 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 10.2 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 10.2 V |
| Rated control supply voltage DC (EF003980) | 10.2 V |
| Voltage type (EF000187) | AC/DC |
| With monitoring function downstream switching devices (EF004052) | No |
| Laser protection class (EF004027) | None |
| Wavelength of the sensor (EF004132) | 620 nm |
| Type of light (EF004029) | Polarized red light |
| Light dot (EF004030) | 78400 mm² |
| With restart blockage (EF004054) | No |
| Suitable for safety functions (EF001597) | Yes |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 1 |
