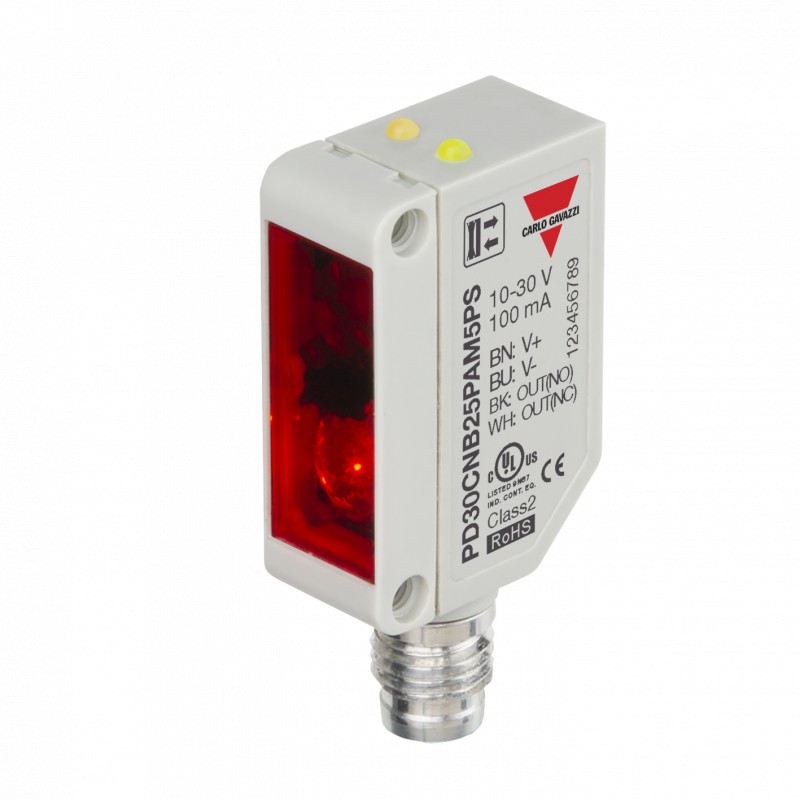

PD30CNB25PAM5PS CARLO GAVAZZI System: Diffuse reflective BGS, Housing: rectangular, Sensing range: 200 ... ..
PD30CNB25PAM5PS
CARLO GAVAZZI
System: Diffuse reflective BGS, Housing: rectangular, Sensing range: 200 ... 400 mm, Connection: M8 Plug DC, Output: DC PNP, Material: Plastic, Sensing range: 250 mm, Housing: 30 x 20 x 10,8 mm, Material: ABS , Additional: PointSpot
Photoelectric sensor background suppression, miniature - PointSpot, with a knob in the rear
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, PNP Output, N.O. and N.C., light and dark switching, M8 plug, 10x30x20mm housing
Sensors > Light scanner with background masking
Sensors > Photoelectric Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Adjustment range (EF002300) | 25 mm |
| Triangulation (EF008296) | Background fade-out |
| Pre failure notice (EF004129) | No |
| With time function (EF003582) | No |
| Rated switching distance (EF008289) | 250 mm |
| Max. switching distance (EF007367) | 250 mm |
| Max. output current (EF001315) | 100 mA |
| With reflector (EF007448) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With other analogue output (EF007485) | No |
| Setting procedure (EF003994) | Manual adjustment |
| With communication interface analogue (EF007305) | No |
| With communication interface AS-Interface (EF007306) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface DeviceNet (EF007308) | No |
| With communication interface Ethernet (EF007309) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface PROFIBUS (EF007311) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Type of electric connection (EF003961) | Connector M8 |
| Type of switching output (EF003962) | PNP |
| Type of switch function (EF003963) | Anticoincidence |
| Construction type housing (EF004008) | Cuboid |
| Width sensor (EF007094) | 10 mm |
| Height of sensor (EF007283) | 20 mm |
| Length of sensor (EF007334) | 30 mm |
| Sensing mode (EF007503) | Light-/dark switching |
| Material of optical surface (EF004134) | Plastic |
| Housing material (EF001596) | Plastic |
| Max. output current at protected output (EF004035) | 100 mA |
| Min. reflector distance (EF004046) | 10 mm |
| Ambient temperature (EF002386) | -25 °C |
| Response time (EF004094) | 1 ms |
| Switching frequency (EF003587) | 500 Hz |
| Rated control supply voltage DC (EF003980) | 10 V |
| Voltage type (EF000187) | DC |
| Wavelength of the sensor (EF004132) | 621 nm |
| Type of light (EF004029) | Polarity free red light |
| Light dot (EF004030) | 24 mm² |
| Degree of protection (IP) (EF005474) | IP67 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| PD30CNB25PAM5PS PD30CNB25PAM5PS EN_PD30CNB25NAM5PS.pdf | 1 Mbytes |
|
