CARLO GAVAZZISensorsPHOTOELECTRIC SENSORSPD30CNB25NAPS CARLO GAVAZZI System: Diffuse reflective BGS, Housing: rectangular, Sensing range: 200 ... 40..

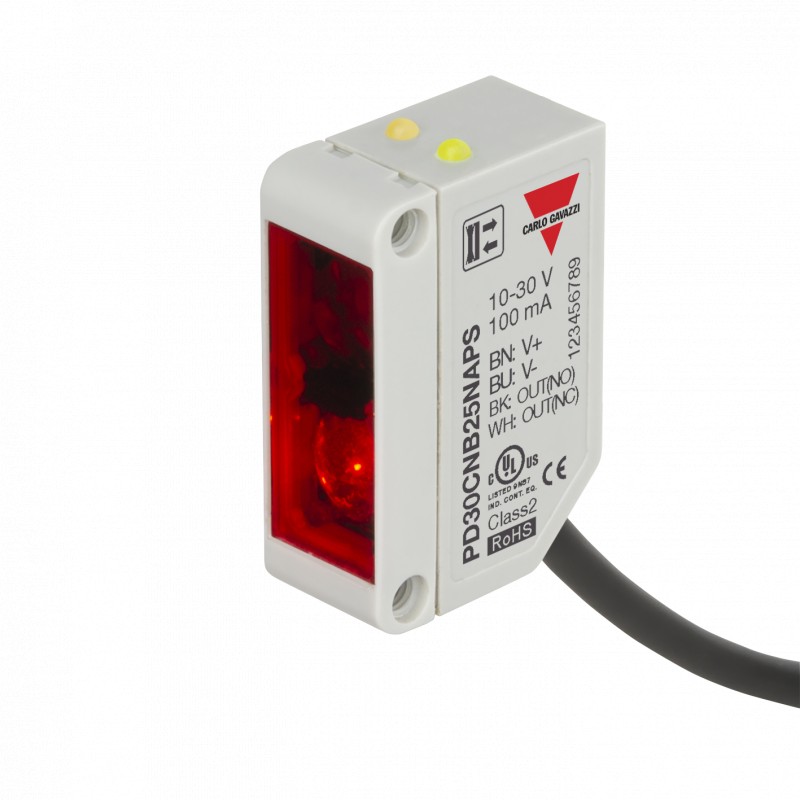

CARLO GAVAZZI PD30CNB25NAPS PD30CNB25NAPS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PD30CNB25NAPS CARLO GAVAZZI System: Diffuse reflective BGS, Housing: rectangular, Sensing range: 200 ... 40..

Reference: PD30CNB25NAPS

Manufacturer: CARLO GAVAZZI

Description:

System: Diffuse reflective BGS, Housing: rectangular, Sensing range: 200 ... 400 mm, Connection: Cable, Output: DC NPN, Material: Plastic, Sensing range: 250 mm, Housing: 30 x 20 x 10,8 mm, Material: ABS , Additional: PointSpot
Photoelectric sensor background suppression, miniature - PointSpot, with a knob in the rear
Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-200mm, Polarity free red light 625nm, Power Supply 10-30VDC, NPN Output, N.O. and N.C., light and dark switching, Cable connection, 10x30x20mm housing

Categories:

  • Sensors > Light scanner with background masking
  • CARLO GAVAZZI > Sensors > Photoelectric Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 87,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

Rated operating distance
250 mm
Output type
NPN
Output function
Complementary (NO+NC)
Connection type
Cable
Housing type
Rectangular
Housing material
Plastic
Emitted light
Polarity free red light
Sensing mode
Light-/dark switching
Degree of protection
IP67
Rated power supply
10 V ... 30 V

ETIM for PD30CNB25NAPS Sensors (EC002719)

Feature nameAdjustment range (EF002300)
Feature value25 mm
Feature nameTriangulation (EF008296)
Feature valueBackground fade-out
Feature namePre failure notice (EF004129)
Feature valueNo
Feature nameWith time function (EF003582)
Feature valueNo
Feature nameRated switching distance (EF008289)
Feature value250 mm
Feature nameMax. switching distance (EF007367)
Feature value250 mm
Feature nameMax. output current (EF001315)
Feature value100 mA
Feature nameWith reflector (EF007448)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameWith other analogue output (EF007485)
Feature valueNo
Feature nameSetting procedure (EF003994)
Feature valueManual adjustment
Feature nameWith communication interface analogue (EF007305)
Feature valueNo
Feature nameWith communication interface AS-Interface (EF007306)
Feature valueNo
Feature nameWith communication interface CANOpen (EF007307)
Feature valueNo
Feature nameWith communication interface DeviceNet (EF007308)
Feature valueNo
Feature nameWith communication interface Ethernet (EF007309)
Feature valueNo
Feature nameWith communication interface INTERBUS (EF007310)
Feature valueNo
Feature nameWith communication interface PROFIBUS (EF007311)
Feature valueNo
Feature nameWith communication interface RS-232 (EF007312)
Feature valueNo
Feature nameWith communication interface RS-422 (EF007313)
Feature valueNo
Feature nameWith communication interface RS-485 (EF007314)
Feature valueNo
Feature nameWith communication interface SSD (EF007315)
Feature valueNo
Feature nameWith communication interface SSI (EF007316)
Feature valueNo
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value2
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value2
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameType of switching output (EF003962)
Feature valueNPN
Feature nameType of switch function (EF003963)
Feature valueAnticoincidence
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameWidth sensor (EF007094)
Feature value10 mm
Feature nameHeight of sensor (EF007283)
Feature value20 mm
Feature nameLength of sensor (EF007334)
Feature value30 mm
Feature nameSensing mode (EF007503)
Feature valueLight-/dark switching
Feature nameMaterial of optical surface (EF004134)
Feature valuePlastic
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameMax. output current at protected output (EF004035)
Feature value100 mA
Feature nameMin. reflector distance (EF004046)
Feature value10 mm
Feature nameAmbient temperature (EF002386)
Feature value-25 °C
Feature nameResponse time (EF004094)
Feature value1 ms
Feature nameSwitching frequency (EF003587)
Feature value500 Hz
Feature nameRated control supply voltage DC (EF003980)
Feature value10 V
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameWavelength of the sensor (EF004132)
Feature value621 nm
Feature nameType of light (EF004029)
Feature valuePolarity free red light
Feature nameLight dot (EF004030)
Feature value24 mm²
Feature nameAWG-number (EF007010)
Feature value26
Feature nameMaterial of cable sheath (EF004136)
Feature valuePolyvinyl chloride (PVC)
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67

DATASHEET - PDF

Title
Size
Type
PD30CNB25NAPS PD30CNB25NAPS EN_PD30CNB25NAM5PS.pdf
1 Mbytes
PDF CATALOG CARLO GAVAZZI EN
3 Mbytes
