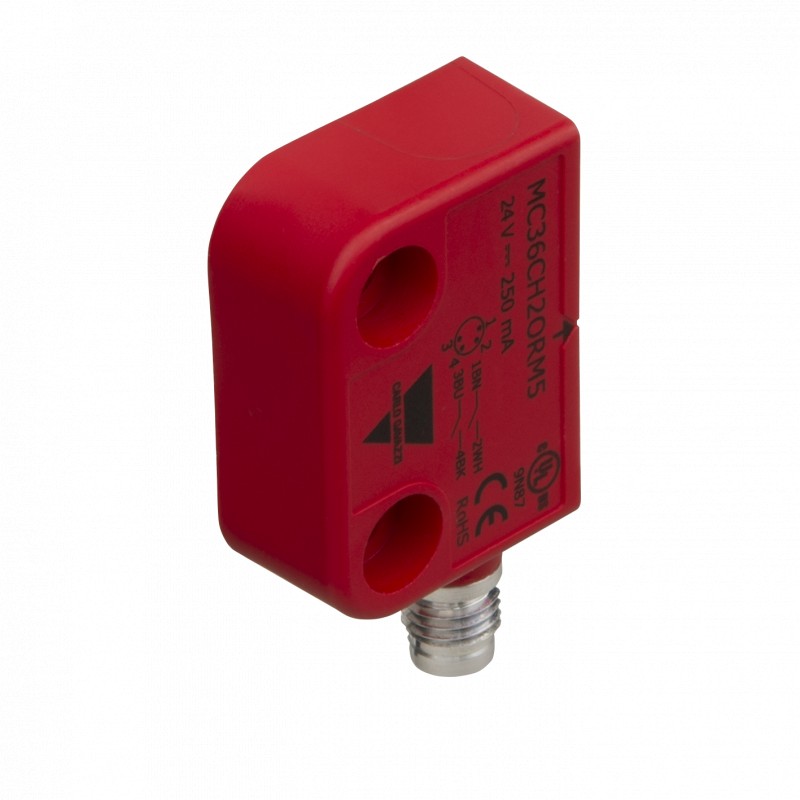

MC36CH2ORM5 CARLO GAVAZZI Compact rectangular magnetic safety sensor
MC36CH2ORM5
CARLO GAVAZZI
Compact rectangular magnetic safety sensor
Magnetic Sensor security rectangular compact
Safety magnetic sensor, Rectangular plastic housing, M8-plug, Right Exit, 2NO output reed contacts, Max switching voltage 12/24 Vac/dc, Max switching current 250mA, Max switching power 6W, Operating temp. -25...+80 C, IP69K
Sensors > Magnetic proximity switch
Sensors > Magnetic Sensors and Safety Magnetic Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Number of protected contact energized outputs (EF003952) | 2 |
| Type of actuation (EF006949) | Magnet |
| Type of electric connection (EF003961) | Connector M8 |
| Type of switching output (EF003962) | Dry reed contact |
| Width sensor (EF007094) | 26 mm |
| Height of sensor (EF007283) | 13 mm |
| Length of sensor (EF007334) | 36 mm |
| Construction type housing (EF004008) | Cuboid |
| Housing material (EF001596) | Plastic |
| Protected switch distance OFF (EF004011) | 15 mm |
| Protected switch distance ON (EF004012) | 5 mm |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Max. output current at protected output (EF004035) | 250 mA |
| Ambient temperature (EF002386) | -25 °C |
| Rated supply voltage AC 50 Hz (EF007076) | 12 V |
| Rated supply voltage DC (EF007078) | 12 V |
| Voltage type (EF000187) | AC/DC |
| Switching distance (EF003647) | 5 mm |
| Suitable for safety functions (EF001597) | Yes |
| With status indication (EF001602) | No |
| Degree of protection (IP) (EF005474) | EV009290 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| MC36CH2ORM5 MC36CH2ORM5 EN_MC36CH1O1CLA2.pdf | 2 Mbytes |
|
| Download general catalog |
|
