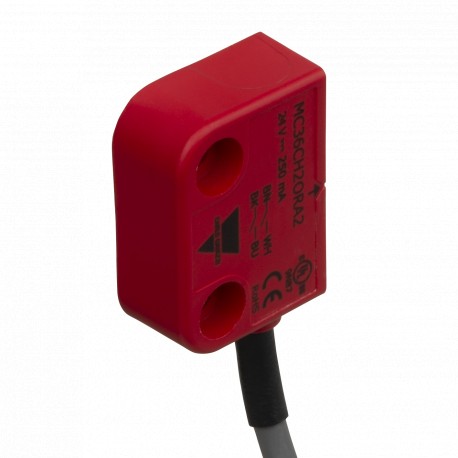

MC36CH2ORA2 CARLO GAVAZZI Compact rectangular magnetic safety sensor
MC36CH2ORA2
CARLO GAVAZZI
Compact rectangular magnetic safety sensor
Magnetic Sensor security rectangular compact
Safety magnetic sensor, Rectangular plastic housing, 2m cable, Right Exit, 2NO output reed contacts, Max switching voltage 12/24 Vac/dc, Max switching current 250mA, Max switching power 6W, Operating temp. -25...+80 C, IP67
Sensors > Magnetic proximity switch
Sensors > Magnetic Sensors and Safety Magnetic Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Number of protected contact energized outputs (EF003952) | 2 |
| Type of actuation (EF006949) | Magnet |
| Type of electric connection (EF003961) | Cable |
| Type of switching output (EF003962) | Dry reed contact |
| Width sensor (EF007094) | 26 mm |
| Height of sensor (EF007283) | 13 mm |
| Length of sensor (EF007334) | 36 mm |
| Construction type housing (EF004008) | Cuboid |
| Housing material (EF001596) | Plastic |
| Protected switch distance OFF (EF004011) | 15 mm |
| Protected switch distance ON (EF004012) | 5 mm |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Max. output current at protected output (EF004035) | 250 mA |
| Ambient temperature (EF002386) | -25 °C |
| Rated supply voltage AC 50 Hz (EF007076) | 12 V |
| Rated supply voltage DC (EF007078) | 12 V |
| Voltage type (EF000187) | AC/DC |
| Switching distance (EF003647) | 5 mm |
| Suitable for safety functions (EF001597) | Yes |
| With status indication (EF001602) | No |
| Degree of protection (IP) (EF005474) | IP67 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| MC36CH2ORA2 MC36CH2ORA2 EN_MC36CH1O1CLA2.pdf | 2 Mbytes |
|
| Download general catalog |
|
