CARLO GAVAZZISensorsMAGNETIC SENSORS AND SAFETY MAGNETIC SENSORSMC36CH2OLM5 CARLO GAVAZZI Compact rectangular magnetic safety sensor

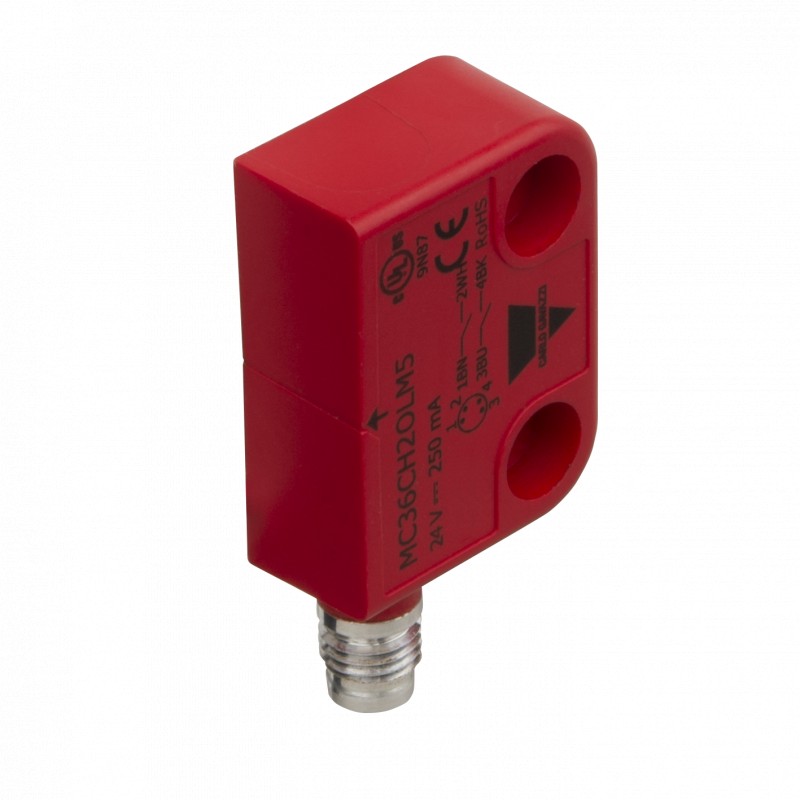

CARLO GAVAZZI MC36CH2OLM5 MC36CH2OLM5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MC36CH2OLM5 CARLO GAVAZZI Compact rectangular magnetic safety sensor

Reference: MC36CH2OLM5

Manufacturer: CARLO GAVAZZI

Description:

Compact rectangular magnetic safety sensor
Magnetic Sensor security rectangular compact
Safety magnetic sensor, Rectangular plastic housing, M8-plug, Left Exit, 2NO output reed contacts, Max switching voltage 12/24 Vac/dc, Max switching current 250mA, Max switching power 6W, Operating temp. -25...+80 C, IP69K

Categories:

  • Sensors > Magnetic proximity switch
  • CARLO GAVAZZI > Sensors > Magnetic Sensors and Safety Magnetic Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 57,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

Switch ON distance
5 mm
Switch OFF distance
15 mm
Output type
Reed switch
Max switching current
250 mA
Connection type
Connector M8
Housing type
Rectangular
Degree of protection
IP69K

ETIM for MC36CH2OLM5 Sensors (EC002544)

Feature nameNumber of protected contact energized outputs (EF003952)
Feature value2
Feature nameType of actuation (EF006949)
Feature valueMagnet
Feature nameType of electric connection (EF003961)
Feature valueConnector M8
Feature nameType of switching output (EF003962)
Feature valueDry reed contact
Feature nameWidth sensor (EF007094)
Feature value26 mm
Feature nameHeight of sensor (EF007283)
Feature value13 mm
Feature nameLength of sensor (EF007334)
Feature value36 mm
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameProtected switch distance OFF (EF004011)
Feature value15 mm
Feature nameProtected switch distance ON (EF004012)
Feature value5 mm
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel e
Feature nameMax. output current at protected output (EF004035)
Feature value250 mA
Feature nameAmbient temperature (EF002386)
Feature value-25 °C
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value12 V
Feature nameRated supply voltage DC (EF007078)
Feature value12 V
Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameSwitching distance (EF003647)
Feature value5 mm
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameWith status indication (EF001602)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueEV009290
