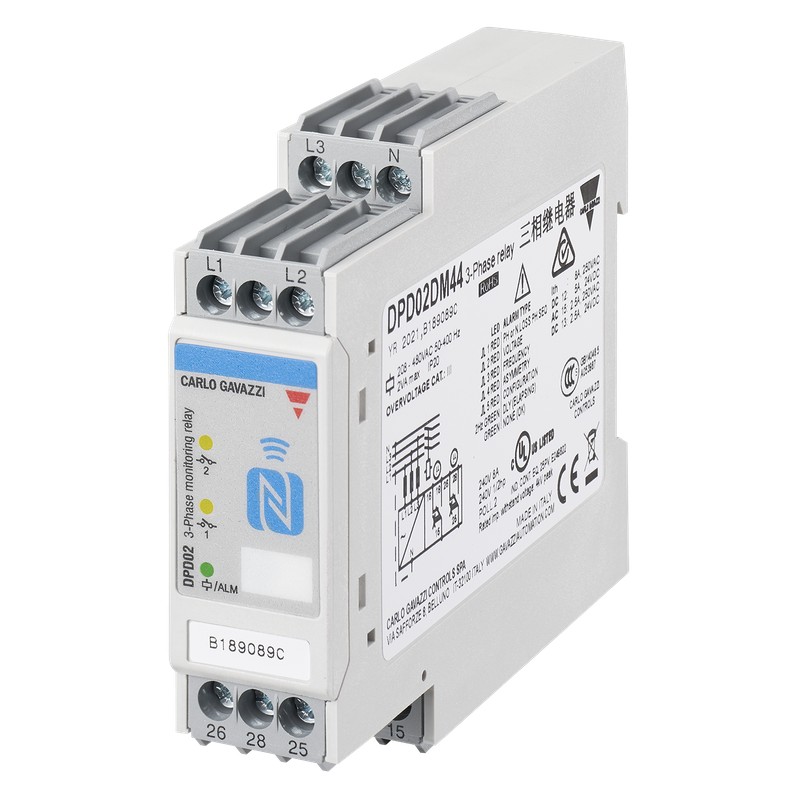

DPD02DM44B CARLO GAVAZZI Output signal: 2 relays , Setpoints: Multiple setpoints, Monitored variable: 3-phas..
DPD02DM44B
CARLO GAVAZZI
Output signal: 2 relays , Setpoints: Multiple setpoints, Monitored variable: 3-phase AC voltage and frequency monitoring, Size: 22,5 mm, Power supply range: 208÷480 VAC , Monitoring function: Under and over voltage/frequency, phase sequence, phase loss, Mouting: DIN-rail, Input range: 208÷480 VAC , Delay: 2 for each alarm, Others: NFC Communication
Relay control three-phase or three-phase + neutral rated Voltage 240VAC, 2 Outputs SPDT
3-phase monitoring relay for phase loss, sequence, neutral loss, asymmetry, over and undervoltage, over and underfrequency, nominal range 208-480 V AC, delay on alarm 0.1-60 s, 2 SPDT relay outputs, NFC communication, 22.5 mm DIN-rail housing
Relays > Phase monitoring relay
Controls > Monitoring Relays and Measurement Current Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| With detachable clamps (EF003340) | No |
| Phase sequence monitoring (EF003412) | Yes |
| Phase failure detection (EF003413) | Yes |
| Function under voltage detection (EF003414) | Yes |
| Function over voltage detection (EF003415) | Yes |
| Phase imbalance monitoring (EF003416) | Yes |
| Max. permitted delay-on energization time (EF008189) | 60 s |
| Max. permitted off-delay time (EF008191) | 600 s |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 84 mm |
| Depth (EF000049) | 99.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| DPD02DM44B DPD02DM44B EN_DPD02DM44.pdf | 803 Kbytes |
|
| Download general catalog |
|
