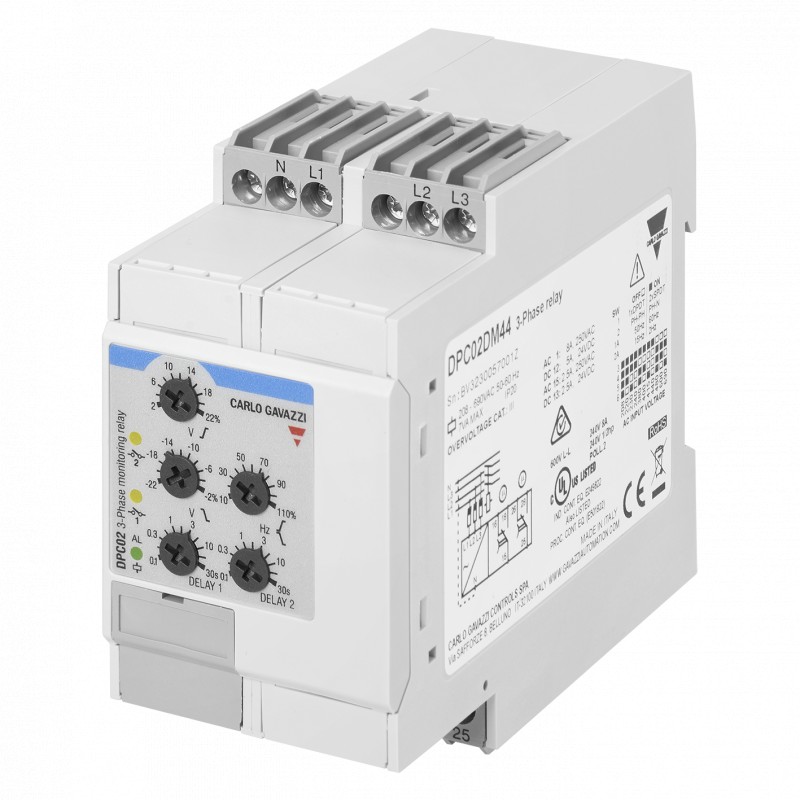

DPC02DM44 CARLO GAVAZZI Output signal: 2 relays , Setpoints: 2, adjustable , Monitored variable: 3-phase AC ..
DPC02DM44
CARLO GAVAZZI
Output signal: 2 relays , Setpoints: 2, adjustable , Monitored variable: 3-phase AC voltage and frequency monitoring, Size: 45 mm, Power supply range: from 208Vac to 690Vac, Monitoring function: Under and over voltage/frequency, phase sequence, phase loss, Mouting: DIN-rail, Input range: VLL from 177Vac to 793Vac, Delay: 2, adjustable
3-Phase Relay
3-phase monitoring relay for phase loss, sequence, over and undervoltage, over and underfrequency, nominal range 208-690 V AC, delay on alarm 0.1-30 s, 2 SPDT relay outputs, 45 mm DIN-rail housing
Relays > Phase monitoring relay
Controls > Monitoring Relays and Measurement Current Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| With detachable clamps (EF003340) | No |
| Phase sequence monitoring (EF003412) | Yes |
| Phase failure detection (EF003413) | Yes |
| Function under voltage detection (EF003414) | Yes |
| Function over voltage detection (EF003415) | Yes |
| Phase imbalance monitoring (EF003416) | No |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 99.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| DPC02DM44 DPC02DM44 EN_DPC02DM23.pdf | 960 Kbytes |
|
