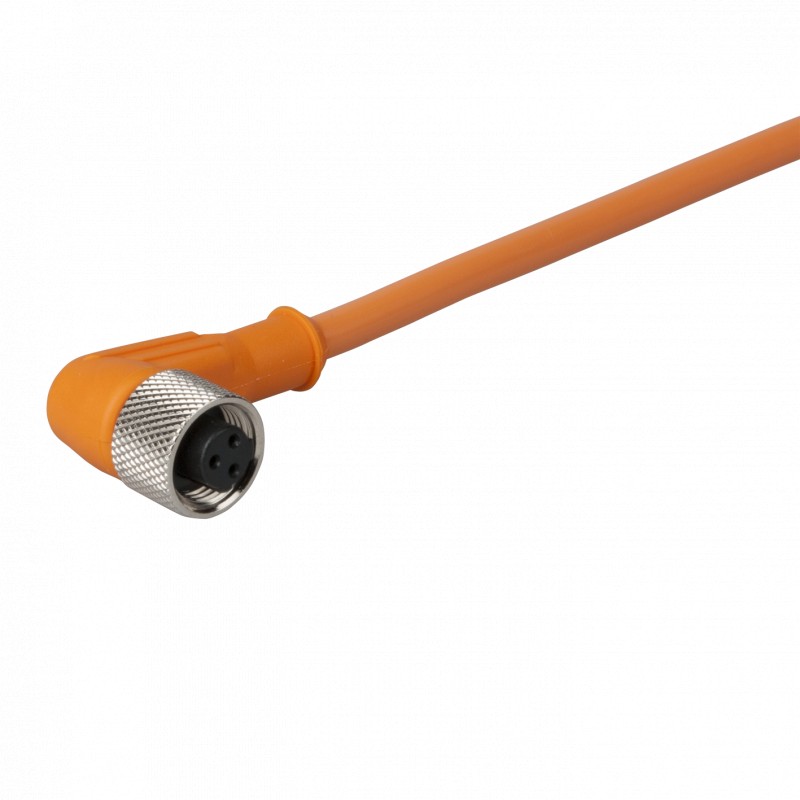

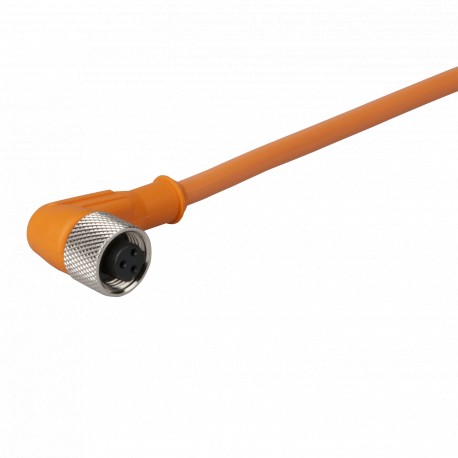

CONH6A-A2 CARLO GAVAZZI System: Connection cable, Connection: M12, Wire: 3-wire, Function: Female, socket ty..
CONH6A-A2
CARLO GAVAZZI
System: Connection cable, Connection: M12, Wire: 3-wire, Function: Female, socket type: Angled cable, Cable length: 2 m, Material: PVC
Connector for sensors VAC, Metric 12 - 3-wire
Connection cable, M12 Angled plug, 3-wires, AC/DC, Double coated, Female, PVC 2m cable, IP67, Temperature -40 - +90C
Connectors > Circular connector, mounting (with cable)
Sensors > Other Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Related products
▲Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Cable length (EF000536) | 2000 mm |
| Type of plug-in contact, outer side (EF005528) | Female (bus) |
| Type of plug-in contact, inner side (EF005527) | Female (bus) |
| Mounting method (EF000003) | Freely positionable |
| Number of power contacts (EF012216) | 2 |
| Number of control contacts (EF012217) | 0 |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Uncoated |
| Material core insulation (EF000061) | Polyvinyl chloride (PVC) |
| Material of contact surface (EF004020) | Gold |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Ambient temperature (EF002386) | -40 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 250 V |
| Rated current In (EF008250) | 4 A |
| Pollution degree (EF006786) | 3 |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.5 mm² |
| With PE-connection (EF005600) | No |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| CONH6A-A2 CONH6A-A2 EN_CONH6A-A5.pdf | 100 Kbytes |
|
| Download general catalog |
|
