CARLO GAVAZZISensorsCAPACITIVE SENSORSCD34CNFLFPOT5 CARLO GAVAZZI Connection: M8 Plug DC, Material: Plastic, Housing: Rectangular, Sensing range: ..

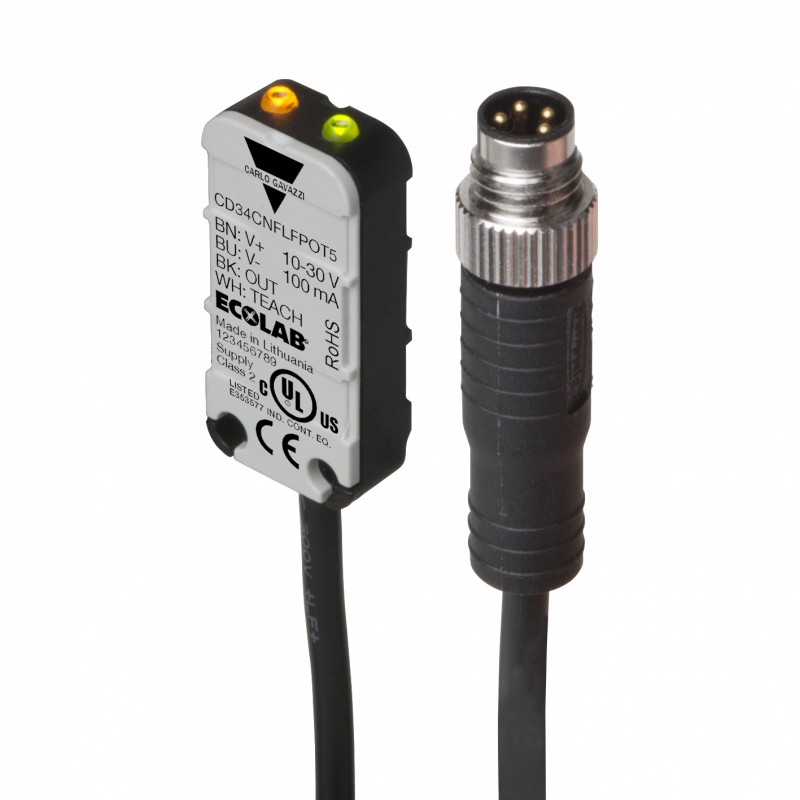

CARLO GAVAZZI CD34CNFLFPOT5 CD34CNFLFPOT5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CD34CNFLFPOT5 CARLO GAVAZZI Connection: M8 Plug DC, Material: Plastic, Housing: Rectangular, Sensing range: ..

Reference: CD34CNFLFPOT5

Manufacturer: CARLO GAVAZZI

Description:

Connection: M8 Plug DC, Material: Plastic, Housing: Rectangular, Sensing range: up to 6 mm, Output: DC PNP, System: Sensor, Housing: 34 x 16 x 8 mm, Sensing range: Liquid Level Detection, Material: PC/PBT
Level probe capacitive rectangular DC, to liquids of aqueous base, connection Pigtail cable
Capacitive Level Sensor, Flush mountable, Water-based Liquids, Power Supply 10-30VDC, PNP Output, N.O, M8 Pig-tail PVC, Housing 8 x 16 x 34 mm, ECOLAB, IP65, IP66, IP67, IP68 and IP69K

Categories:

  • Sensors > Capacitive proximity switch
  • CARLO GAVAZZI > Sensors > Capacitive Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 123,62 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Specifications

Installation Type
Flush
Output type
PNP
Output function
Normally Open (NO)
Connection type
Connector M8
Housing type
Rectangular
Housing material
Plastic
Rated power supply
10 V ... 30 V
Degree of protection
IP65, IP66, IP67, IP68, IP69K

ETIM for CD34CNFLFPOT5 Sensors (EC002715)

Feature nameWidth sensor (EF007094)
Feature value16 mm
Feature nameHeight of sensor (EF007283)
Feature value8 mm
Feature nameLength of sensor (EF007334)
Feature value34 mm
Feature nameDiameter sensor (EF007111)
Feature value0 mm
Feature nameMechanical mounting condition for sensor (EF004041)
Feature valueConcise
Feature nameSwitching distance (EF003647)
Feature value0 mm
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameType of switch function (EF003963)
Feature valueNormally open contact
Feature nameType of switching output (EF003962)
Feature valuePNP
Feature nameType of electric connection (EF003961)
Feature valueConnector M8
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value1
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value1
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameType of actuation (EF006949)
Feature valueOther
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameCoating housing (EF001601)
Feature valueOther
Feature nameCascadable (EF000507)
Feature valueNo
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameMax. output current at protected output (EF004035)
Feature value100 mA
Feature nameSupply voltage (EF004127)
Feature value10 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value0 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value0 V
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameSwitching frequency (EF003587)
Feature value10 Hz
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueNo
Feature nameWith status indication (EF001602)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameCompression-resistant (EF007106)
Feature valueNo
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone

DATASHEET - PDF

Title
Size
Type
CD34CNFLFPOT5 CD34CNFLFPOT5 EN_CD34CNFLFNCP2.pdf
880 Kbytes
PDF CATALOG CARLO GAVAZZI EN
3 Mbytes
