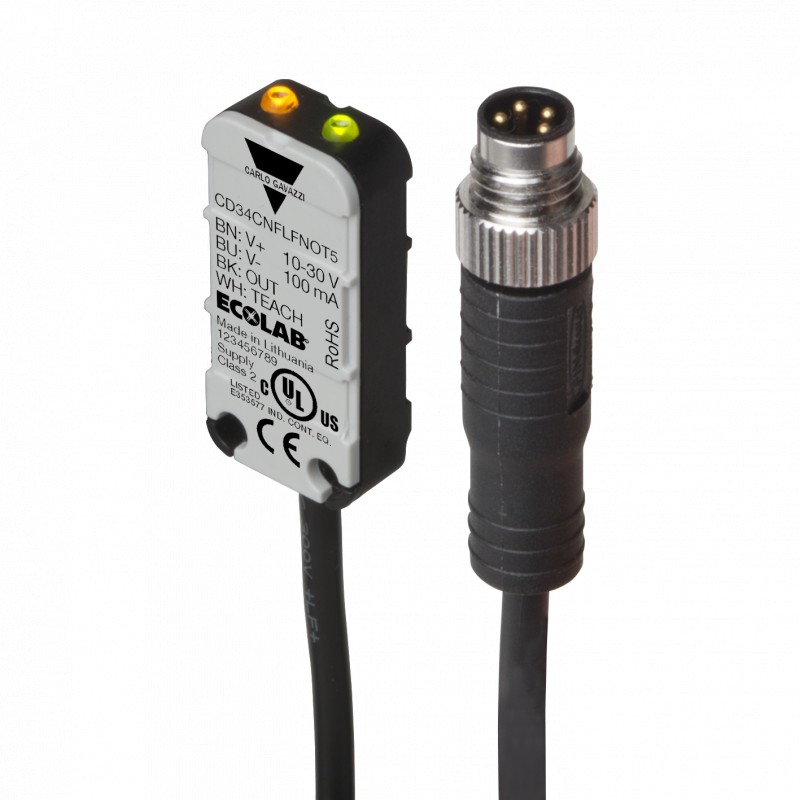

CD34CNFLFNOT5 CARLO GAVAZZI Connection: M8 Plug DC, Material: Plastic, Housing: Rectangular, Sensing range: ..
CD34CNFLFNOT5
CARLO GAVAZZI
Connection: M8 Plug DC, Material: Plastic, Housing: Rectangular, Sensing range: up to 6 mm, Output: DC NPN, System: Sensor, Housing: 34 x 16 x 8 mm, Sensing range: Liquid Level Detection, Material: PC/PBT
Level probe capacitive rectangular DC, to liquids of aqueous base, connection Pigtail cable
Capacitive Level Sensor, Flush mountable, Water-based Liquids, Power Supply 10-30VDC, NPN Output, N.O, M8 Pig-tail PVC, Housing 8 x 16 x 34 mm, ECOLAB, IP65, IP66, IP67, IP68 and IP69K
Sensors > Capacitive proximity switch
Sensors > Capacitive Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Width sensor (EF007094) | 16 mm |
| Height of sensor (EF007283) | 8 mm |
| Length of sensor (EF007334) | 34 mm |
| Diameter sensor (EF007111) | 0 mm |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Switching distance (EF003647) | 0 mm |
| Suitable for safety functions (EF001597) | No |
| Type of switch function (EF003963) | Normally open contact |
| Type of switching output (EF003962) | NPN |
| Type of electric connection (EF003961) | Connector M8 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected semiconductor outputs (EF003951) | 1 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Type of actuation (EF006949) | Other |
| Type of interface (EF006977) | None |
| Type of interface for safety communication (EF003956) | None |
| Construction type housing (EF004008) | Cuboid |
| Coating housing (EF001601) | Other |
| Cascadable (EF000507) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Max. output current at protected output (EF004035) | 100 mA |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 12 V |
| Voltage type (EF000187) | DC |
| Switching frequency (EF003587) | 10 Hz |
| With monitoring function downstream switching devices (EF004052) | No |
| With status indication (EF001602) | Yes |
| Housing material (EF001596) | Plastic |
| Compression-resistant (EF007106) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| CD34CNFLFNOT5 CD34CNFLFNOT5 EN_CD34CNFLFNCP2.pdf | 880 Kbytes |
|
