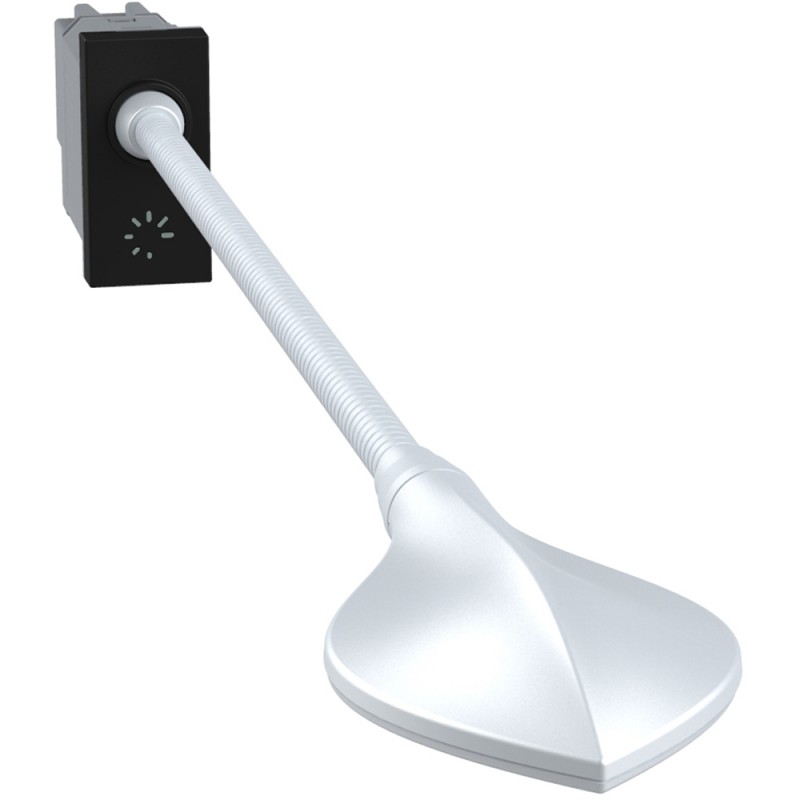

YD4362 BTCINO LW-LAMP READING 230V 1M DK
YD4362
BTICINO
LW-LAMP READING 230V 1M DK
Light Now Reading Lamp - 1 module - Dark
Luminaires > Ceiling-/wall luminaire
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲
Lamps - 230 Vac - It is installed on the headboard of the bed allowing directional lighting - It is equipped with a 31cm hose that allows the lighting to be oriented - The light intensity is adjustable by the prolonged pressure of the integrated on/off mechanism - It can also be controlled from another mechanism and, if necessary, it is possible to disable the integrated mechanism by pressing it for 30 seconds - LED lamp, consumption 3 W, luminous flux 110 lumens (equivalent to 15 W of incandescence) - Duration: 40,000 hours approx. - Install in boxes of depth 50mm or more - To be combined with support and decorative plate - 1 module - Dark.
| Suitable for wall mounting | Yes |
|---|---|
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for recessed mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for line configuration | No |
| High for workspaces according to EN 12464-1 | No |
| Lamp | Non-interchangeable LED |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lamp holder | Other |
| Housing material | Plastic |
| Housing protection | No treatment |
| Housing color | Grey |
| Cover material | Plastic, opal |
| Grid Type | Mate |
| Type of voltage | AC |
| Nominal Voltage | 230-250 V |
| Nominal current | 15-25 mA |
| Type of control equipment | Voltage-controlled LED equipment |
| Interchangeable control equipment | No |
| Adjustable | No |
| Regulation 0-10V | No |
| Regulation 1-10V | No |
| DALI Regulation | No |
| DALI-2 Regulation | No |
| DMX regulation | No |
| DSI regulation | No |
| Manufacturer's own light dimming | No |
| Modulation control of mains voltage | No |
| Phase Down Cutoff Control | No |
| Upward phase cut-off control | No |
| Programmable control | No |
| Integrated potentiometer control | No |
| RF Regulation | No |
| Touch and Dim regulation | No |
| Zigbee regulation | No |
| Push-button regulation | No |
| Light distributor | Lens/Optics/Diffuser Panel |
| Light distribution | Symmetrical |
| Beam Angle | Extremely wide <gt/> beam 80° |
| Chromatic consistency (MacAdam's ellipse) | SDCM1 |
| Light output | Direct |
| Degree of protection (IP), rear | IP40 |
| Impact resistance | IK04 |
| Protection class according to IEC 61140 | none |
| Luminaire with limited surface temperature "mark D" according to EN 60598-2-24 | No |
| Rated ambient temperature according to IEC 62722-2-1 | -5-35 °C |
| Luminous flux in emergency mode | 247 lm |
| Suitable for emergency lighting | Yes |
| With motion detector | No |
| With light sensor | No |
| Luminaire cover with heat-insulating material | No |
| With ventilation slots | Yes |
| Suitable for lamp power | 1.5-3 W |
| Luminous efficacy | 0-0 lm/W |
|---|---|
| Max. system power | 3.3 W |
| Nominal luminous flux according to IEC 62722-2-1 | 247-247 lm |
| Light Color | White |
| Color Temperature | 4000-5500 K |
| CRI colour rendering index | 80-89 (Class 1B) |
| Constant luminous flux regulation | No |
| Width | 22.5 mm |
| Height/Depth | 45 mm |
| Longitude | 375 mm |
| Installation Length | 45 mm |
| Mounting width | 22.5 mm |
| Mounting height/depth | 45 mm |
| Type of wiring | Terminal |
| Conductor cross-section | 1.5 mm² |
| Connection Method | Screw-on terminal |
| Photobiological safety according to EN 62471 | Other |
| Connectable conductor cross-section | 1.5-2.5 mm² |
| Light intensity | 0-0 cooldown |
| Adjustable light color | No |
| Adjustable luminous flux | No |
| Adjustable beam angle | No |
| Bluetooth operated | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| frequency | 50-60 Hz |
| Standby consumption | 137 mA |
| Neutral Mandatory | No |
| RAL number | 9011 |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Connection Cable Type | Flexible or rigid |
| With electrical outlet | No |
| Equipped with waterproof plate protection | No |
| With signal lamp | No |
| With remote control | No |
| Maximum cable entry diameter | 2.5 mm |
| Distance between vertical clamping centers | 3-3.2 mm |
| Distance between horizontal clamping centers | 3.5-3.7 mm |
| Cable Holder | Cable glands |
| Circuit breaker | No |
| Control Mode | Wired |
| Addressable | No |
| Connected Object | No |
| Programming medium | Not applicable |
| With voice command | No |
| Programmable | No |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| Product usage function | Lighting management |
| Feature Name | Feature Value |
|---|---|
| Conductor cross section (EF000085) | 1.5 mm² |
| Suitable for ceiling mounting (EF021180) | No |
| Lamp type (EF002423) | LED non-replaceable |
| Emergency power supply integrated (EF005138) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Suitable for surface mounting (EF007793) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Material cover (EF004284) | Plastic opal |
| Compatible with Amazon Alexa (EF014927) | No |
| Light distribution (EF004283) | Symmetric |
| Compatible with Google Assistant (EF014926) | No |
| Light outlet (EF004282) | Direct |
| Built-in height/depth (EF023518) | 45 mm |
| With light sensor (EF001203) | No |
| Max. system power (EF009347) | 3.3 W |
| Colour temperature (EF009346) | 4000 K |
| Nominal current (EF009345) | 15 mA |
| Impact strength (EF004293) | IK04 |
| Dimming DSI (EF012188) | No |
| Protection class according to IEC 61140 (EF000004) | None |
| Height/depth (EF001456) | 45 mm |
| Beam angle adjustable (EF016263) | No |
| Width (EF000008) | 22.5 mm |
| Colour of light adjustable (EF016261) | No |
| Luminous flux adjustable (EF016262) | No |
| Surface protection housing (EF024150) | Untreated |
| Built-in length (EF004265) | 45 mm |
| Degree of protection (IP) (EF005474) | IP40 |
| Voltage type (EF000187) | AC |
| Light distributor (EF012170) | Diffuser |
| With light source (EF005905) | Yes |
| Type of wiring (EF011868) | Ending |
| With movement sensor (EF000197) | No |
| Suitable for emergency lighting (EF004275) | Yes |
| Nominal voltage (EF005127) | 230 V |
| Dimming manufacturer's proprietary system (EF012159) | No |
| Dimming DALI-2 (EF015824) | No |
| Suitable for light line configuration (EF004274) | No |
| IFTTT support available (EF011072) | No |
| Dimming phase cut-on (leading edge) (EF012162) | No |
| Dimming programmable (EF012163) | No |
| Dimming RF (EF012164) | No |
| Dimming Sine Wave Reduction (EF012165) | No |
| Dimming Touch and Dim (EF012166) | No |
| Dimming Zigbee (EF012167) | No |
| Dimming with push-button (EF012168) | No |
| Length (EF001438) | 375 mm |
| Dimming mains voltage modulation (EF012160) | No |
| Dimming phase cut-off (trailing edge) (EF012161) | No |
| Covering of the luminaire with thermally insulating material possible (EF006423) | No |
| Type of grid (EF000282) | Matt |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| Colour rendering index CRI (EF000442) | 80-89 |
| With air slots (EF009372) | Yes |
| Operation by Bluetooth (EF013759) | No |
| Suitable for lamp power (EF000280) | 1.5 W |
| Dimming 0-10 V (EF012152) | No |
| Dimming 1-10 V (EF012153) | No |
| Dimming DALI (EF012154) | No |
| Dimming DMX (EF012155) | No |
| Dimming potentiometer (integrated) (EF012156) | No |
| Dimming LineSwitch (EF012158) | No |
| Suitable for suspended mounting (EF001265) | No |
| Suitable for number of light sources (EF006436) | 1 |
| Lamp holder (EF000048) | Other |
| Built-in width (EF000846) | 22.5 mm |
| Type of control gear (EF000381) | LED driver constant voltage |
| Housing material (EF001596) | Plastic |
| Suitable for workplace according to EN 12464-1 (EF007694) | No |
| Suitable for built-in mounting (EF006760) | Yes |
| Colour of light (EF009350) | White |
| Housing colour (EF000136) | Grey |
| Rated ambient temperature according to IEC 62722-2-1 (EF012090) | -5 °C |
| Colour consistency (McAdam ellipse) (EF011946) | SDCM1 |
| Beam angle (EF008157) | Extreme wide beam >80° |
| Constant light output (CLO) (EF009482) | No |
| Photobiological safety according to EN 62471 (EF011948) | Other |
| Suitable for wall mounting (EF000664) | Yes |
| Exchangeable control gear (EF016286) | No |
