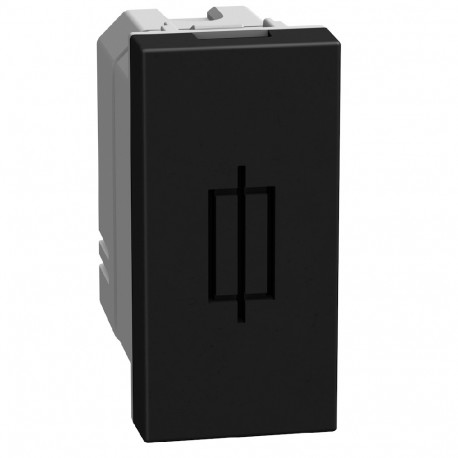

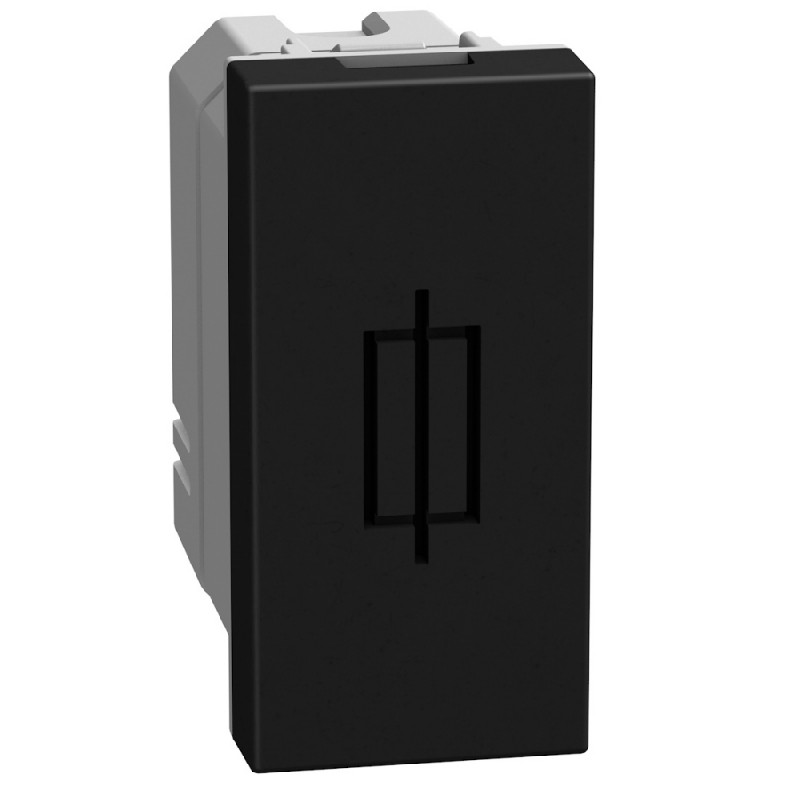

YD4321 BTCINO LW-FUSE HOLDER 13A 1M DK
YD4321
BTICINO
LW-FUSE HOLDER 13A 1M DK
Light Now Fuse Holder - 1 module - Dark
Circuit breakers and fuses > Miniature fuse holder
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲| Connection Method | Other |
|---|---|
| Type of mounting | Front mount |
| Type of current | AC |
| Nominal current | 13 A, 10-13 A |
| Nominal voltage | 250 V |
| Miniature Fuse Dimensions | 6.3x32 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 39 mm |
| Installation Depth | 31 mm |
| Impact resistance | IK04 |
| Protection Class (IP) | IP20 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
|---|---|
| Nominal Voltage | 230-250 V |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Colour | Black |
| RAL number | 9011 |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC |
| Connection type (EF000124) | Other |
| Mounting method (EF000003) | Front mounting |
| Rated current (EF000227) | 13 A |
| Dimensions glass fuse (EF005614) | 6.3x32 mm |
| Rated voltage (EF000228) | 250 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
