BTICINOMATIX MECHANISMSYD4285P BTCINO LW-DATABASE USB TO 1M DK

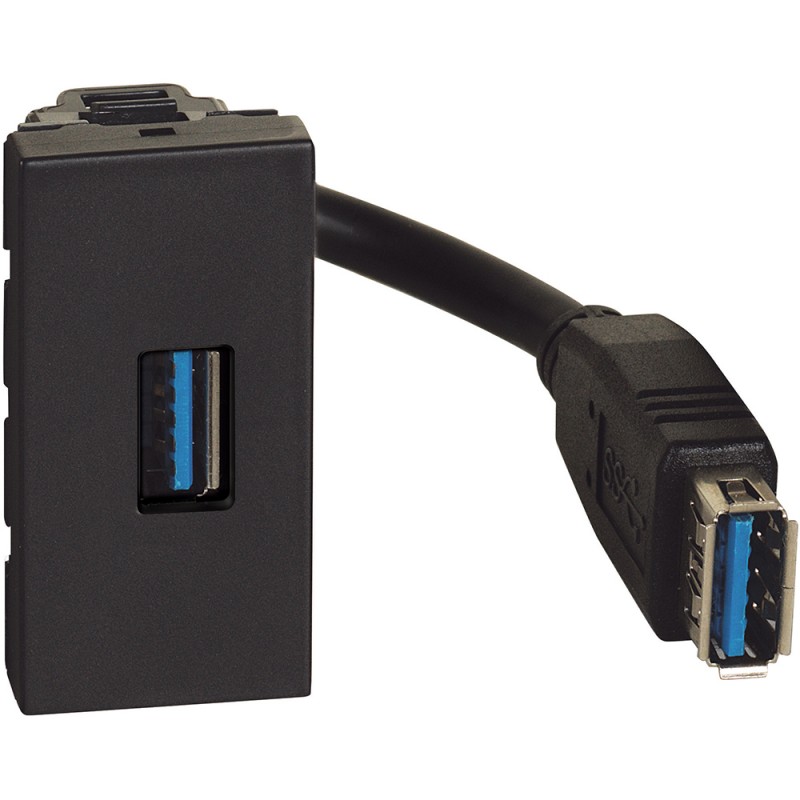

BTICINO YD4285P - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

YD4285P BTCINO LW-DATABASE USB TO 1M DK

Code: YD4285P

Manufacturer: BTICINO

Description:

LW-DATABASE USB TO 1M DK
USB Type A Light Now Database -1 module - Dark

Categories:

  • Data and telecommunication > Data communication connection box copper (twisted pair)
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 25,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Pre-connectorized USB type A databases to connect USB devices (printer, scanner, external hard drive, etc.) - With 150mm cable and 2 female connectors - To be combined with support and decorative plate - 1 module.
Surface mountingNo
Flush mountingYes
Duct InstallationNo
Ground-mounted/underground boxNo
Attachment TypeLock in position
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
Connector TypeUSB
With sockets/couplingsYes
Suitable for the number of sockets/couplings1
categoryOther
ColourBlack
RAL number9011
Connection MethodOther
Shielded plugsNo
Shielded housingNo
Separate grounding connectionNo
With text boxNo
Compatible with third-party coversNo
Separate cable strain reliefNo
Shielding Connection Mount Typenone
Exit AddressStraight
With dust protectionNo
With termination resistanceNo
Protection Class (IP)IP20
Mechanical CodingNo
Color codingNo
Device width22.5 mm
Device height45 mm
Device Depth37 mm
Number of modules (in case of modular design)1
Installation Depth28.5 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Display of markings on the connection terminalsNo
Halogen-freeYes
Antibacterial treatmentNo
Type of cable entry feedthroughsNot applicable
Cable HolderNot applicable

ETIM for YD4285P Data networking products (EC001264)

Feature nameDuct installation (EF002440)
Feature valueNo
Feature nameWith dust cover (EF003893)
Feature valueNo
Feature nameColour coding (EF007758)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWith label space (EF003456)
Feature valueNo
Feature nameShielded buses (EF002444)
Feature valueNo
Feature nameShielded housing (EF002445)
Feature valueNo
Feature nameSeparate earthing connection (EF002500)
Feature valueNo
Feature nameConnection type (EF000124)
Feature valueOther
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameFloor box/subfloor mounted (EF003455)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value1
Feature nameWith terminal resistor (EF005033)
Feature valueNo
Feature nameMechanical coding (EF002910)
Feature valueNo
Feature nameRAL-number (EF000116)
Feature value9011
Feature nameType of connector (EF002935)
Feature valueUSB
Feature nameSurface mounting (EF003681)
Feature valueNo
Feature nameSeparate strain relief (EF002450)
Feature valueNo
Feature nameMounting method shielding connection (EF002497)
Feature valueNone
Feature nameDevice depth (EF008810)
Feature value37 mm
Feature nameCompatible with third-party covers (EF004592)
Feature valueNo
Feature nameWith buses/couplings (EF005043)
Feature valueYes
Feature nameCategory (EF001619)
Feature valueOther
Feature nameDevice width (EF008808)
Feature value22.5 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameOutlet direction (EF000323)
Feature valueStraight
Feature nameColour (EF000007)
Feature valueBlack
Feature nameSuitable for number of connectors (EF001579)
Feature value1
Feature nameFlush-mounted installation (EF007517)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
YD4285P EN_YW4285P.pdf
340 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
