YD4202F BTCINO LW-BASE TV TYPE F 1M DK
YD4202F
BTICINO
10

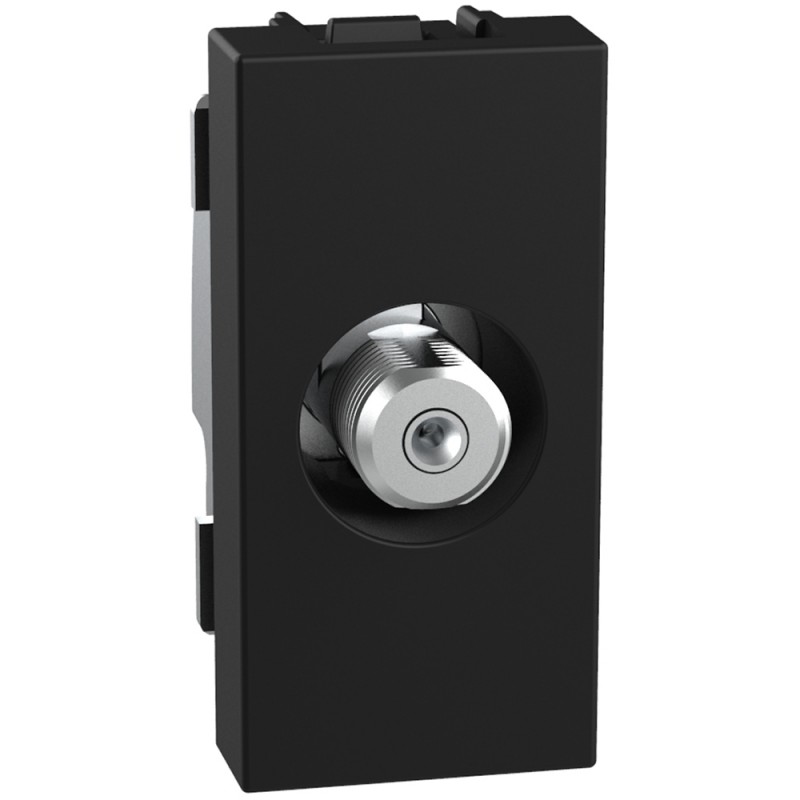

LW-BASE TV TYPE F 1M DK
Light Now TV Base - Type F TV - 1 module - Dark
Antenna and satellite technique > Antenna socket
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲| Model | Through box |
|---|---|
| Wall plug version | SAT |
| DAB+ | No |
| Type of mounting | Recessed mounted (plaster) , Basic element |
| Number of modules (in case of modular design) | 1 |
| Connection attenuation at 860 MHz | 1.5 dB |
| Connection loss at 2150 MHz | 2 dB |
| Number of exit routes | 1 |
| Cable modem suitable | No |
| Step-through attenuation at 860 MHz | 1.5 dB |
| Transmission loss at 2400 MHz | 2 dB |
| TVG Frequency Band | 50-60 MHz |
| Suitable for remote power | No |
| Attachment Type | Hemming |
| Colour | Black |
| RAL number (similar) | 9011 |
| Surface treatment | Varnishing |
|---|---|
| Surface Finish | Mate |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Protection Class (IP) | IP20 |
| Impact resistance | IK04 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 32.5 mm |
| Min. depth of the recessed box | 34.5 mm |
| Installation Depth | 24.5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Display of markings on the connection terminals | No |
| Feature Name | Feature Value |
|---|---|
| Type of socket outlet (EF003497) | SAT |
| Degree of protection (IP) (EF005474) | IP20 |
| Tap loss at 860 MHz (EF000540) | 1.5 dB |
| Material (EF002169) | Plastic |
| DAB+ (EF011633) | No |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Material quality (EF001257) | Thermoplastic |
| Tap loss at 2150 MHz (EF003499) | 2 dB |
| Number of modules (module system) (EF009573) | 1 |
| Min. depth of built-in installation box (EF012278) | 34.5 mm |
| Suitable for cable modem (EF001547) | No |
| Surface protection (EF000139) | Lacquered |
| Suitable for remote power supply (EF001548) | No |
| Through loss at 860 MHz (EF000539) | 1.5 dB |
| Number of outlets (EF000538) | 1 |
| RAL-number (similar) (EF003882) | 9011 |
| Model (EF000010) | Loop-through socket |
| Through loss at 2150 MHz (EF003500) | 2 dB |
| Cover (EF000055) | None |
| Device depth (EF008810) | 32.5 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| TV frequency band (EF017377) | 50 MHz |
| Device width (EF008808) | 22.5 mm |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Black |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| YD4202F EN_YW4202D.pdf | 649 Kbytes |
|
