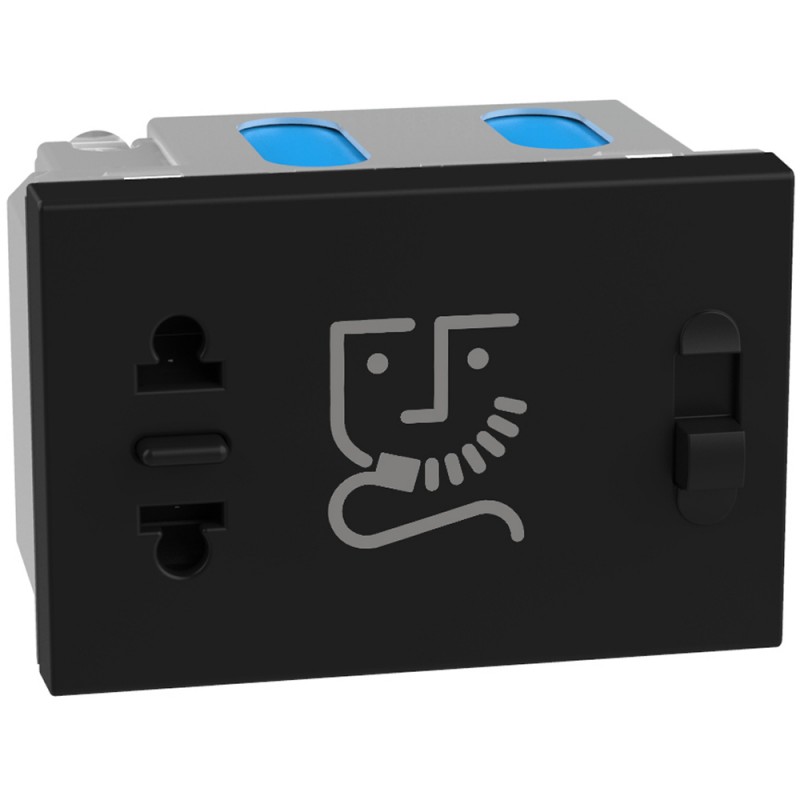

BTICINO YD4177 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

YD4177 BTCINO LW-BASE SHAVING 230V 3M DK

Code: YD4177

Manufacturer: BTICINO

Description:

LW-BASE SHAVING 230V 3M DK
Light Now Shaver Base - 230V~ - 115/230V~ - 3 modules - Dark

Categories:

  • Domestic switching devices > Razor socket outlet
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 148,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Shaver bases - With insulation transformer - Input 230Vac - Output 115 Vac/230Vac - Protected against overvoltages and short circuits - Includes European and American figures - Equipped with a voltage selector 115Vac - 230Vac - 3 modules - Dark
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Number of modules (in case of modular design)3
With flip-top lidNo
Switchable voltageYes
Nominal voltage, low value115 V
Nominal voltage, high value230 V
Rated Output Power20 VA
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
ColourBlack
RAL number (similar)9011
TransparentYes
Device width67.5 mm
Device height45 mm
Device Depth58 mm
With built-in installation boxNo
Min. depth of the recessed box54 mm
Installation Depth44 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Display of markings on the connection terminalsNo
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Label Space/Print AreaNo

ETIM for YD4177 Domestic wiring accessories and controls (EC000186)

Feature nameWith built-in installation box (EF025086)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9011
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameNominal voltage high value (EF007995)
Feature value230 V
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameDevice depth (EF008810)
Feature value58 mm
Feature nameNominal voltage low value (EF007996)
Feature value115 V
Feature nameVoltage reversible (EF008055)
Feature valueYes
Feature nameNumber of modules (module system) (EF009573)
Feature value3
Feature nameTransparent (EF006243)
Feature valueYes
Feature nameRated output (EF016709)
Feature value20 VA
Feature nameMin. depth of built-in installation box (EF012278)
Feature value54 mm
Feature nameDevice width (EF008808)
Feature value67.5 mm
Feature nameAssembly arrangement (EF000005)
Feature valueInsert for modular wiring accessories
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameWith hinged lid (EF000117)
Feature valueNo
