YD4033 BTCINO LW-PULS HANDLE 1P 10A 1M DK
YD4033
BTICINO
10

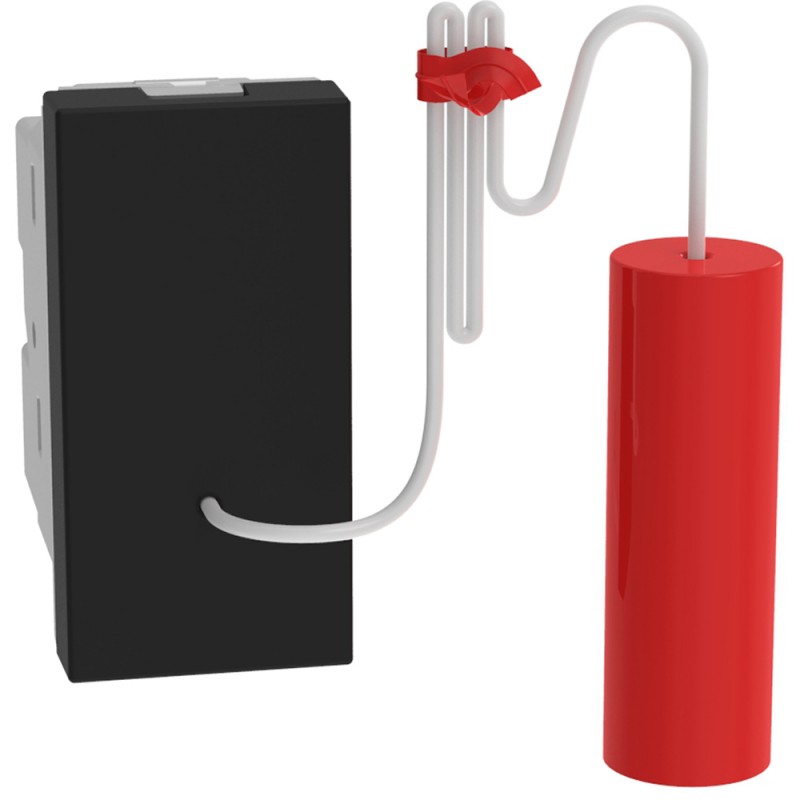

LW-PULS HANDLE 1P 10A 1M DK
Light Now- 10A - Dark - 1 module pull button
Domestic switching devices > Push-switch button
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲| Type of mounting | Basic element, Recessed mounted (plaster) |
|---|---|
| Model | Single push button |
| Type of operation | Tractor cable |
| Mode of action | Electromechanical |
| Number of Normally Closed Contacts | 0 |
| Number of contacts normally opened | 1 |
| Number of investor contacts | 0 |
| Number of rotating contacts | 0 |
| Contactless Type | No |
| Number of rocker arms | 1 |
| Number of modules (in case of modular design) | 1 |
| Number of poles | 1 |
| Nominal Voltage | 250 V |
| Nominal current | 10 A |
| With light | No |
| With light source | No |
| With signal lamp | No |
| Monitoring contacts | No |
| Connection Method | Screw-on terminal |
| Attachment Type | Lock in position |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Colour | Black |
|---|---|
| RAL number (similar) | 9011 |
| Transparent | Yes |
| Label Space/Print Area | No |
| Overprinting | none |
| Suitable for protection grade (IP) | IP20 |
| Impact resistance | IK04 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 35 mm |
| Min. depth of the recessed box | 37 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Installation Depth | 27 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwed terminal |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Type of fastening (EF002442) | Engage (snap) |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 1 |
| Contactless type (EF015811) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Transparent (EF006243) | Yes |
| Compatible with Amazon Alexa (EF014927) | No |
| Number of poles (EF001391) | 1 |
| Compatible with Google Assistant (EF014926) | No |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 37 mm |
| Surface protection (EF000139) | Lacquered |
| With light source (EF005905) | No |
| RAL-number (similar) (EF003882) | 9011 |
| Model (EF000010) | Single push button |
| Imprint (EF000131) | None |
| Operating principle (EF004139) | Electromechanical |
| Number of contacts as change-over contact (EF008257) | 0 |
| With signal lamp (EF000198) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 35 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Feedback-signal contact (EF001181) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| IFTTT support available (EF011072) | No |
| Number of revolving contacts (EF015810) | 0 |
| Assembly arrangement (EF000005) | Basic unit |
| Device width (EF008808) | 22.5 mm |
| Device height (EF008809) | 45 mm |
| Rated current (EF000227) | 10 A |
| Colour (EF000007) | Black |
| Method of operation (EF000006) | Pull cord |
| Number of rockers (EF003816) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| YD4033 EN_YW4033.pdf | 494 Kbytes |
|
