BTICINOYD4027CM2N BTCINO LWwN-PERS SWITCH 2M DK

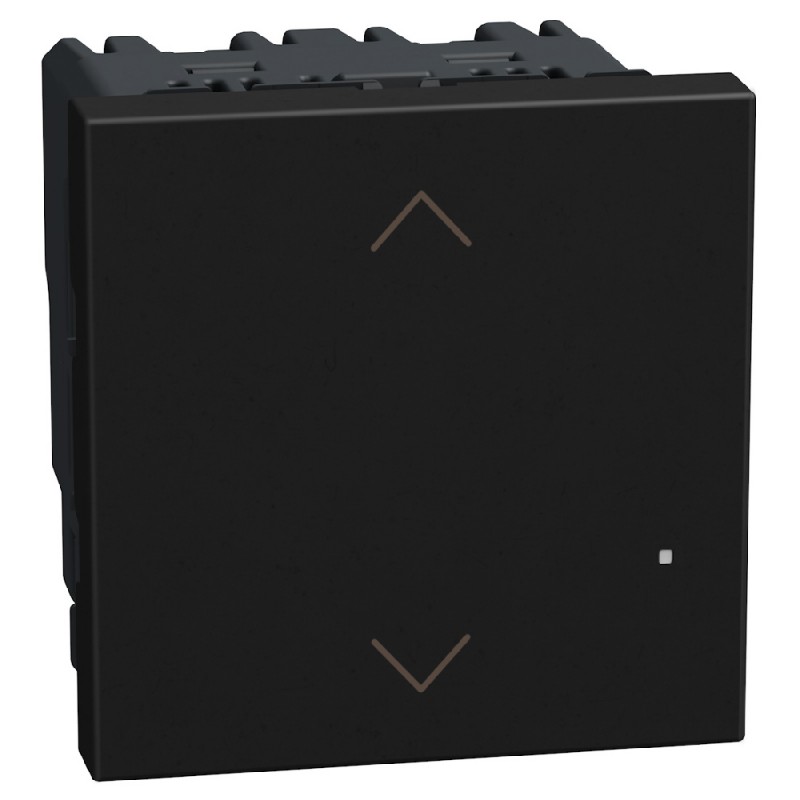

BTICINO YD4027CM2N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

YD4027CM2N BTCINO LWwN-PERS SWITCH 2M DK

Code: YD4027CM2N

Manufacturer: BTICINO

Description:

LWwN-PERS SWITCH 2M DK
Light Now w/Netatmo connected shutter command - 2 modules - Dark

Categories:

  • Installation bus systems > Shutting actuator for bus system
  • BTICINO

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 107,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

The connected shutter command allows control of any shutter motor with electronic or mechanical limit switch (lower/raise/stop) - Can be controlled from one or more wireless commands - Requires installation of the Starter Pack - Must be completed with a support and a decorative plate from the Light Now series
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemYes
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsZigbee
Bidirectional Radio FrequencyYes
Type of mountingRecessed mounted (plaster)
Width in number of modular spaces2
With bus connectionNo
Detachable bus moduleNo
Local Operation/Manual OperationYes
With LED indicatorYes
Number of Entries4
Switching Current (Resistive)2 A
Max. switching power500 W
Max. number of Venetian blind outlets1
With switch functionYes
Type of currentAC
Protection Class (IP)IP20
Min. depth of the recessed box50 mm
Width45 mm
Height45 mm
Depth44 mm
Installation Depth33 mm
Impact resistanceIK04
Operating Temperature5-45°C
Storage temperature0-45 °C
Nominal Voltage100-240 V
frequency50-60 Hz
Standby consumption2.1 mA
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
ColourBlack
RAL number9011
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals4
Terminal capacity1.5-2.5 mm²
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
With voice commandYes
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
Product usage functionShutter management
App NameHome + Control
Programming mediumSmartphone apps

ETIM for YD4027CM2N Installation bus systems (EC001330)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameType of current (EF000143)
Feature valueAC
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameWith switch function (EF004698)
Feature valueYes
Feature nameSwitching current (resistive) (EF001741)
Feature value2 A
Feature nameBus module detachable (EF009766)
Feature valueNo
Feature nameMax. number of venetian-blind outputs (EF001740)
Feature value1
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameMin. depth of built-in installation box (EF012278)
Feature value50 mm
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueYes
Feature nameMax. switching power (EF001503)
Feature value500 W
Feature nameOther bus systems (EF003811)
Feature valueZigbee
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes
Feature nameNumber of inputs (EF000318)
Feature value4

DATASHEET - PDF

Title
Size
Type
YD4027CM2N EN_YW4027CM2N.pdf
231 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
