BTICINODOMOTICS MY HOMEY4652M3 BTCINO LWMH-COMMAND 3 FUNCTIONS 3 M

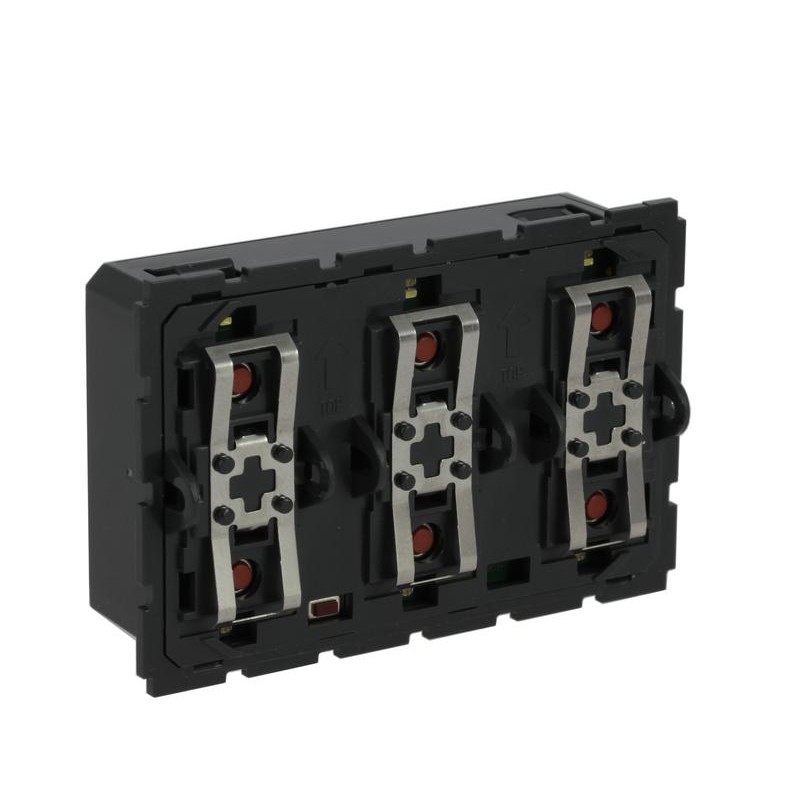

BTICINO Y4652M3 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

Y4652M3 BTCINO LWMH-COMMAND 3 FUNCTIONS 3 M

Code: Y4652M3

Manufacturer: BTICINO

Description:

LWMH-COMMAND 3 FUNCTIONS 3 M
Light Now MYHOME Command 3 functions, 3 modules

Categories:

  • Installation bus systems > Touch sensor for bus system
  • BTICINO > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 78,87 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Command for the management of up to 3 independent functions of on/off, raising / lowering of blinds and the adjustment of adjustable loads. It can also be used as stage control and for floor calling, stair light switching on and lock activation. Manage advanced features for blinds. - 3 modules. It must be completed with 1 or 2 module keys.
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemNo
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsOther
Bidirectional Radio FrequencyNo
Type of mountingRecessed mounted (plaster)
With theft/disassembly protectionNo
With bus connectionYes
Number of Action Points6
Number of buttons6
With LED indicatorYes
With label areaNo
With screenNo
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
ColourOther
TransparentNo
With room temperature controllerNo
With infrared sensorNo
Protection Class (IP)IP20
Min. depth of the recessed box55 mm
Width66 mm
Height45 mm
Depth24 mm
Impact resistanceNot applicable
Operating Temperature5-35 °C
Storage temperature-10-70 °C
frequency0-0 Hz
Display of markings on the connection terminalsYes
Halogen-freeNo
Antibacterial treatmentNo
Terminal capacity0.34-2.5 mm²
Connection Cable TypeFlexible or rigid
Label Space/Print AreaNo
AddressableYes
Contains battery and/or accumulatorNo
Connected ObjectNo
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxNo
Product usage functionLighting management

ETIM for Y4652M3 Installation bus systems (EC000672)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameWith room temperature controller (EF001136)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameNumber of actuation points (EF007592)
Feature value6
Feature nameMin. depth of built-in installation box (EF012278)
Feature value55 mm
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameWith IR sensor (EF000535)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith display (EF000458)
Feature valueNo
Feature nameWith bus connection (EF001504)
Feature valueYes
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameNumber of buttons (EF003144)
Feature value6
Feature nameWith label area (EF005040)
Feature valueNo
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameColour (EF000007)
Feature valueOther
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWith anti-theft/dismantling protection (EF003837)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
Y4652M3 EN_Y4652M3.pdf
331 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
