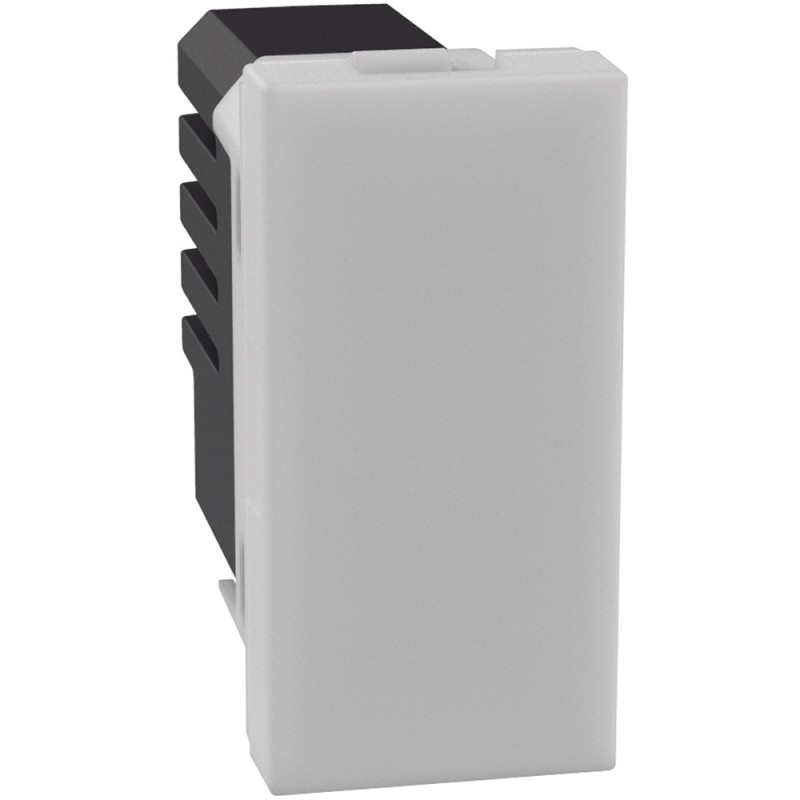

BTICINO Y4381 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

Y4381 BTCINO LW-LED SAFETY LAMP 1M

Code: Y4381

Manufacturer: BTICINO

Description:

LW-LED SAFETY LAMP 1M
LED Safety Light Now Lamp - 1 Module

Categories:

  • Luminaires > Ceiling-/wall luminaire
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 61,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Luminous signalers - LED emergency lamp with automatic ignition in case of lack of mains voltage. 230 Vac 50/60 Hz - consumption 2.5VA (0.1 W) - non-replaceable rechargeable NiMH battery 3.6V 140mAh - full recharge in 48 h - autonomy 2 h - Maximum cable section 1x1.5mm² - luminous intensity 2,400 mcd - emission angle 120° - not removable - To be combined with support and decorative plate - 1 module.
Suitable for wall mountingYes
Suitable for suspended mountingNo
Suitable for ceiling mountingNo
Suitable for recessed mountingYes
Suitable for surface mountingNo
Suitable for line configurationNo
High for workspaces according to EN 12464-1No
LampNon-interchangeable LED
With light sourceYes
Suitable for number of light sources1
Lamp holderOther
Housing materialPlastic
Housing protectionNo treatment
Housing colorGrey
Cover materialPlastic, opal
Grid TypeMate
Type of voltageAC
Nominal Voltage230-250 V
Nominal current15-25 mA
Type of control equipmentVoltage-controlled LED equipment
With control equipmentNo
Interchangeable control equipmentNo
AdjustableNo
Regulation 0-10VNo
Regulation 1-10VNo
DALI RegulationNo
DALI-2 RegulationNo
DMX regulationNo
DSI regulationNo
Manufacturer's own light dimmingNo
Modulation control of mains voltageNo
Phase Down Cutoff ControlNo
Upward phase cut-off controlNo
Programmable controlNo
Integrated potentiometer controlNo
RF RegulationNo
Touch and Dim regulationNo
Zigbee regulationNo
Push-button regulationNo
Light distributorLens/Optics/Diffuser Panel
Light distributionSymmetrical
Beam AngleExtremely wide <gt/> beam 80°
Chromatic consistency (MacAdam's ellipse)SDCM1
Light outputDirect
Degree of protection (IP), rearIP40
Impact resistanceIK04
Protection class according to IEC 61140none
Luminaire with limited surface temperature "mark D" according to EN 60598-2-24No
Rated ambient temperature according to IEC 62722-2-1-5-35 °C
Luminous flux in emergency mode247 lm
Suitable for emergency lightingYes
With motion detectorNo
With light sensorNo
Luminaire cover with heat-insulating materialNo
With ventilation slotsYes
Suitable for lamp power0.1-0.1 W
Luminous efficacy0-0 lm/W
Max. system power0.2 W
Nominal luminous flux according to IEC 62722-2-1247-247 lm
Light ColorWhite
Color Temperature4000-5500 K
CRI colour rendering index80-89 (Class 1B)
Constant luminous flux regulationNo
Width22.5 mm
Height/Depth45 mm
Longitude53 mm
Installation Length45 mm
Mounting width22.5 mm
Mounting height/depth45 mm
Type of wiringTerminal
Conductor cross-section1.5 mm²
Connection MethodScrew-on terminal
Photobiological safety according to EN 62471Other
Connectable conductor cross-section1.5-2.5 mm²
Light intensity0-0 cooldown
Adjustable light colorNo
Adjustable luminous fluxNo
Adjustable beam angleNo
Bluetooth operatedNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
frequency50-60 Hz
Standby consumption137 mA
Neutral MandatoryNo
RAL number9003
Halogen-freeYes
Antibacterial treatmentNo
Connection Cable TypeFlexible or rigid
With electrical outletNo
Equipped with waterproof plate protectionNo
With signal lampNo
With remote controlNo
Maximum cable entry diameter2.5 mm
Distance between vertical clamping centers3-3.2 mm
Distance between horizontal clamping centers3.5-3.7 mm
Cable HolderCable glands
Circuit breakerNo
Control ModeWired
AddressableNo
Connected ObjectNo
Programming mediumNot applicable
With voice commandNo
ProgrammableNo
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo
Product usage functionLighting management

ETIM for Y4381 Luminaires (EC002892)

Feature nameConductor cross section (EF000085)
Feature value1.5 mm²
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameEmergency power supply integrated (EF005138)
Feature valueYes
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameWith control gear (EF007556)
Feature valueNo
Feature nameSuitable for surface mounting (EF007793)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameLight distribution (EF004283)
Feature valueSymmetric
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameLight outlet (EF004282)
Feature valueDirect
Feature nameBuilt-in height/depth (EF023518)
Feature value45 mm
Feature nameWith light sensor (EF001203)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value0.2 W
Feature nameColour temperature (EF009346)
Feature value4000 K
Feature nameNominal current (EF009345)
Feature value15 mA
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameDimming DSI (EF012188)
Feature valueNo
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueNone
Feature nameHeight/depth (EF001456)
Feature value45 mm
Feature nameBeam angle adjustable (EF016263)
Feature valueNo
Feature nameWidth (EF000008)
Feature value22.5 mm
Feature nameColour of light adjustable (EF016261)
Feature valueNo
Feature nameLuminous flux adjustable (EF016262)
Feature valueNo
Feature nameSurface protection housing (EF024150)
Feature valueUntreated
Feature nameBuilt-in length (EF004265)
Feature value45 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameType of wiring (EF011868)
Feature valueEnding
Feature nameWith movement sensor (EF000197)
Feature valueNo
Feature nameSuitable for emergency lighting (EF004275)
Feature valueYes
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameDimming manufacturer's proprietary system (EF012159)
Feature valueNo
Feature nameDimming DALI-2 (EF015824)
Feature valueNo
Feature nameSuitable for light line configuration (EF004274)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDimming phase cut-on (leading edge) (EF012162)
Feature valueNo
Feature nameDimming programmable (EF012163)
Feature valueNo
Feature nameDimming RF (EF012164)
Feature valueNo
Feature nameDimming Sine Wave Reduction (EF012165)
Feature valueNo
Feature nameDimming Touch and Dim (EF012166)
Feature valueNo
Feature nameDimming Zigbee (EF012167)
Feature valueNo
Feature nameDimming with push-button (EF012168)
Feature valueNo
Feature nameLength (EF001438)
Feature value53 mm
Feature nameDimming mains voltage modulation (EF012160)
Feature valueNo
Feature nameDimming phase cut-off (trailing edge) (EF012161)
Feature valueNo
Feature nameCovering of the luminaire with thermally insulating material possible (EF006423)
Feature valueNo
Feature nameType of grid (EF000282)
Feature valueMatt
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameColour rendering index CRI (EF000442)
Feature value80-89
Feature nameWith air slots (EF009372)
Feature valueYes
Feature nameOperation by Bluetooth (EF013759)
Feature valueNo
Feature nameSuitable for lamp power (EF000280)
Feature value0.1 W
Feature nameDimming 0-10 V (EF012152)
Feature valueNo
Feature nameDimming 1-10 V (EF012153)
Feature valueNo
Feature nameDimming DALI (EF012154)
Feature valueNo
Feature nameDimming DMX (EF012155)
Feature valueNo
Feature nameDimming potentiometer (integrated) (EF012156)
Feature valueNo
Feature nameDimming LineSwitch (EF012158)
Feature valueNo
Feature nameSuitable for suspended mounting (EF001265)
Feature valueNo
Feature nameSuitable for number of light sources (EF006436)
Feature value1
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameBuilt-in width (EF000846)
Feature value22.5 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant voltage
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameSuitable for workplace according to EN 12464-1 (EF007694)
Feature valueNo
Feature nameSuitable for built-in mounting (EF006760)
Feature valueYes
Feature nameColour of light (EF009350)
Feature valueWhite
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameRated ambient temperature according to IEC 62722-2-1 (EF012090)
Feature value-5 °C
Feature nameColour consistency (McAdam ellipse) (EF011946)
Feature valueSDCM1
Feature nameBeam angle (EF008157)
Feature valueExtreme wide beam >80°
Feature nameConstant light output (CLO) (EF009482)
Feature valueNo
Feature namePhotobiological safety according to EN 62471 (EF011948)
Feature valueOther
Feature nameSuitable for wall mounting (EF000664)
Feature valueYes
Feature nameExchangeable control gear (EF016286)
Feature valueNo
