BTICINOMATIX MECHANISMSY4380 BTCINO LW-AUTO LED FLASHLIGHT 230V 2M

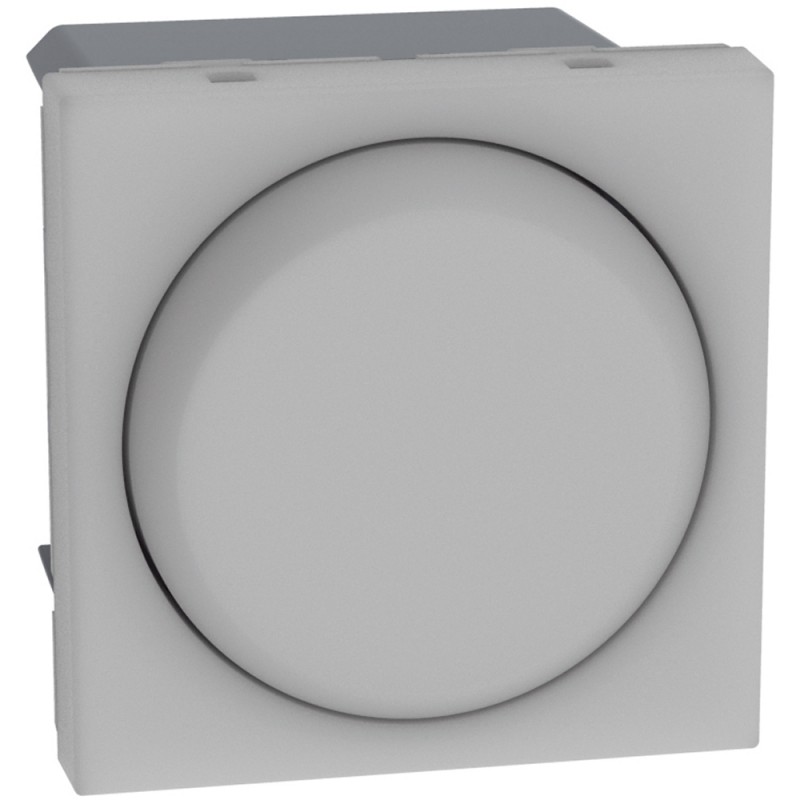

BTICINO Y4380 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

Y4380 BTCINO LW-AUTO LED FLASHLIGHT 230V 2M

Code: Y4380

Manufacturer: BTICINO

Description:

LW-AUTO LED FLASHLIGHT 230V 2M
Removable stand-alone LED flashlight Light Now - 2 modules

Categories:

  • Luminaires > Emergency luminaire
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 58,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Light signalers - High brightness 230 Vac LED flashlight - autonomous operation in the event of a power cut - Push & Pull extraction system - 2 h autonomy - Includes charging base - 2 Ni-Cd batteries - High luminous efficiency white light LED - ON/OFF switch and SPOT button to increase brightness when necessary - Replaceable Ni-MH batteries without memory effect - To be combined with stand and decorative plate - 2 modules.
Type of mountingInstallation
functionEscape route lighting
Suitable for labelling typeOther
Type of indicatorOne side
With pictogramNo
Suitable for standby switchingNo
Suitable for continuous circuitYes
With remote switch connectionNo
With remote controlNo
Emergency function monitoring systemnone
Emergency Power Supply SystemPeripheral unit (single battery)
Battery qualityNimh
LampNon-interchangeable LED
With light sourceYes
Suitable for number of light sources2
Lamp holdernone
Number of light heads1
Housing materialPlastic
RAL number of the case9003
Housing colorGrey
Cover materialPlastic, opal
Type of voltageAC
Nominal Voltage110-230 V
Type of control equipmentNot required
Interchangeable control equipmentNo
Light distributorLens/Optics/Diffuser Panel
Energy efficiency class according to EU2019/215to
Constant luminous flux regulationNo
Protection Class (IP)IP30
Degree of protection (NEMA)Other
Impact resistanceIK04
Protection class according to IEC 61140none
Luminaire with limited surface temperature "mark D" according to EN 60598-2-24No
Rated ambient temperature according to IEC 62722-2-1-5-35 °C
Nominal luminous flux according to IEC 62722-2-10-0 lm
Color Temperature4000-5500 K
Reconnaissance distance5 m
Nominal Operating Time2-2 hrs
Width45 mm
Height/Depth45 mm
Longitude44.5 mm
Mounting width45 mm
Mounting height/depth45 mm
Installation Length33 mm
Type of wiringTerminal
Conductor cross-section1.5 mm²
Connection MethodThreaded connection
Connectable conductor cross-section1.5-2.5 mm²
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Halogen-freeYes
Connection Cable TypeFlexible or rigid
With signal lampNo
Distance between vertical clamping centers3.5-3.7 mm
Distance between horizontal clamping centers3-3.2 mm
Cable HolderCable glands
Cable tie compatible withAll Conduit/Cable Types
Control ModeNot applicable
Contains battery and/or accumulatorYes
AddressableNo
Battery or accumulator (Pack1)Accumulator (rechargeable)
Item Composition (Pack1)Nickel metal hydride
Battery or accumulator (Pack2)Not applicable
Item Composition (Pack2)Not applicable
Connected ObjectNo
Programming mediumNot applicable
With voice commandNo
ProgrammableNo
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo
Product usage functionEmergency lighting

ETIM for Y4380 Luminaires (EC001957)

Feature nameConductor cross section (EF000085)
Feature value1.5 mm²
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMounting method (EF000003)
Feature valueBuilt-in
Feature nameConnection type (EF000124)
Feature valueScrew connection
Feature nameRAL-number housing (EF012502)
Feature value9003
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameBuilt-in height/depth (EF023518)
Feature value45 mm
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameColour temperature (EF009346)
Feature value4000 K
Feature nameRecognition distance (EF008732)
Feature value5 m
Feature nameSuitable for number of light sources (EF006436)
Feature value2
Feature nameNumber of lighting heads (EF004258)
Feature value1
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameMonitoring equipment (EF008091)
Feature valueNone
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueNone
Feature nameLamp holder (EF000048)
Feature valueNone
Feature nameHeight/depth (EF001456)
Feature value45 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameWidth (EF000008)
Feature value45 mm
Feature nameBuilt-in width (EF000846)
Feature value45 mm
Feature nameType of control gear (EF000381)
Feature valueNot required
Feature nameBuilt-in length (EF004265)
Feature value33 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameSuitable for labelling type (EF001277)
Feature valueOther
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameType of indicator (EF001278)
Feature valueSingle-sided
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameRated ambient temperature according to IEC 62722-2-1 (EF012090)
Feature value-5 °C
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameFunction (EF000030)
Feature valueEscape route lighting
Feature nameType of wiring (EF011868)
Feature valueEnding
Feature nameNominal voltage (EF005127)
Feature value110 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameEnergy efficiency class of the light source according to EU regulation 2019/2015 (EF016835)
Feature valueA
Feature nameBattery technology (EF004351)
Feature valueNiMH
Feature nameConstant light output (CLO) (EF009482)
Feature valueNo
Feature nameNominal operation time (EF012518)
Feature value2 h
Feature nameSuitable for standby switching (EF017055)
Feature valueNo
Feature nameLength (EF001438)
Feature value44.5 mm
Feature nameSuitable for continuous circuit (EF017056)
Feature valueYes
Feature nameExchangeable control gear (EF016286)
Feature valueNo
