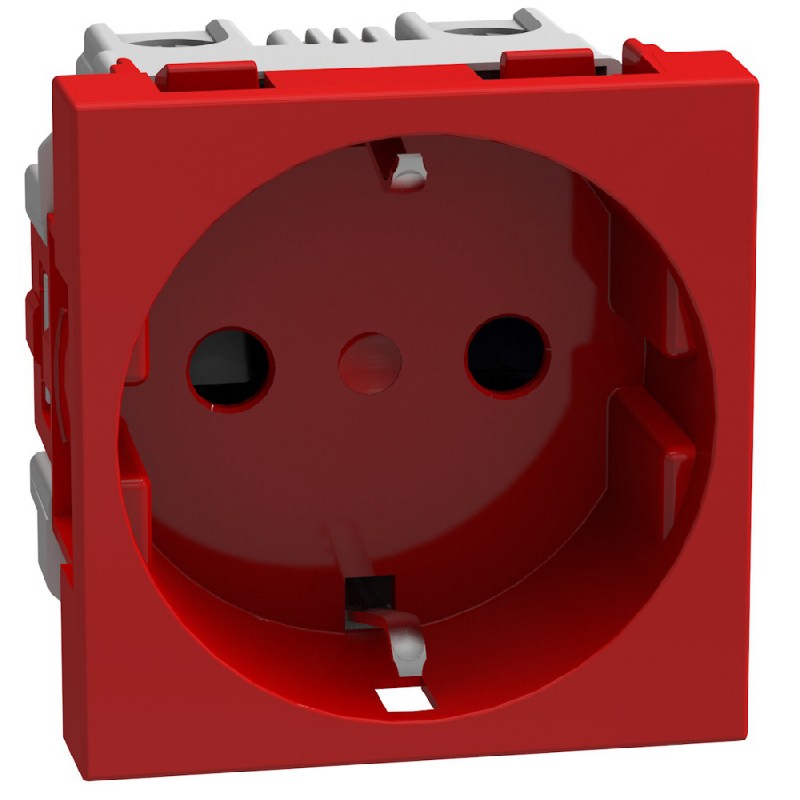

Y4141R BTCINO LW-BASE 2P+T 16A/230V 2M RED
Y4141R
BTICINO
LW-BASE 2P+T 16A/230V 2M RED
2P+T Light Now Base - 16A/250V - screw connection - Red - 2 modules
Domestic switching devices > Socket outlet
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲
2P+T Bases - 16A - 250 Vac - Screw connection - With protective shutters - 2 modules - To combine with support and decorative plate - Red.
| Model | Power socket with protective contact CEE 7/3 (type F) |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Other |
| Number of active (round) contacts | 1 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 1 |
| Phase-separated power outlets | No |
| Number of modules (in case of modular design) | 2 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Screw-on terminal |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Red |
| RAL number (similar) | 3000 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | none |
| Attachment Type | Hemming |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Bright |
| Antibacterial treatment | No |
| With loop function | Yes |
| Number of loops | 1 |
|---|---|
| With on/off switch | No |
| Switching element color | Grey |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| Degree of protection (IP), plug connected | IP20 |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP20 |
| Impact resistance | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 41.5 mm |
| Min. depth of the recessed box | 41.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Complies with UK Building Regulations, Part M | No |
| Installation Depth | 31.5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Display of markings on the connection terminals | No |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Cable Holder | Cable glands |
| Connected Object | No |
| App download platform | Not applicable |
| Programming medium | Not applicable |
| With voice command | No |
| Programmable | No |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| Product usage function | Power Distribution |
| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Nominal current (EF000001) | 16 A |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Special power supply (EF001334) | EV006426 |
| Connection type (EF000124) | Screwed terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | No |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 41.5 mm |
| Imprint/indication (EF003823) | None |
| With hinged lid (EF000117) | No |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| RAL-number (similar) (EF003882) | 3000 |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 0 |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 41.5 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 45 mm |
| With on/off switch (EF000488) | No |
| Device height (EF008809) | 45 mm |
| Colour (EF000007) | Red |
| For heavy conditions according to VDE (EFDE0005) | No |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 1 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Label space/information surface (EF001035) | No |
| Surface finishing (EF006569) | Glossy |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| With function lighting (EF008861) | No |
| Transparent (EF006243) | No |
| Colour of switch operator (EF015518) | Grey |
| Insulated mounting (EF001588) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| Compliant with UK Building Regulations Part M (EFUK0017) | No |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | No |
| Lockable (EF000113) | No |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| Number of loop throughs (EF017971) | 1 |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| Y4141R EN_YW4141.pdf | 479 Kbytes |
|
