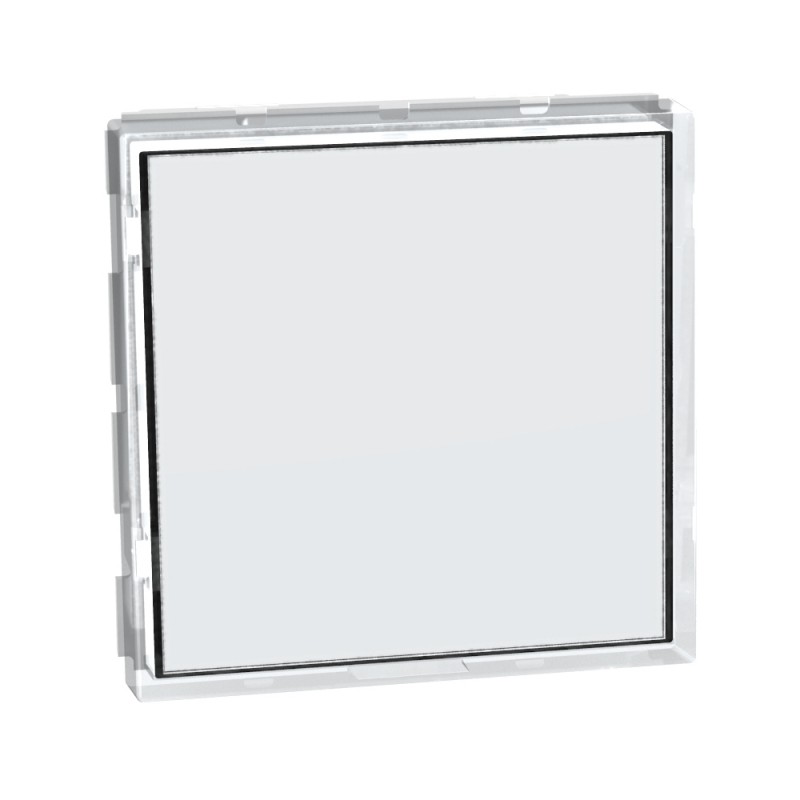

BTICINO Y4040 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

Y4040 BTCINO LW-PULS 10A + LABEL HOLDER.

Code: Y4040

Manufacturer: BTICINO

Description:

LW-PULS 10A + LABEL HOLDER.
Light Now Label Holder Illuminated Push Button - 10A-250V~ - 2 modules

Categories:

  • Domestic switching devices > Push-switch button
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 16,02 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Luminous buttons label holder - supplied with LED lamp - 10A - 250 Vac - To be combined with support and decorative plate - 2 modules.
Type of mountingBasic element, Recessed mounted (plaster)
ModelSingle push button
Type of operationButton
Mode of actionElectromechanical
Number of Normally Closed Contacts0
Number of contacts normally opened1
Number of investor contacts0
Number of rotating contacts0
Contactless TypeNo
Number of rocker arms0
Number of modules (in case of modular design)2
Number of poles1
Nominal Voltage250 V
Nominal current10 A
With lightYes
With light sourceNo
With signal lampNo
Monitoring contactsNo
Connection MethodScrew-on terminal
Attachment TypeLock in position
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishBright
ColourGrey
RAL number (similar)7030
TransparentNo
Label Space/Print AreaNo
Overprintingnone
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Device width45 mm
Device height45 mm
Device Depth38 mm
Min. depth of the recessed box37 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Installation Depth27 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for Y4040 Domestic wiring accessories and controls (EC000029)

Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameContactless type (EF015811)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameWith lighting (EF003829)
Feature valueYes
Feature nameMin. depth of built-in installation box (EF012278)
Feature value37 mm
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith light source (EF005905)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7030
Feature nameModel (EF000010)
Feature valueSingle push button
Feature nameImprint (EF000131)
Feature valueNone
Feature nameOperating principle (EF004139)
Feature valueElectromechanical
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value38 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameNumber of revolving contacts (EF015810)
Feature value0
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valuePush button
Feature nameNumber of rockers (EF003816)
Feature value0
